Home >> Mercury >> 1992 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Block Diagrams

Block Diagrams

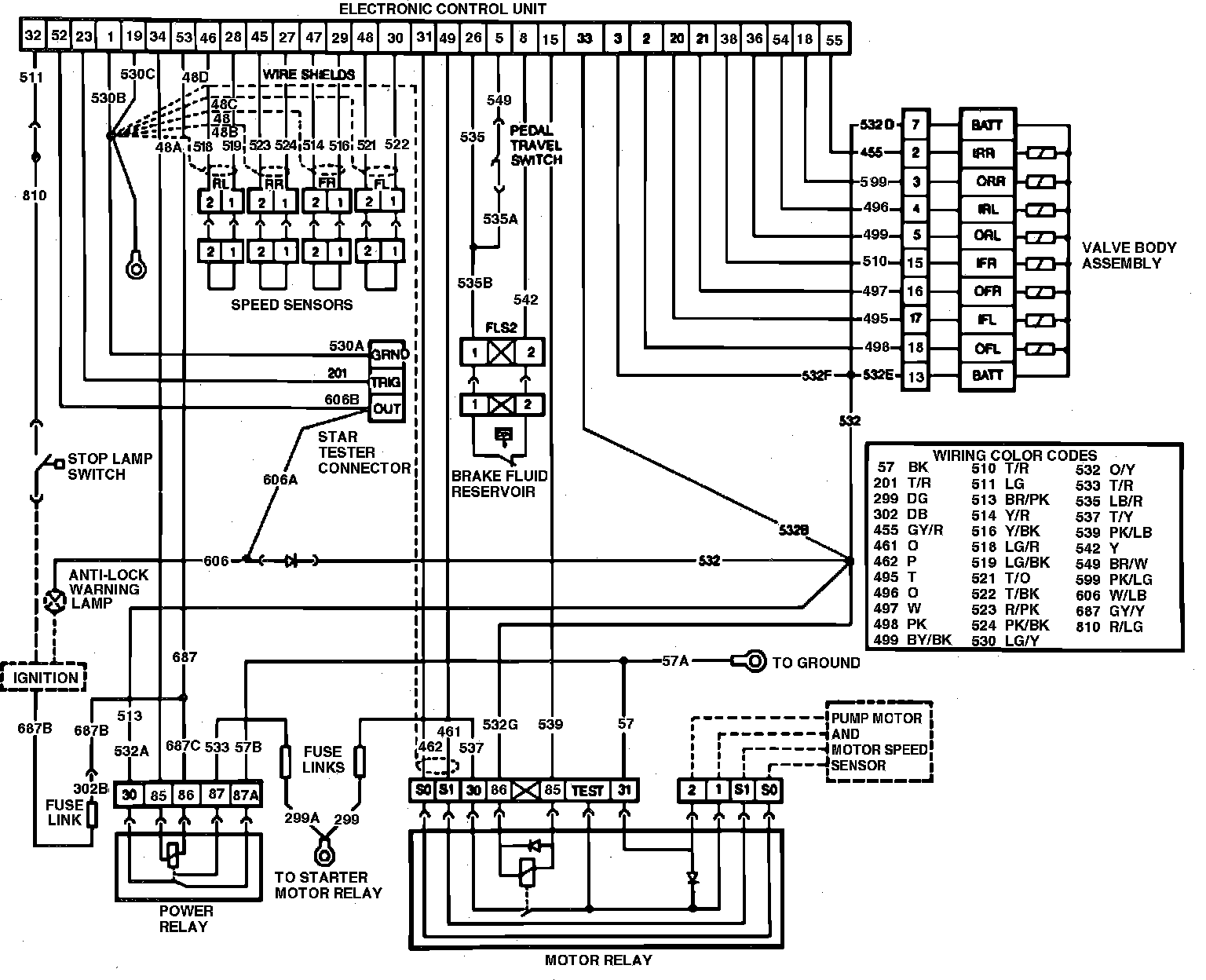

Fig. 6 ABS Wiring Circuit:
