Home
>>
Mercury
>>
1993
>>
Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radiator Cooling Fan Motor Relay
>>
Power Relay
Power Relay

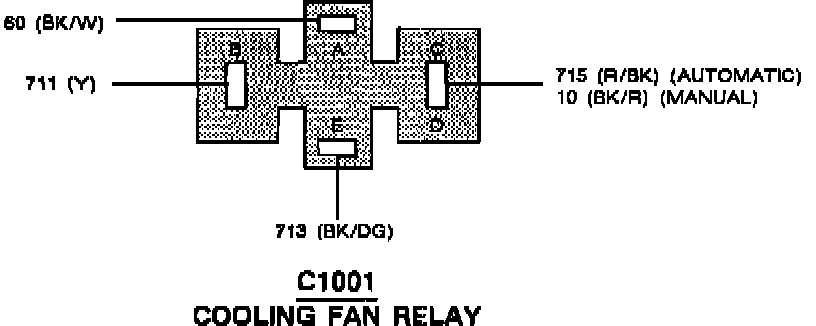

Cooling Fan Relay:
