Home >> Mercury >> 1993 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Engine Compartment Fuses >> Main

Main

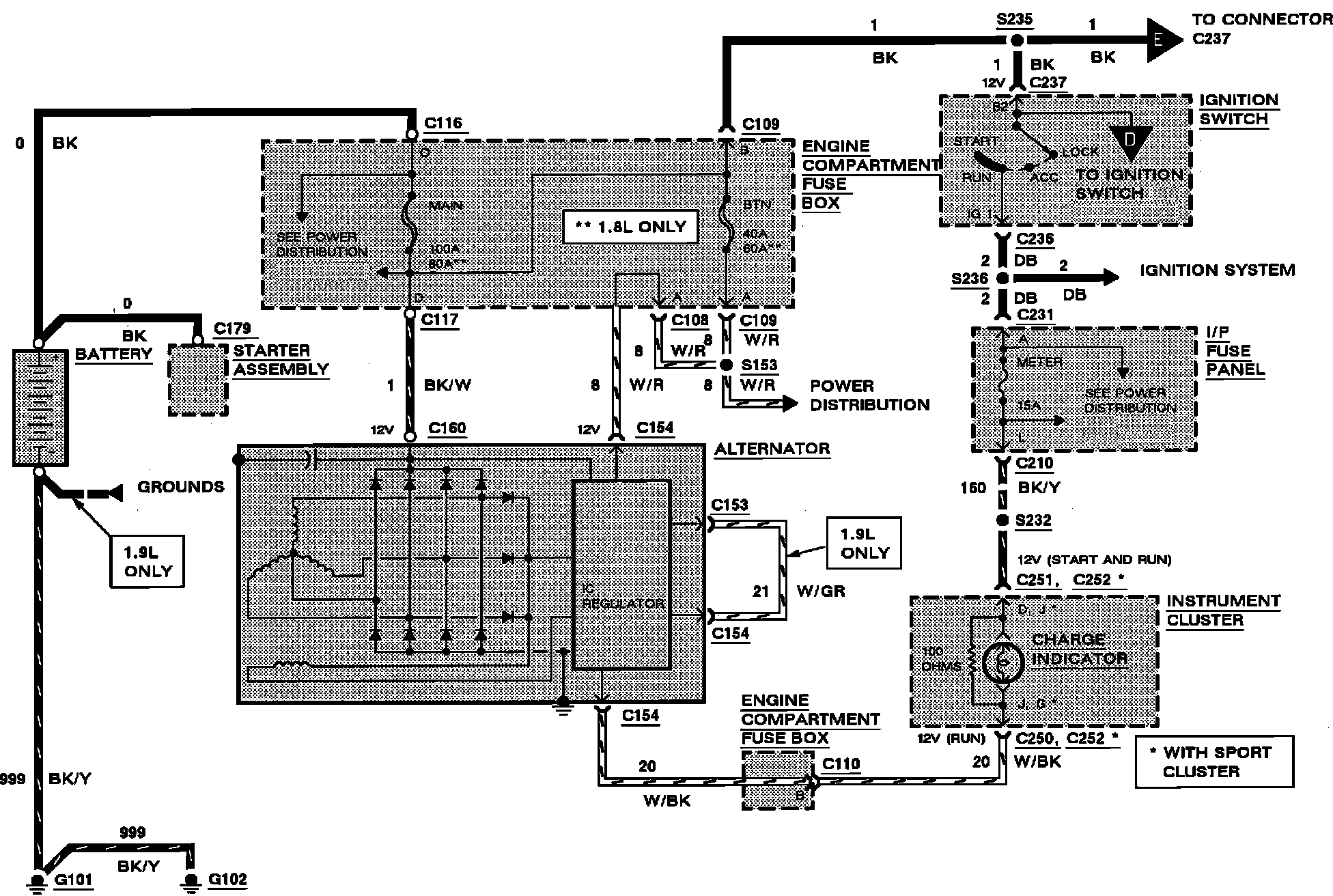

Charging System:

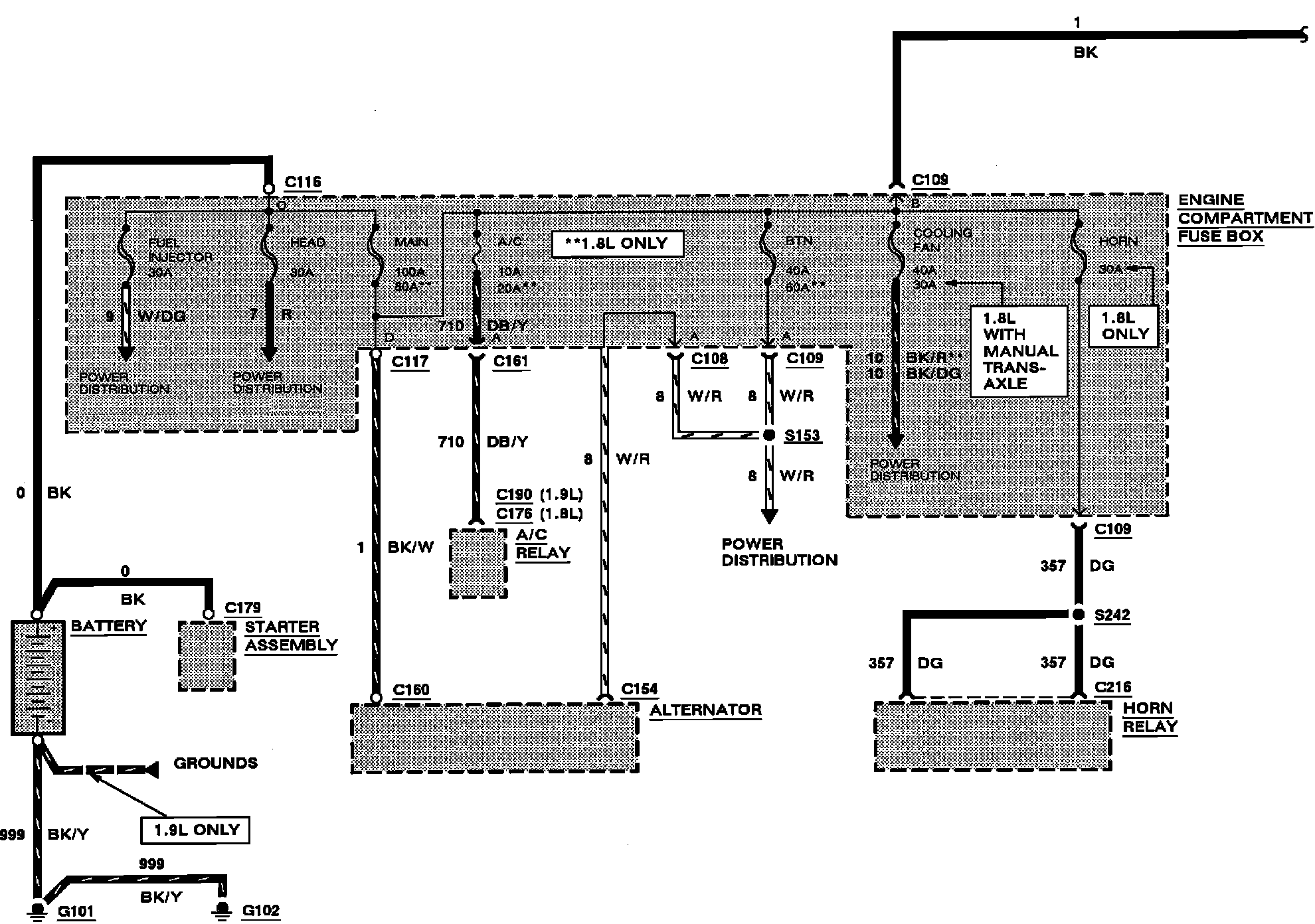

Power Distribution:
