Home >> Mercury >> 1995 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Connector Views >> C417

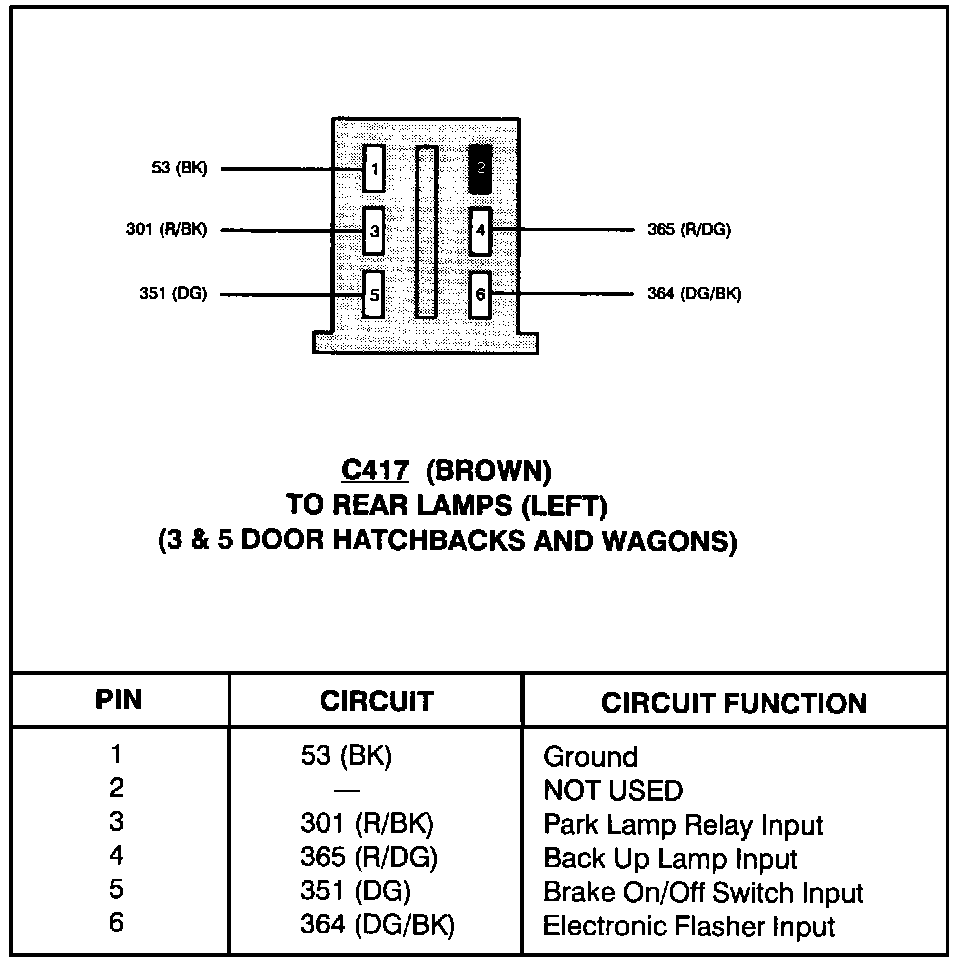

C417

To Rear Lamps (Left) (3 & 5 Door Hatchbacks And Wagons):
