Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercury
>>
2006
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Connector Views
Connector Views

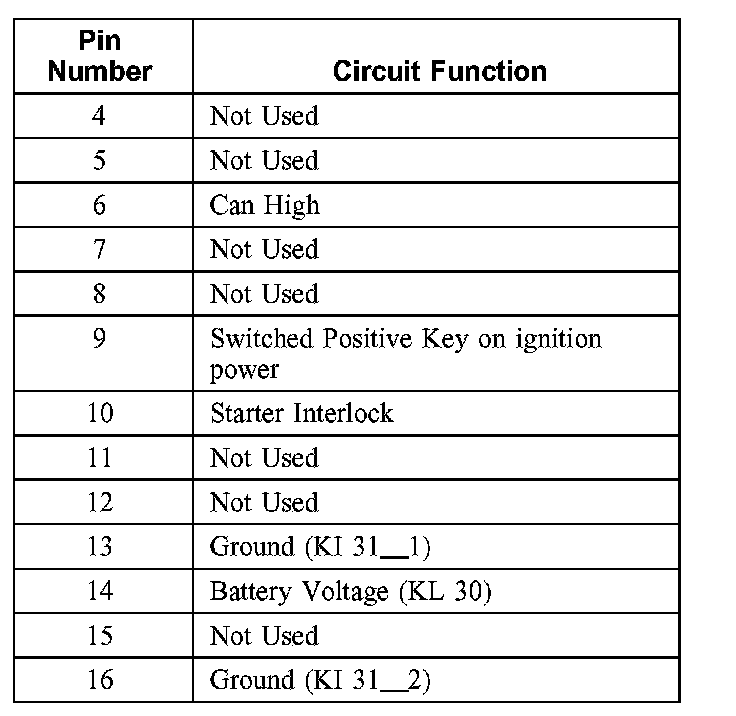

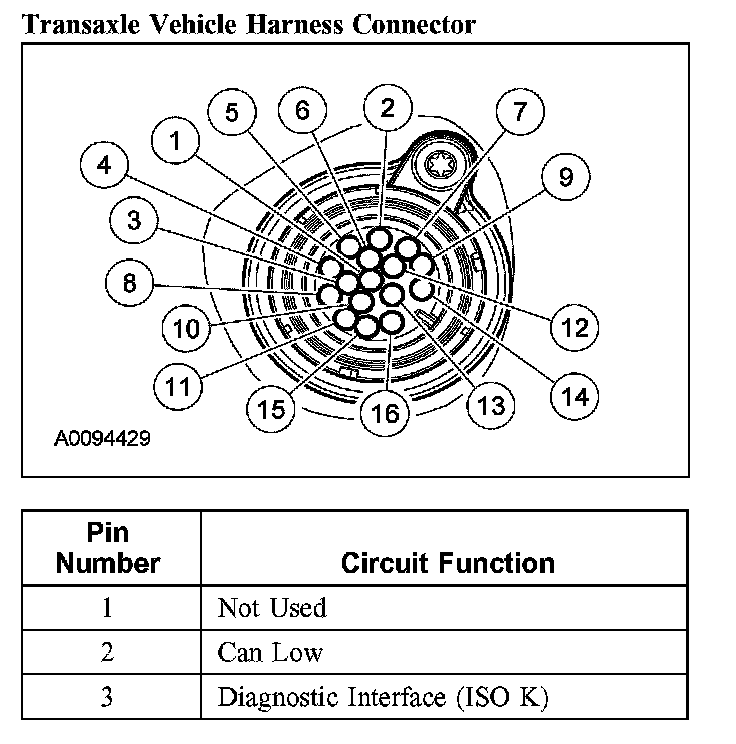

Transaxle Vehicle Harness Connector:
Transaxle Vehicle Harness Connector:
