Home >> Mercury >> 2008 >> Milan FWD L4-2.3L >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Connector Views >> Exterior Rear View Mirror >> RH Side

RH Side

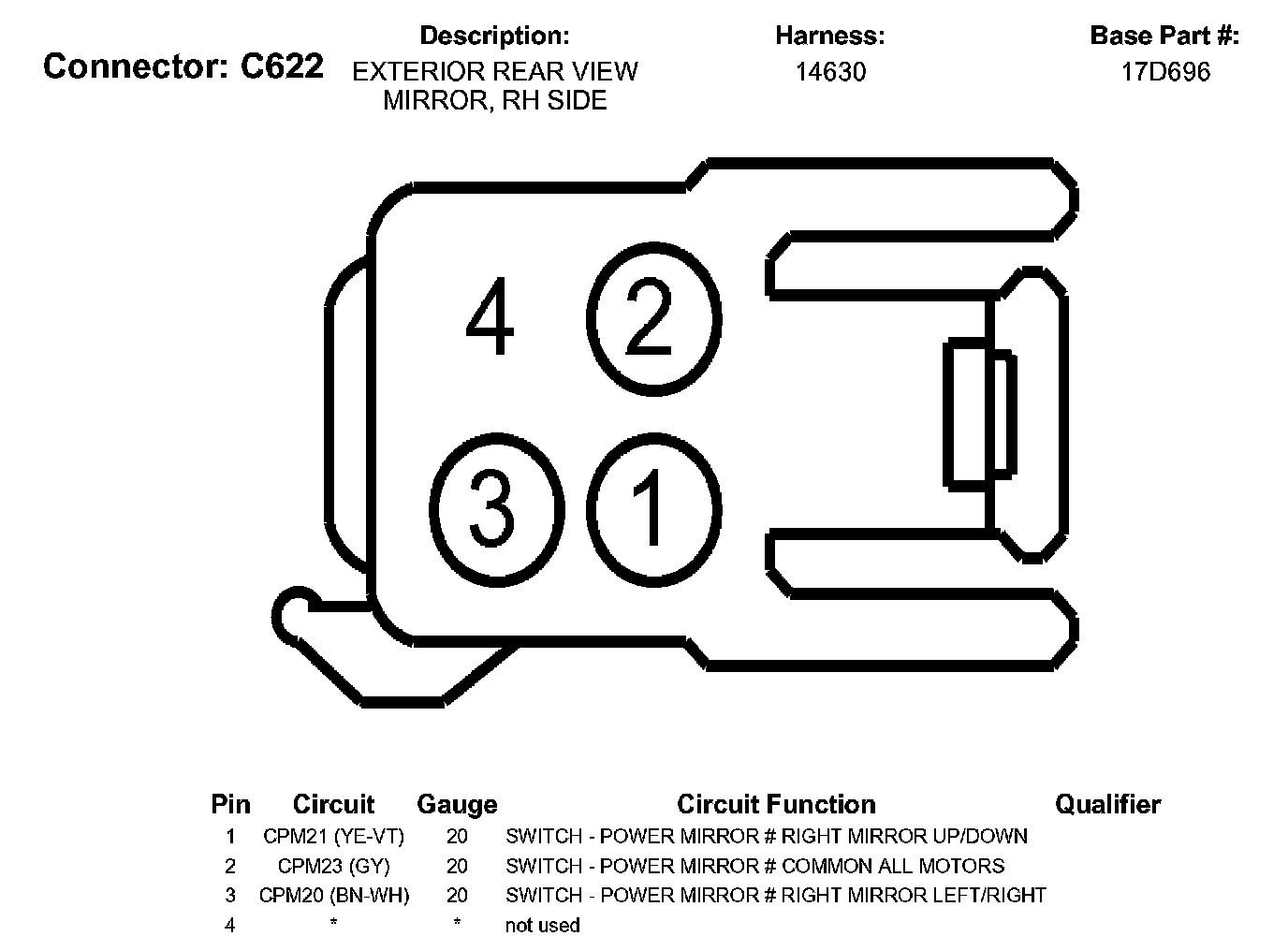

C622:

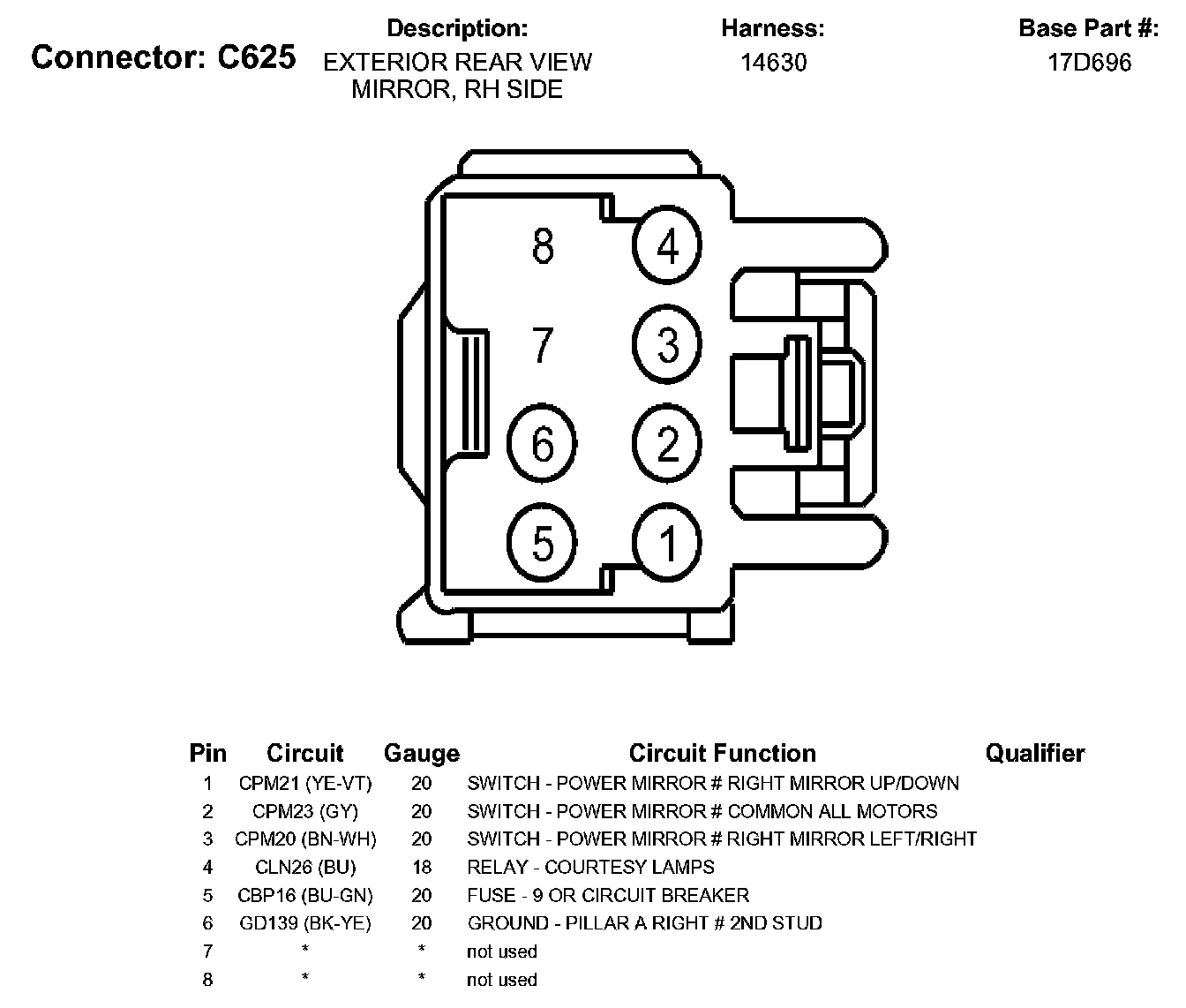

C625:

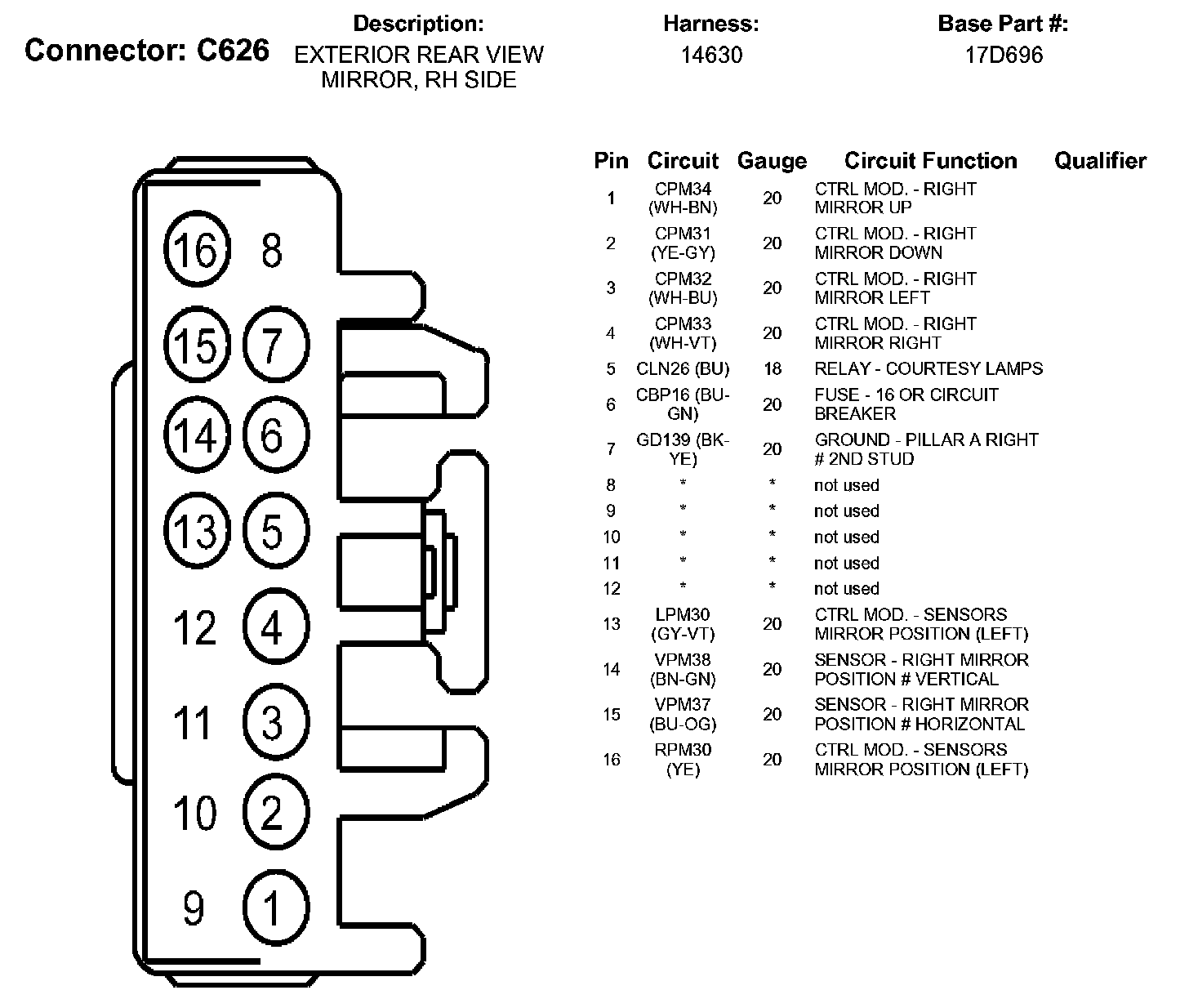

C626:
