Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi Truck
>>
1990
>>
Pickup 4WD V6-2972cc 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Control Module, Transfer Case
>>

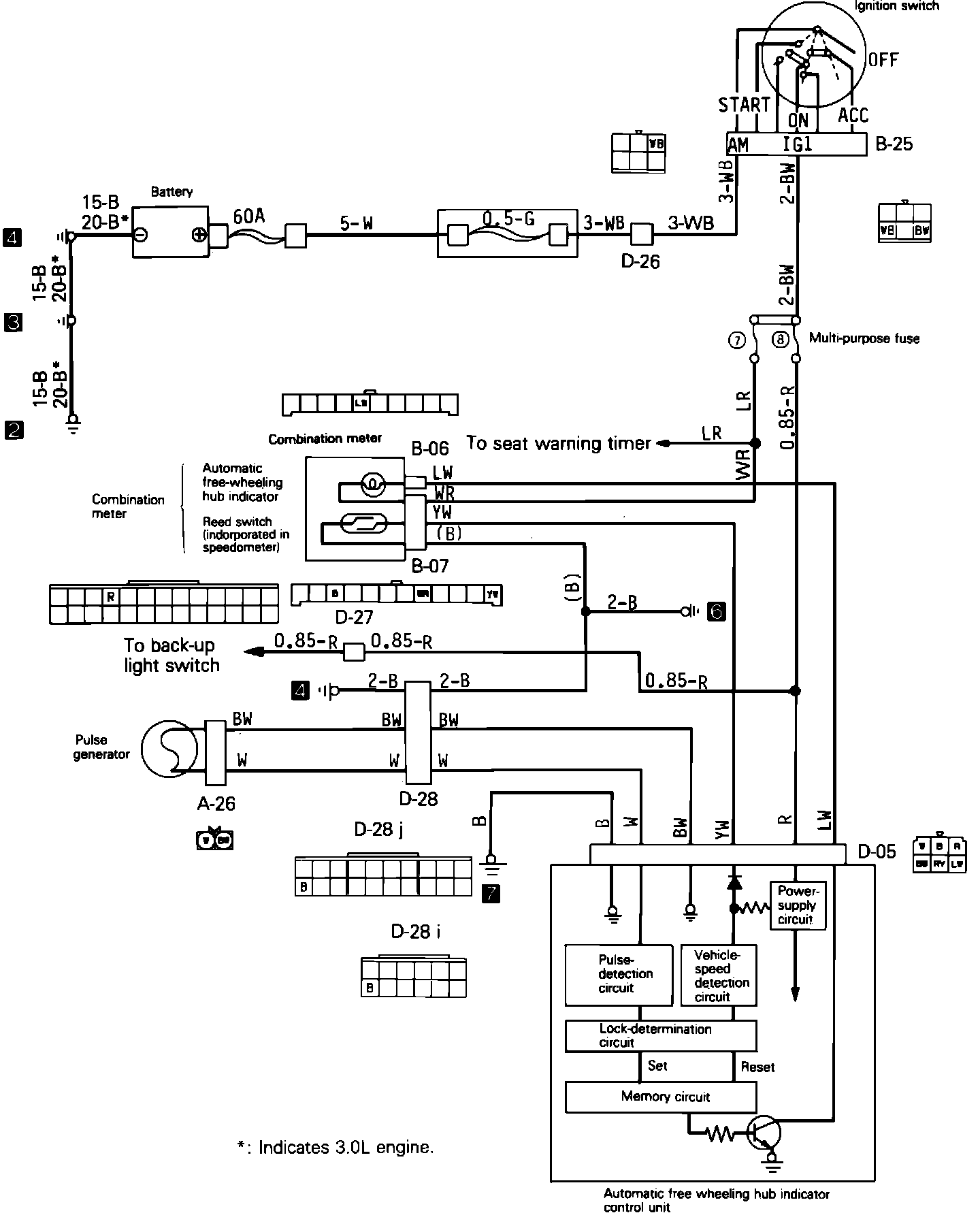

Automatic Free Wheeling Hub Control Unit
Automatic Free Wheeling Hub Control Unit
Automatic Free-Wheeling Hub Indicator:
