Engine Control Module: Service Precautions

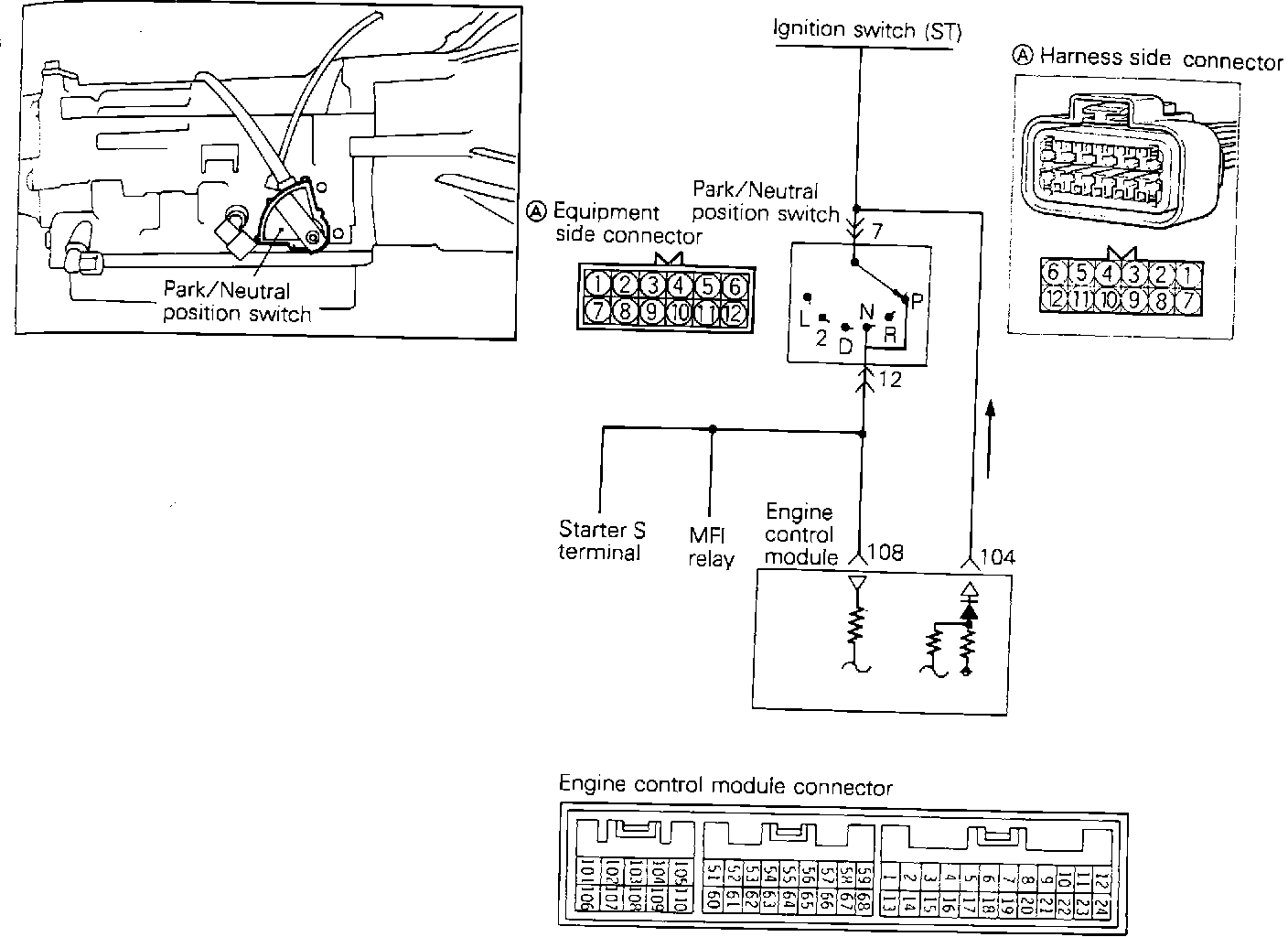

Transmission Position Switch:

AUTOMATIC TRANSMISSION

Ignition Switch:

MANUAL TRANSMISSION

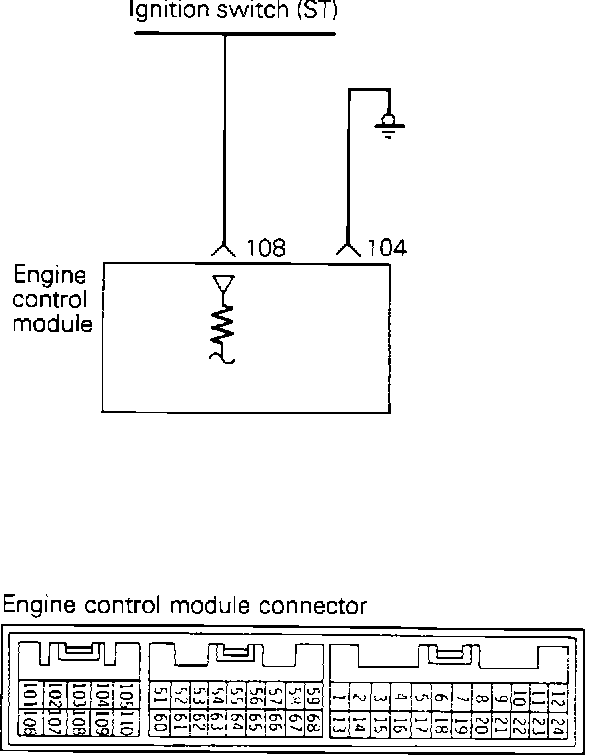

The ignition switch supplies "On" and "Start" information to the ECU to position the idle speed control components. The ignition switch "ON" signal is provided to the ECU through the control relay. Refer to images for the "START" signal.
