Injector Check

Measurement of Resistance Between Terminals

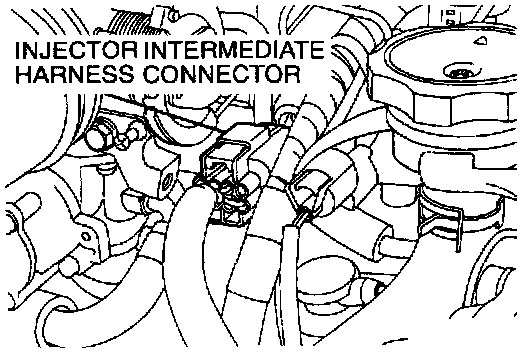

1. Disconnect the injector intermediate harness.

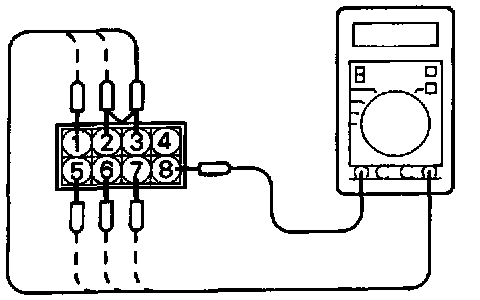

2. Measure the resistor between the terminals.

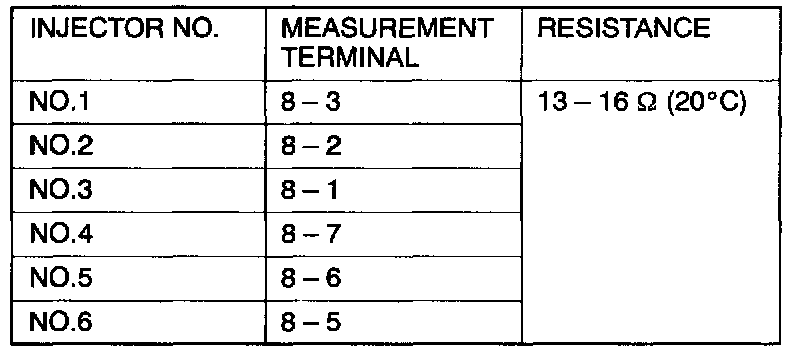

Standard Value

3. Connect the injector intermediate harness.
