Main Relay (Computer/Fuel System): Testing and Inspection

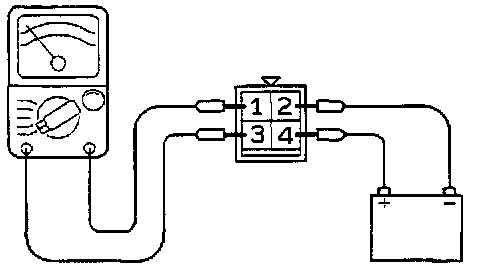

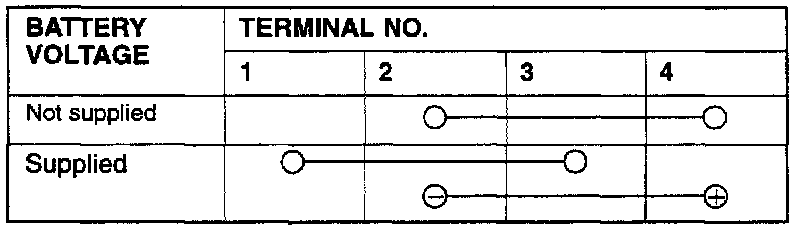

MULTIPORT FUEL INJECTION (MFI) RELAY AND FUEL PUMP RELAY CONTINUITY CHECK




PART 1 OF 2




PART 2 OF 2
