Cruise Control Module: Locations

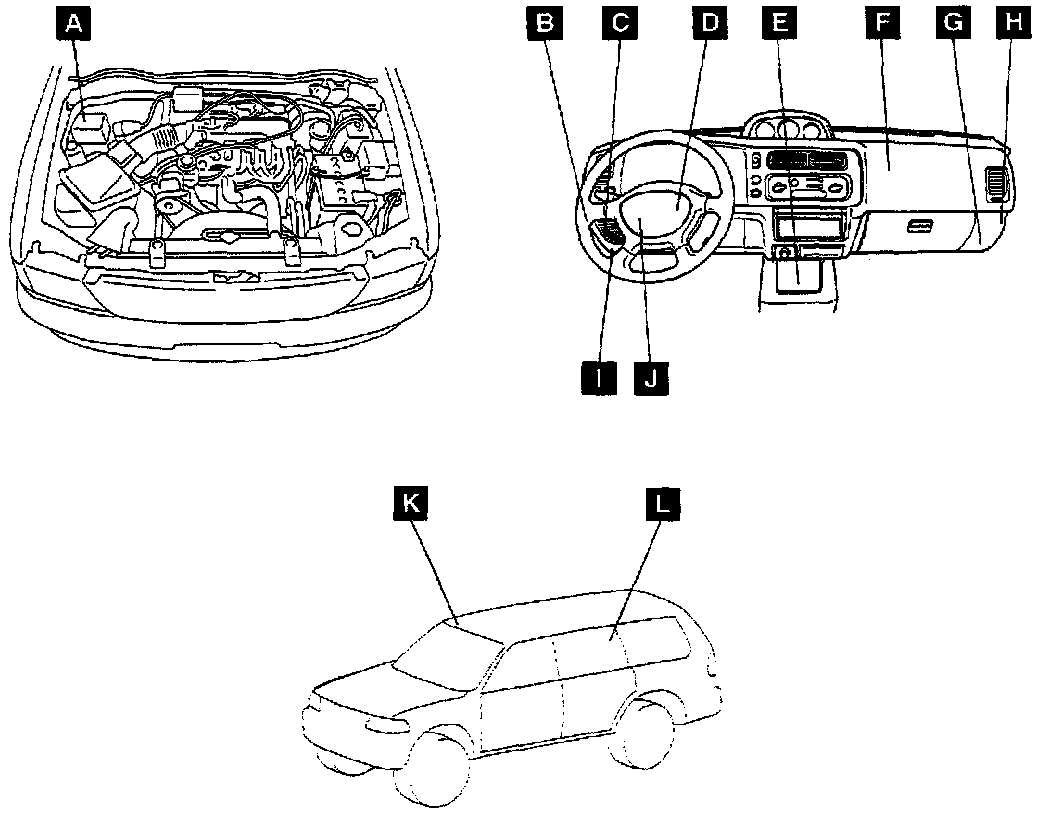

Control Unit Location - Overall View:

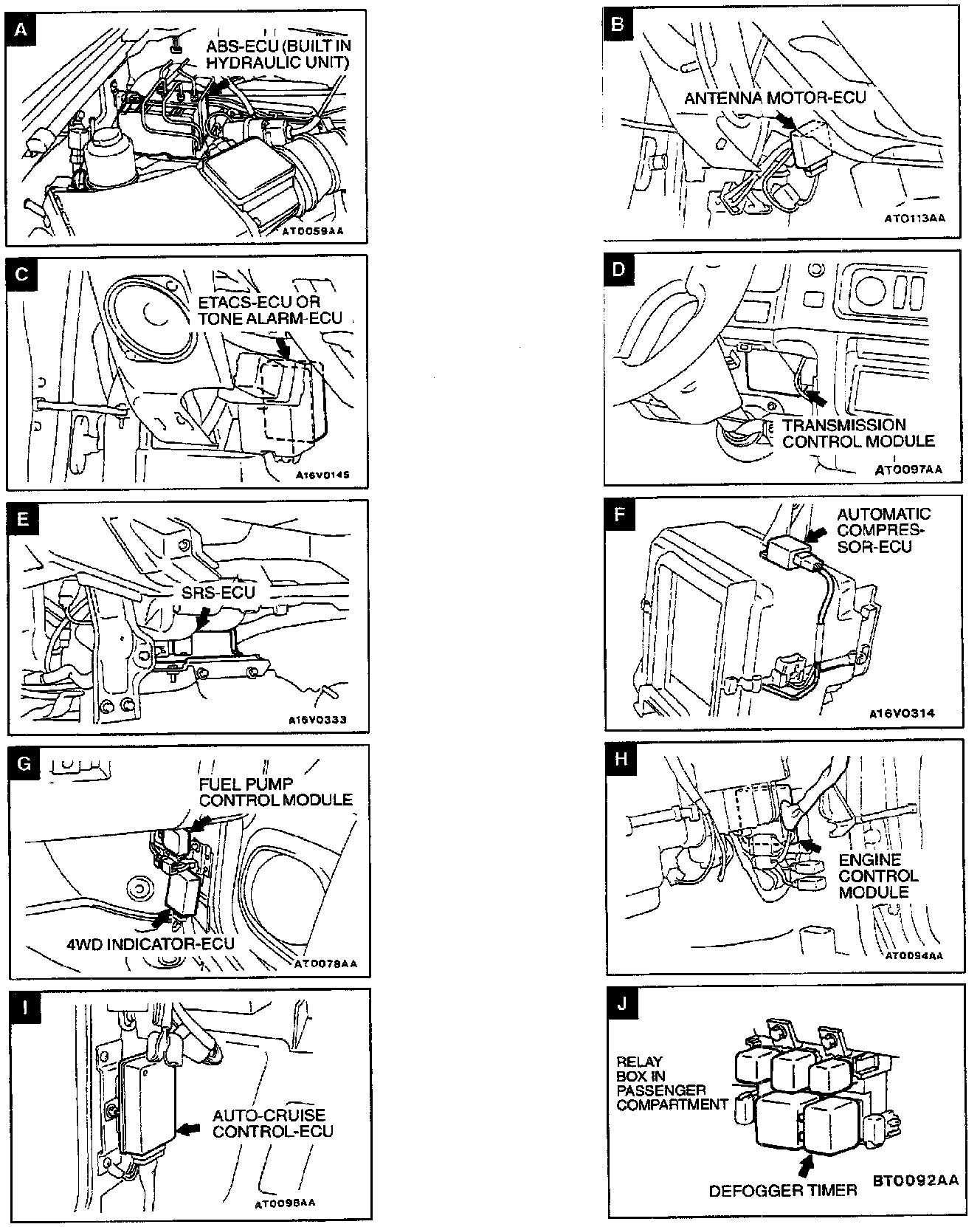

Control Unit Locations Views A - J:





NAME SYMBOL
Auto-Cruise Control-ECU I
