Control Module: Service and Repair

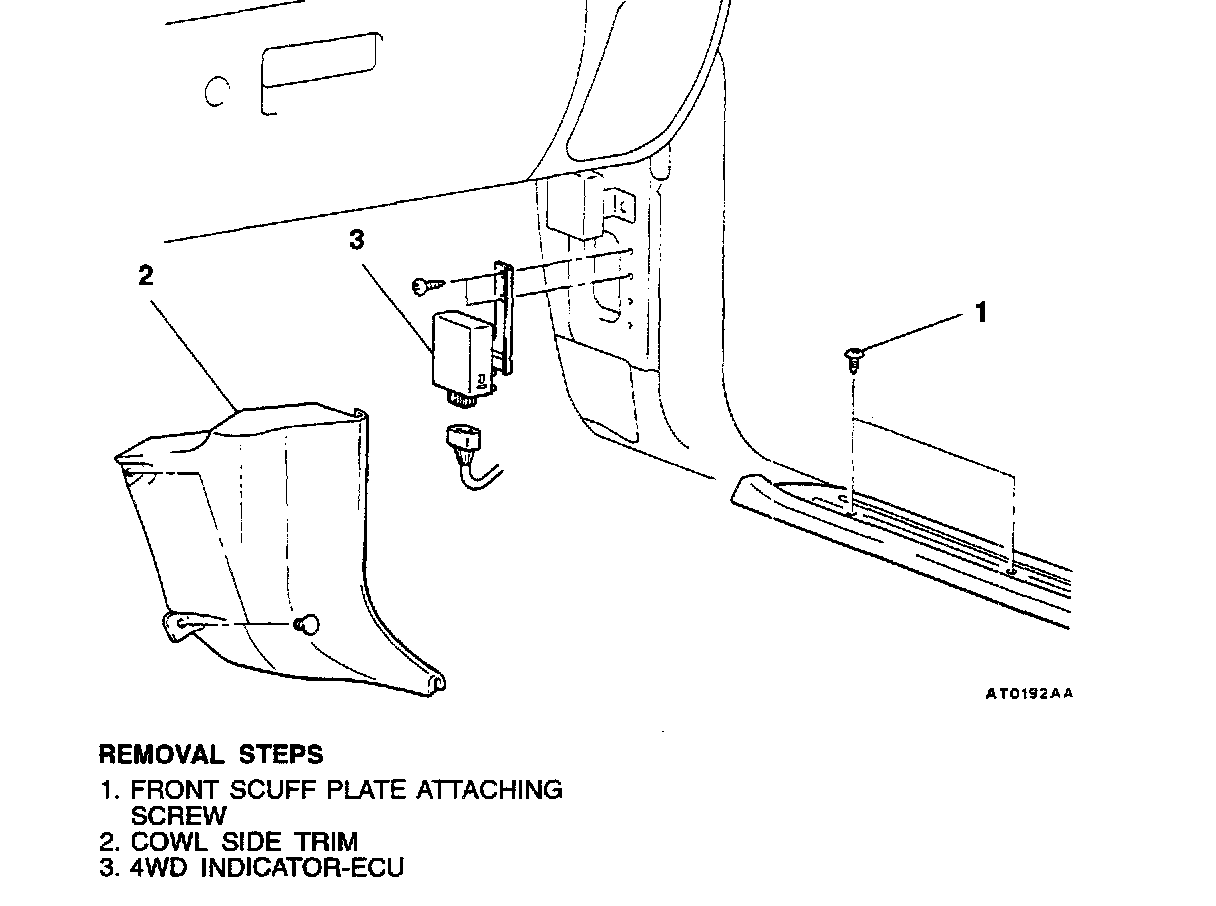

REMOVAL AND INSTALLATION

Inspection
4WD Indicator-ECU





1. Measure the voltage with the control unit and harness still connected.

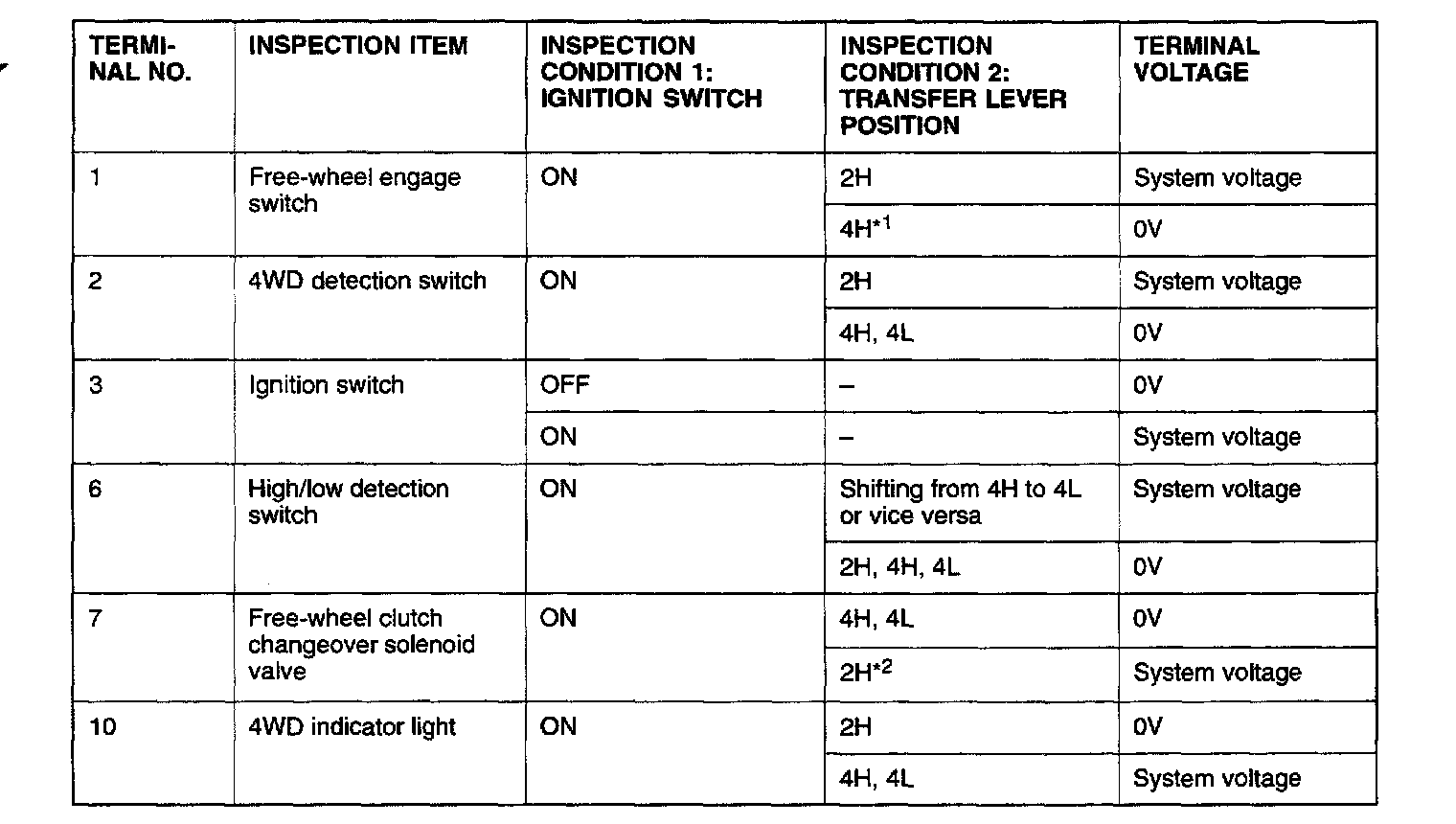

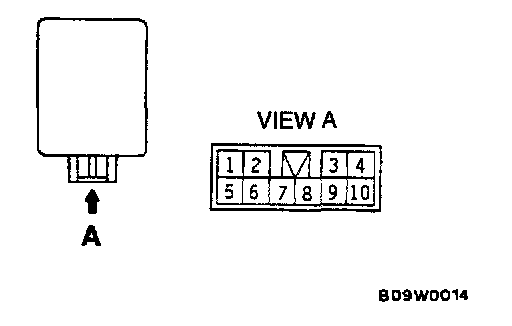

2. Ground terminal (8) and then measure the terminal voltage.
