Cruise Control Module: Locations

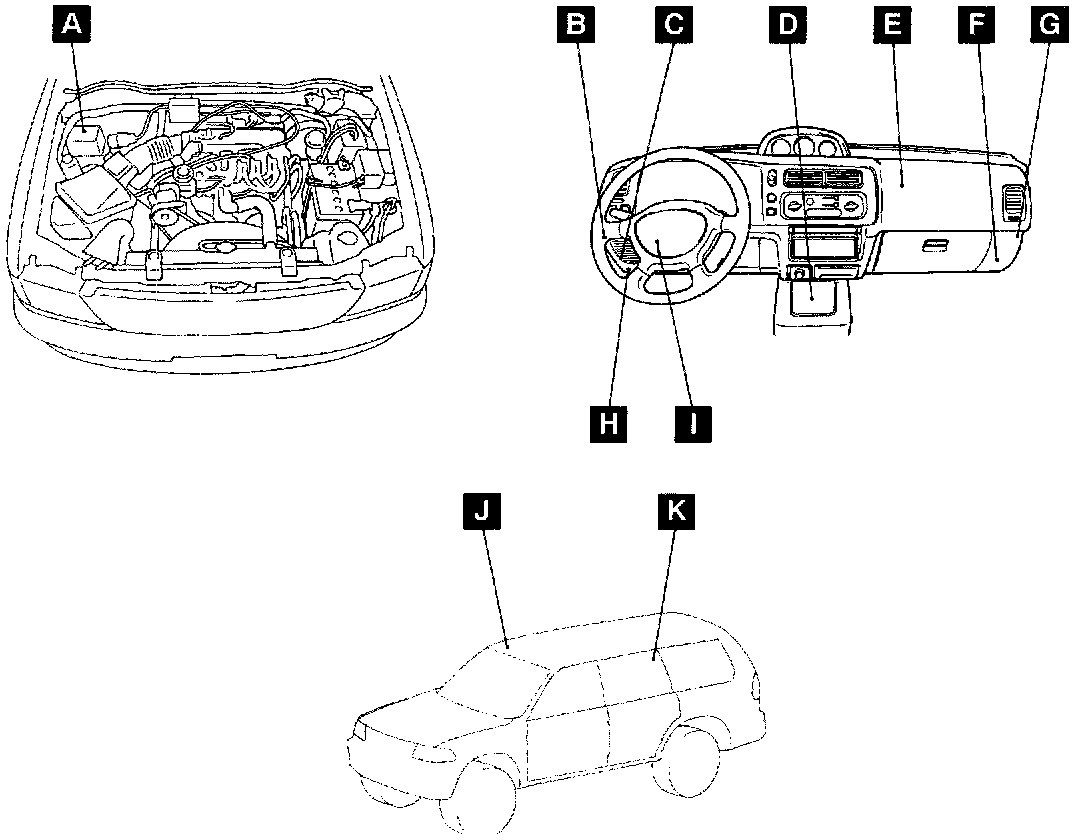

Control Unit Location Overall View:

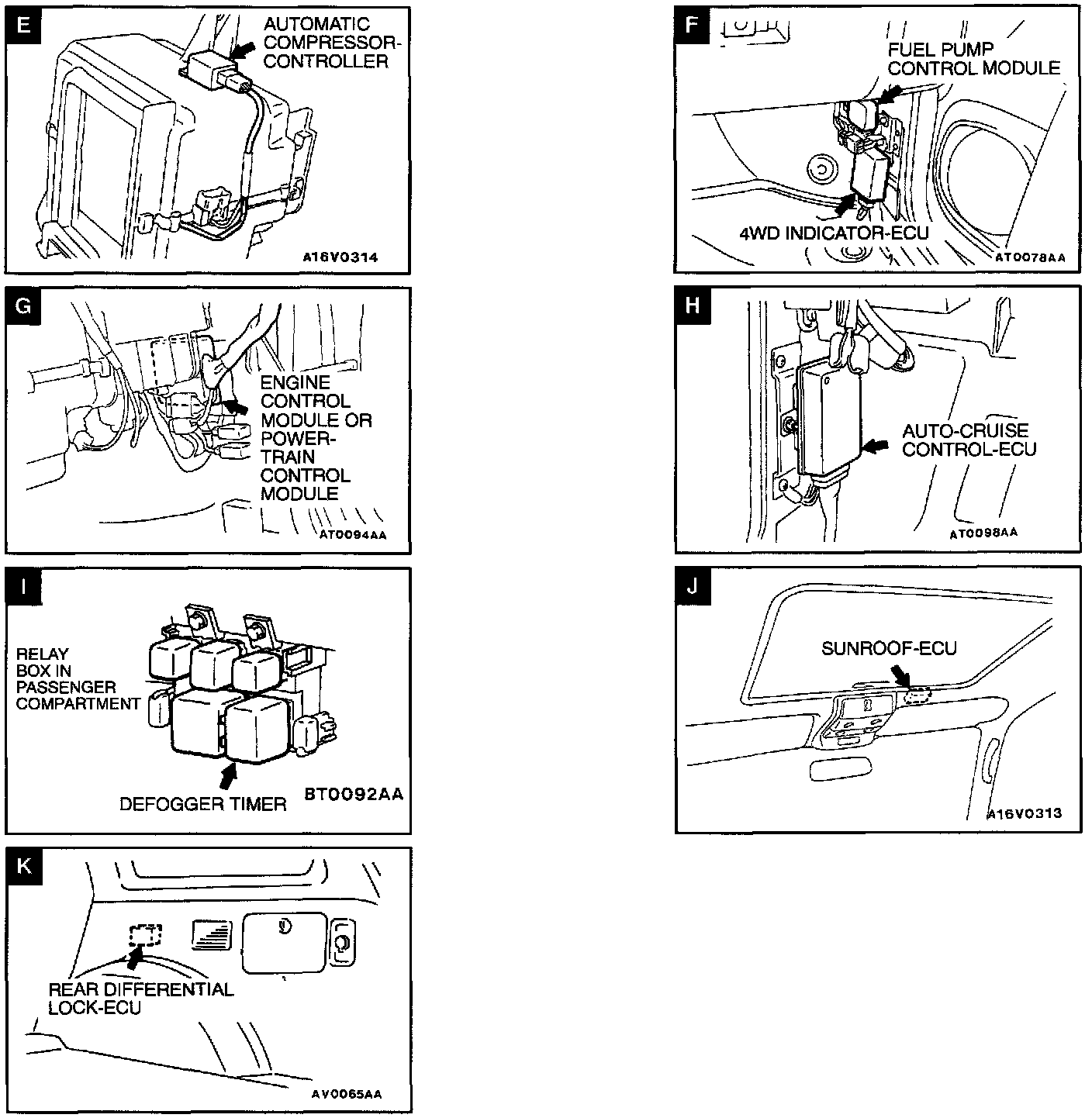

Control Unit Location View E-K:






NAME SYMBOL
Auto-Cruise Control-ECU H
