Main Relay (Computer/Fuel System): Locations

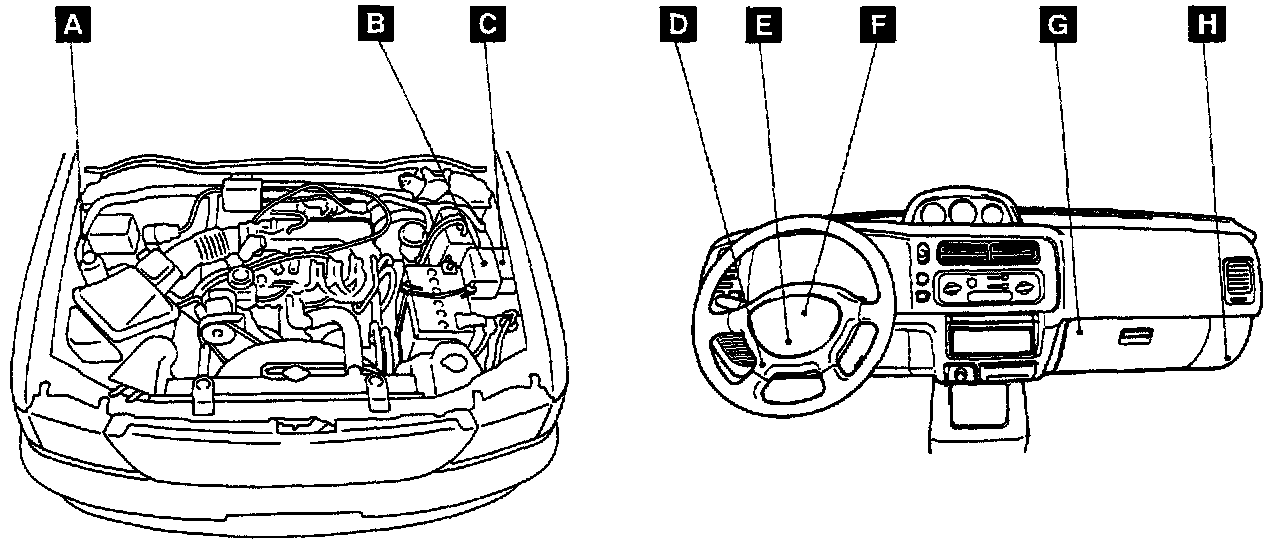

Relay Locations Overall View:

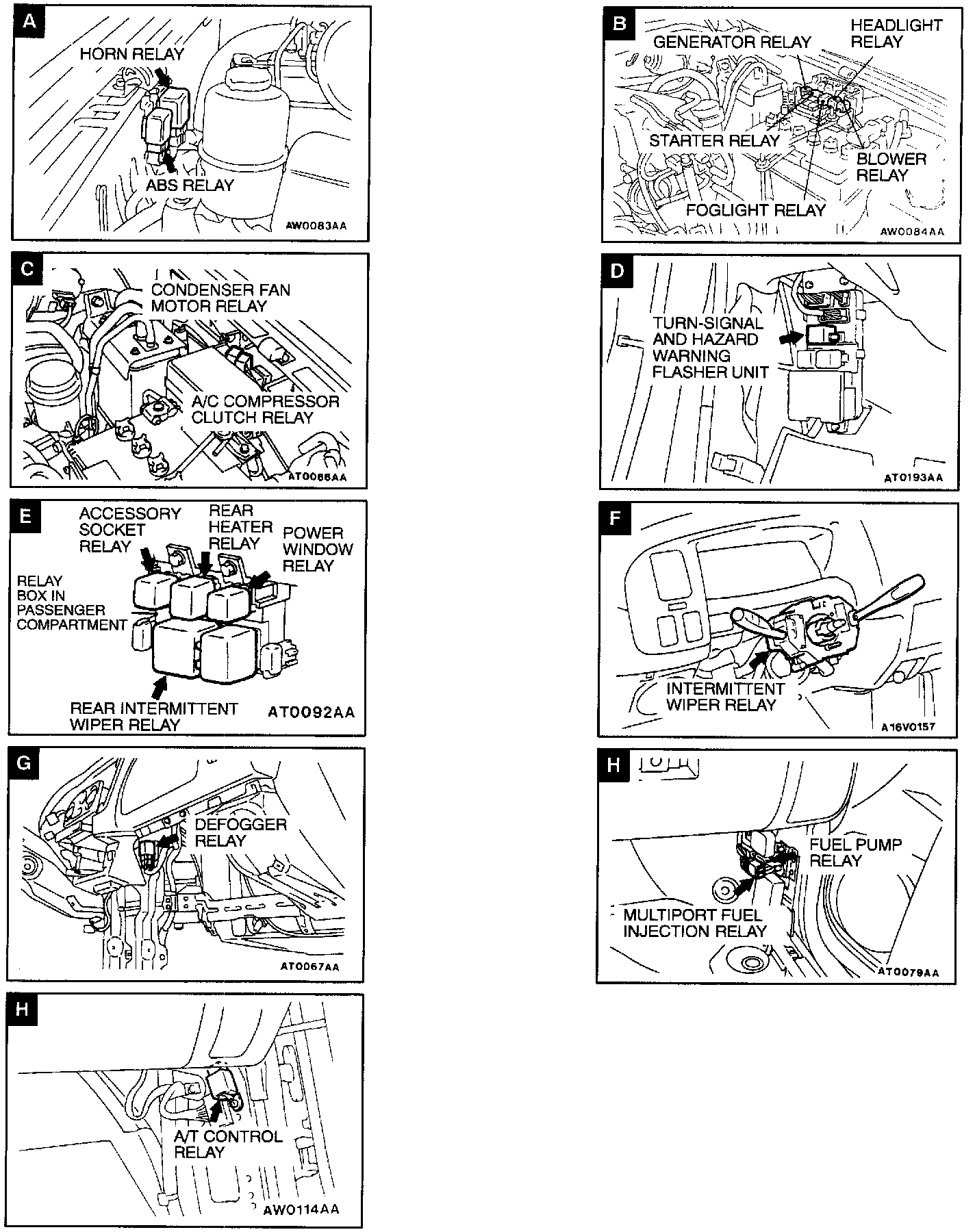

Relay Locations View A-H:





NAME SYMBOL
Multiport Fuel Injection Relay H
