Home >> Mitsubishi >> 1987 >> Mirage L4-1597cc 1.6L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

Catalytic Converter: Locations

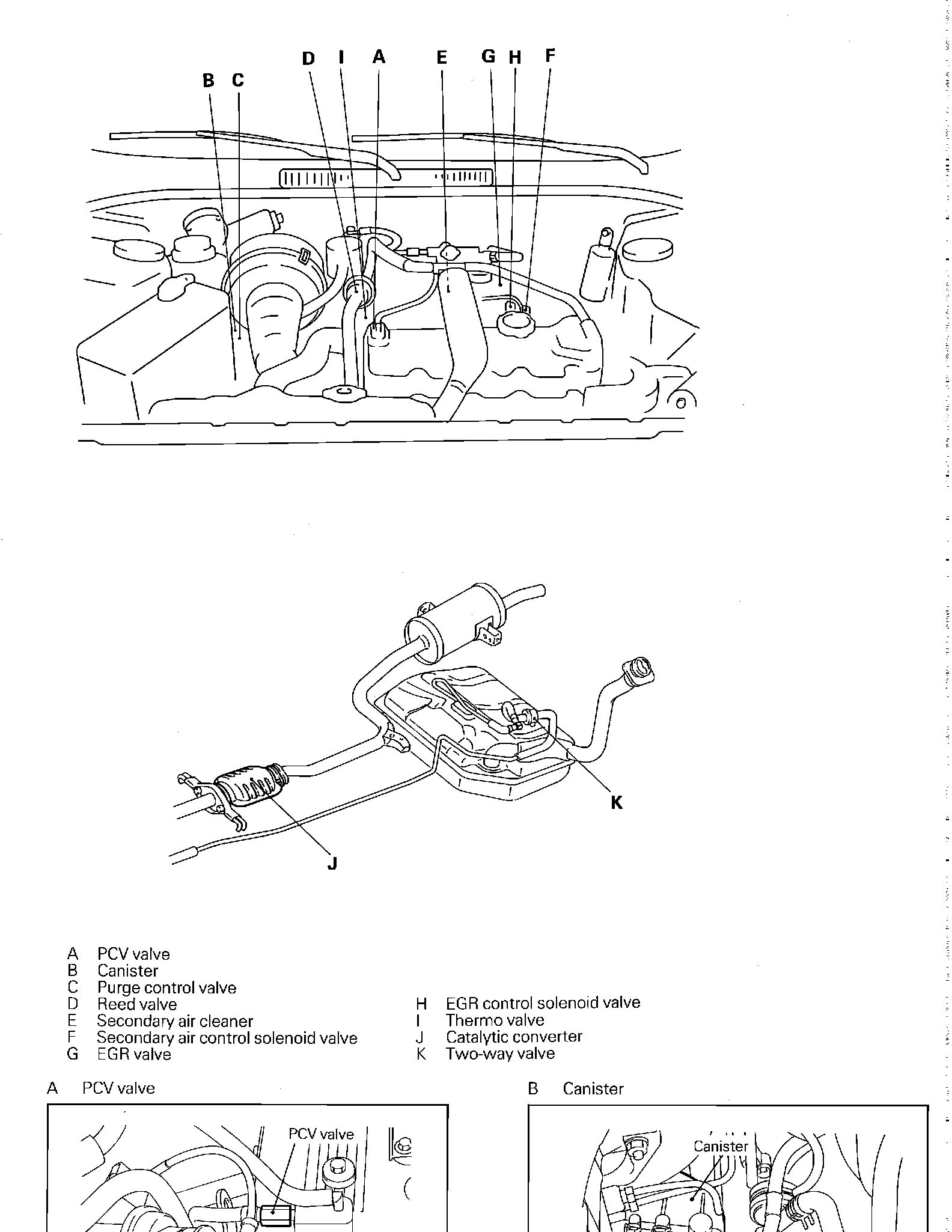

�$�B$Fig. 82 Component locations:
