Home >> Mitsubishi >> 1990 >> Galant L4-2.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

Catalytic Converter: Locations

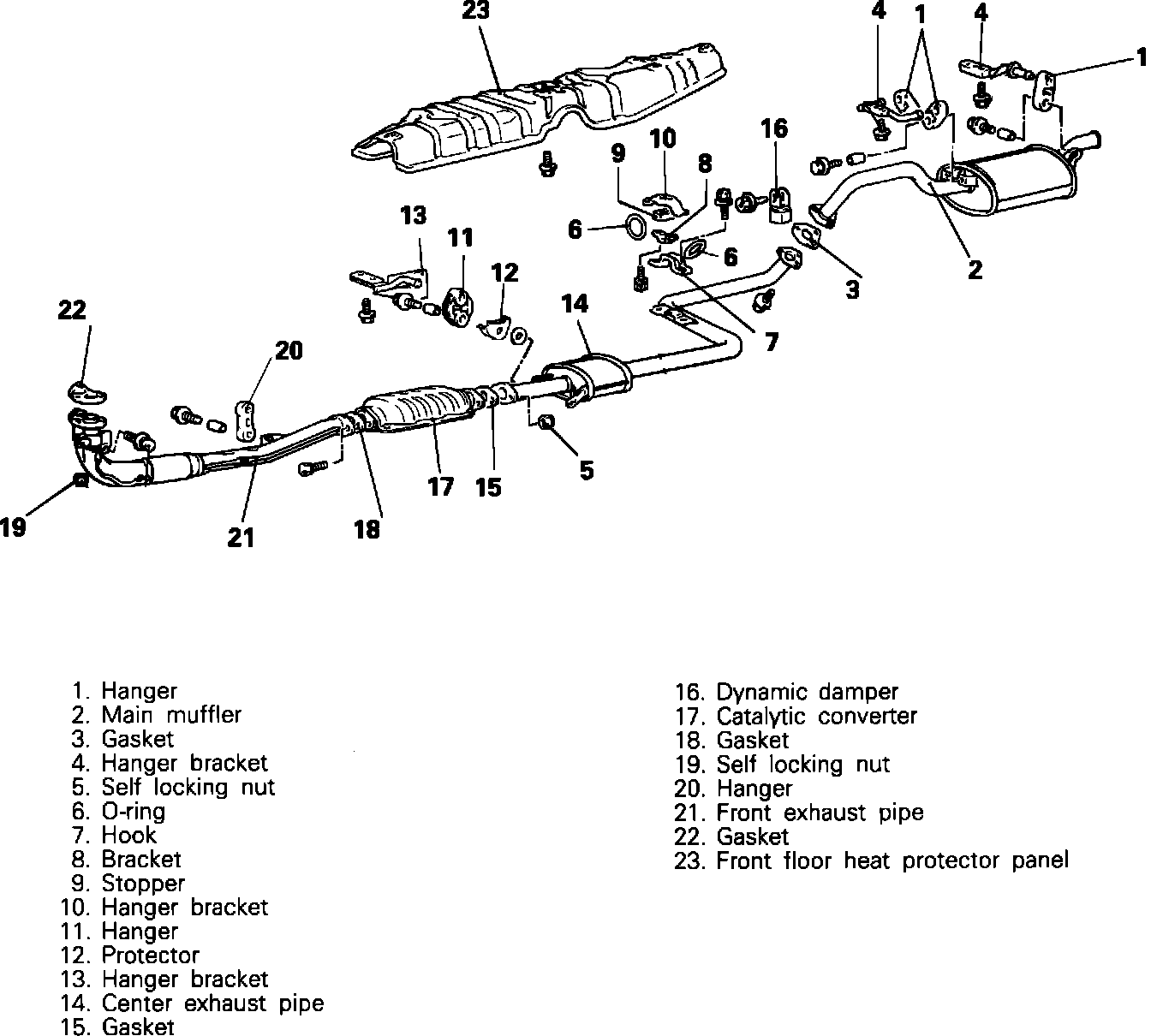

Fig. 42 Component Locations (Catalytic Converter):
