Automatic Transaxle

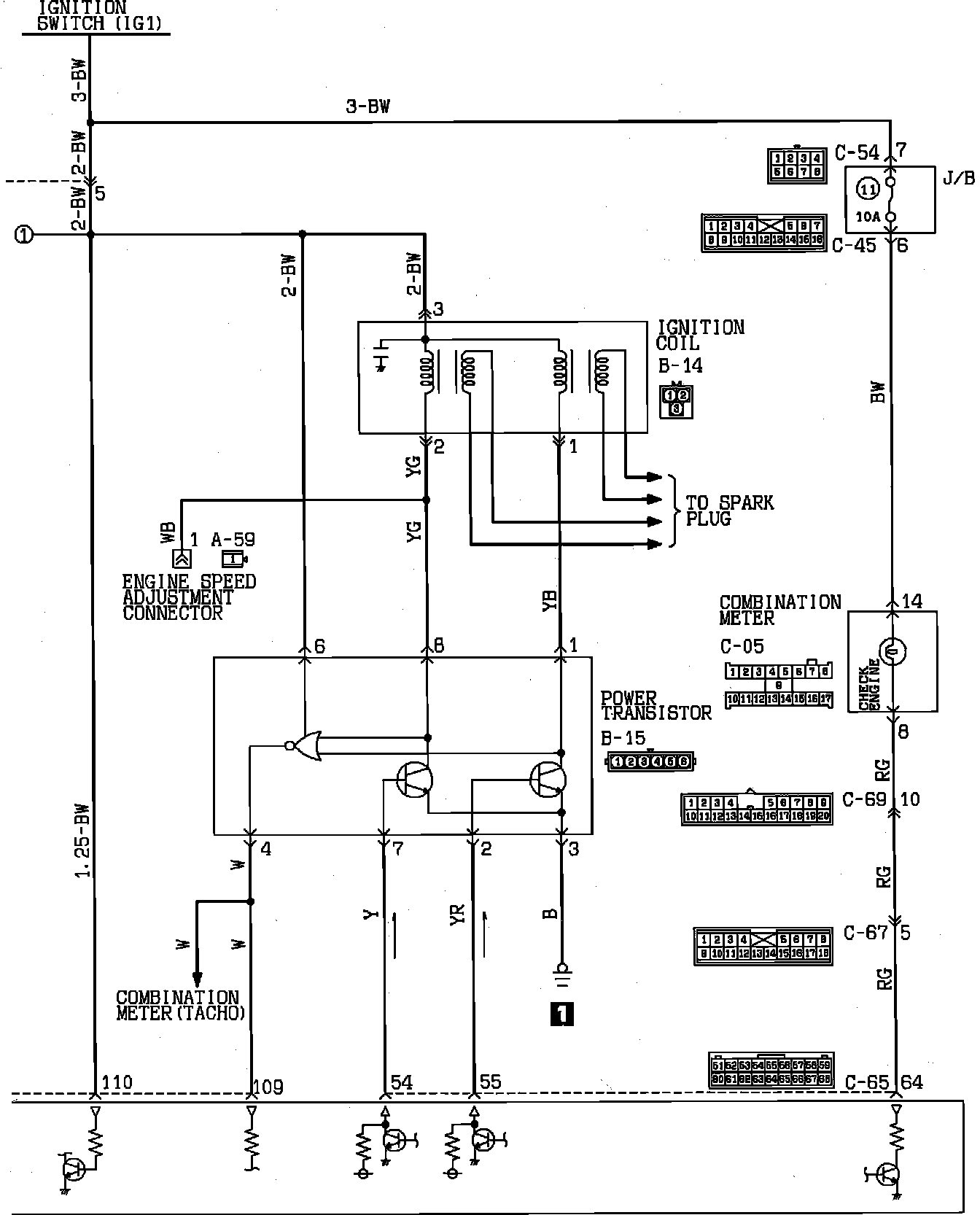

Engine Management (Non-turbo):

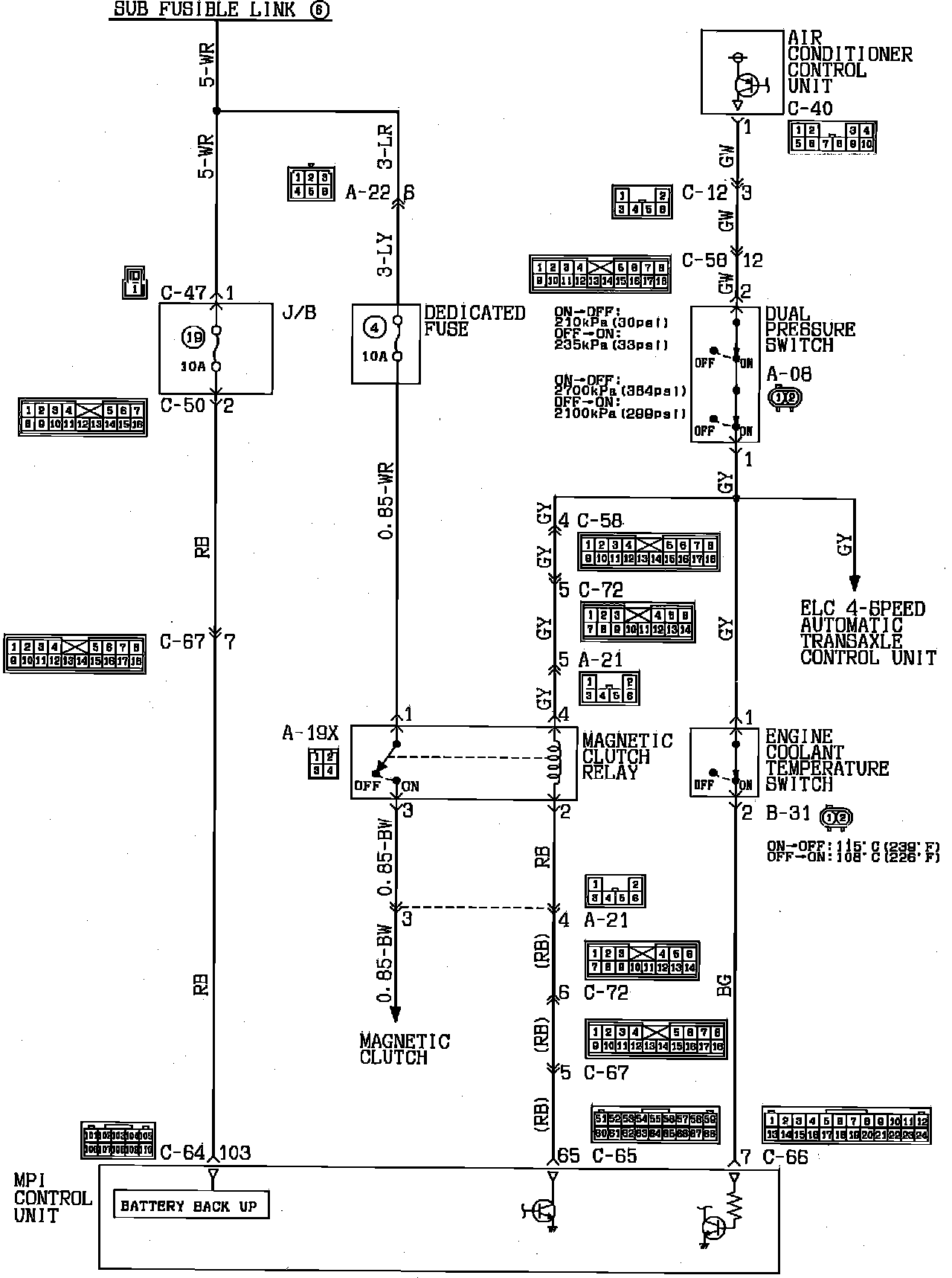

Engine Management (Non-turbo):

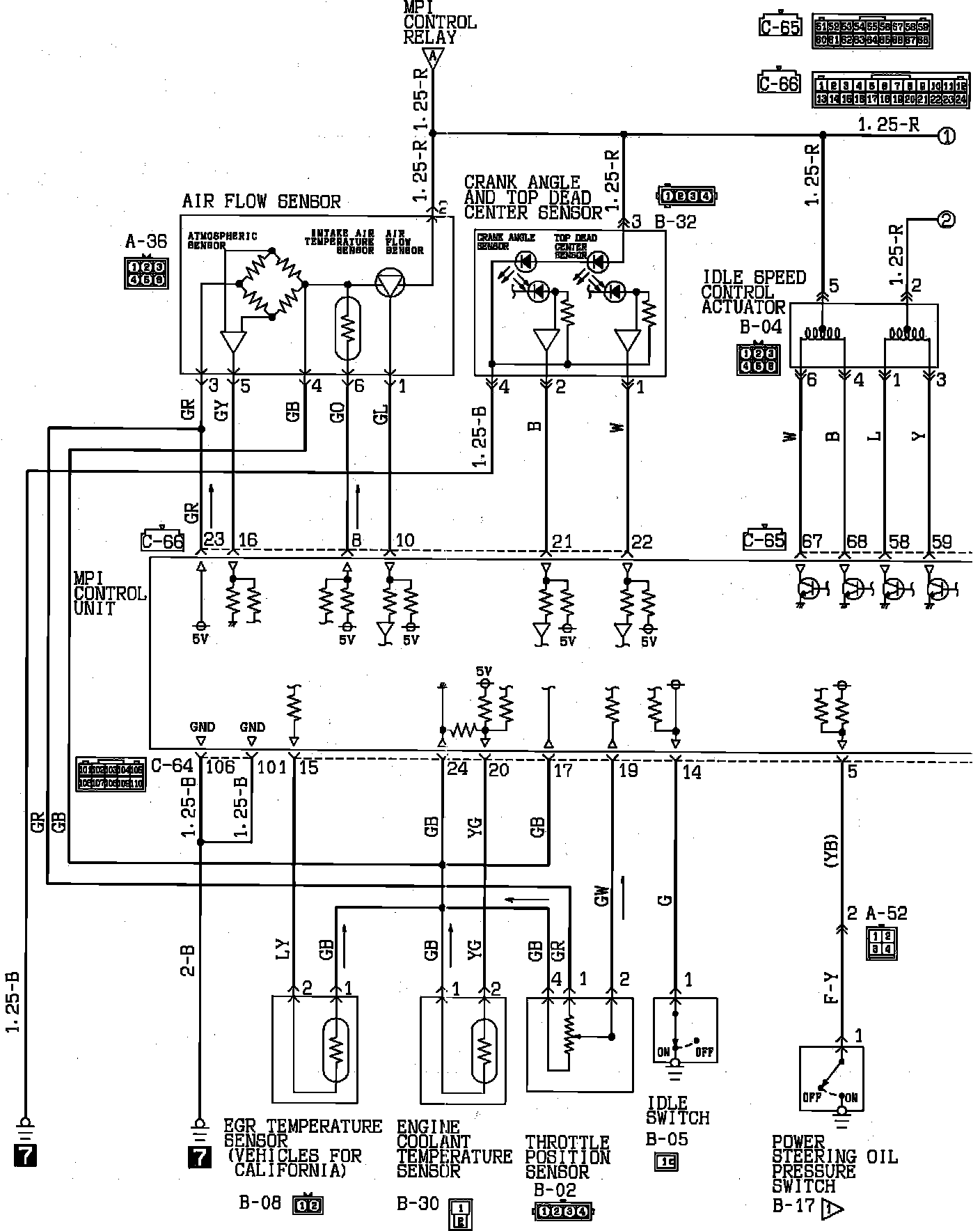

Engine Management (Non-turbo):

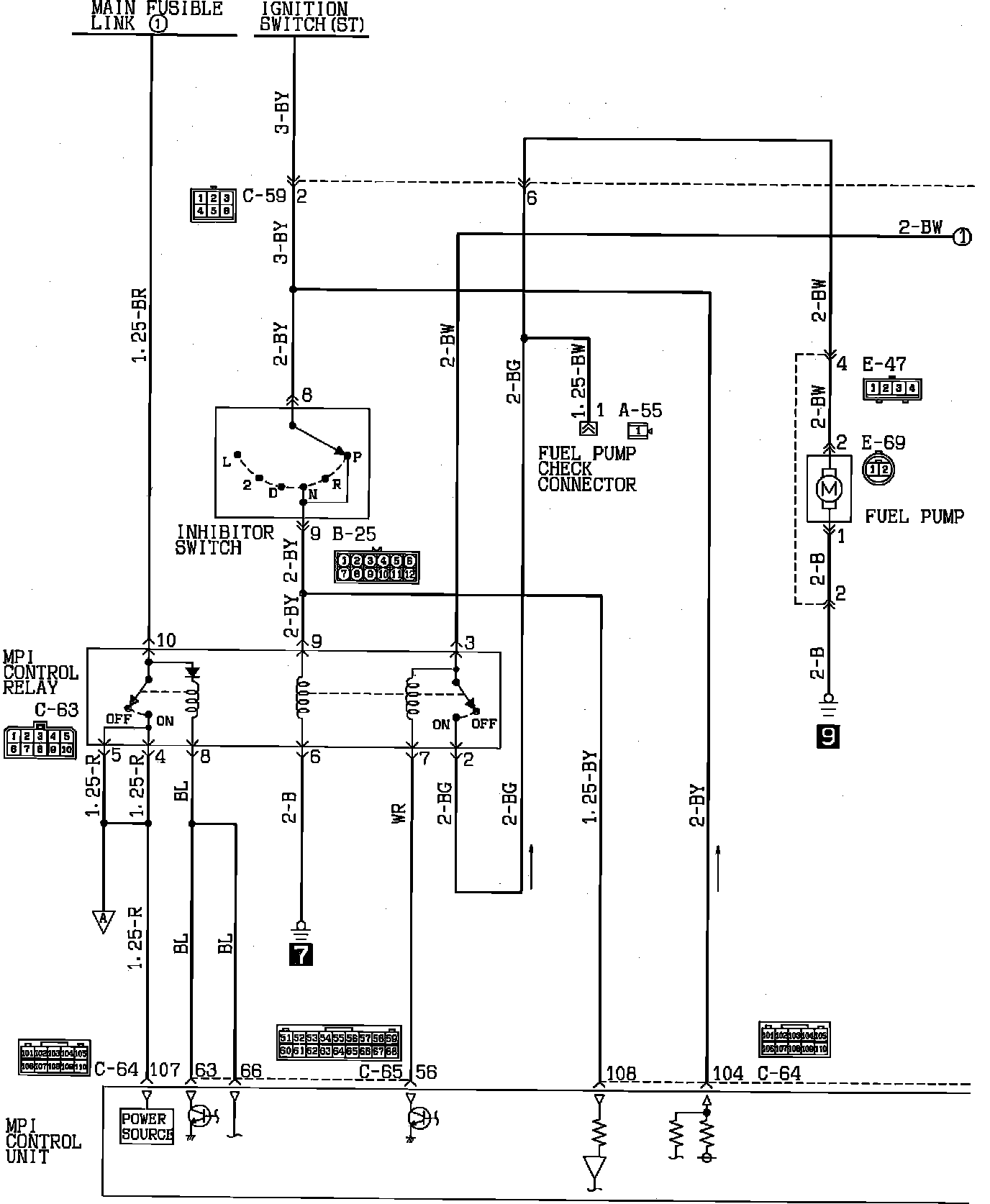

Engine Management (Non-turbo):





Engine Management (Non-turbo):
