System Diagram

Engine Management Turbo:

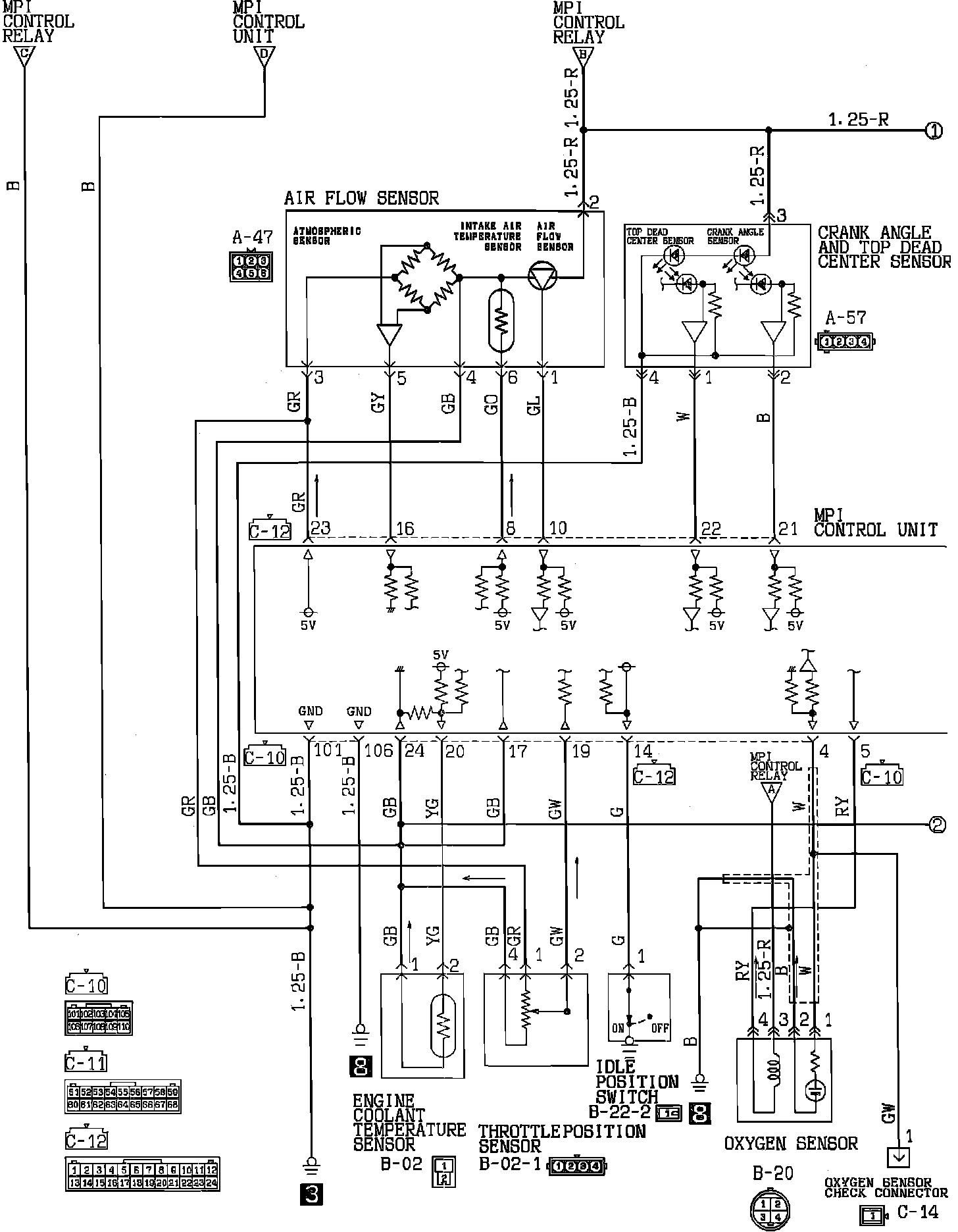

Engine Management (Non-Turbo):

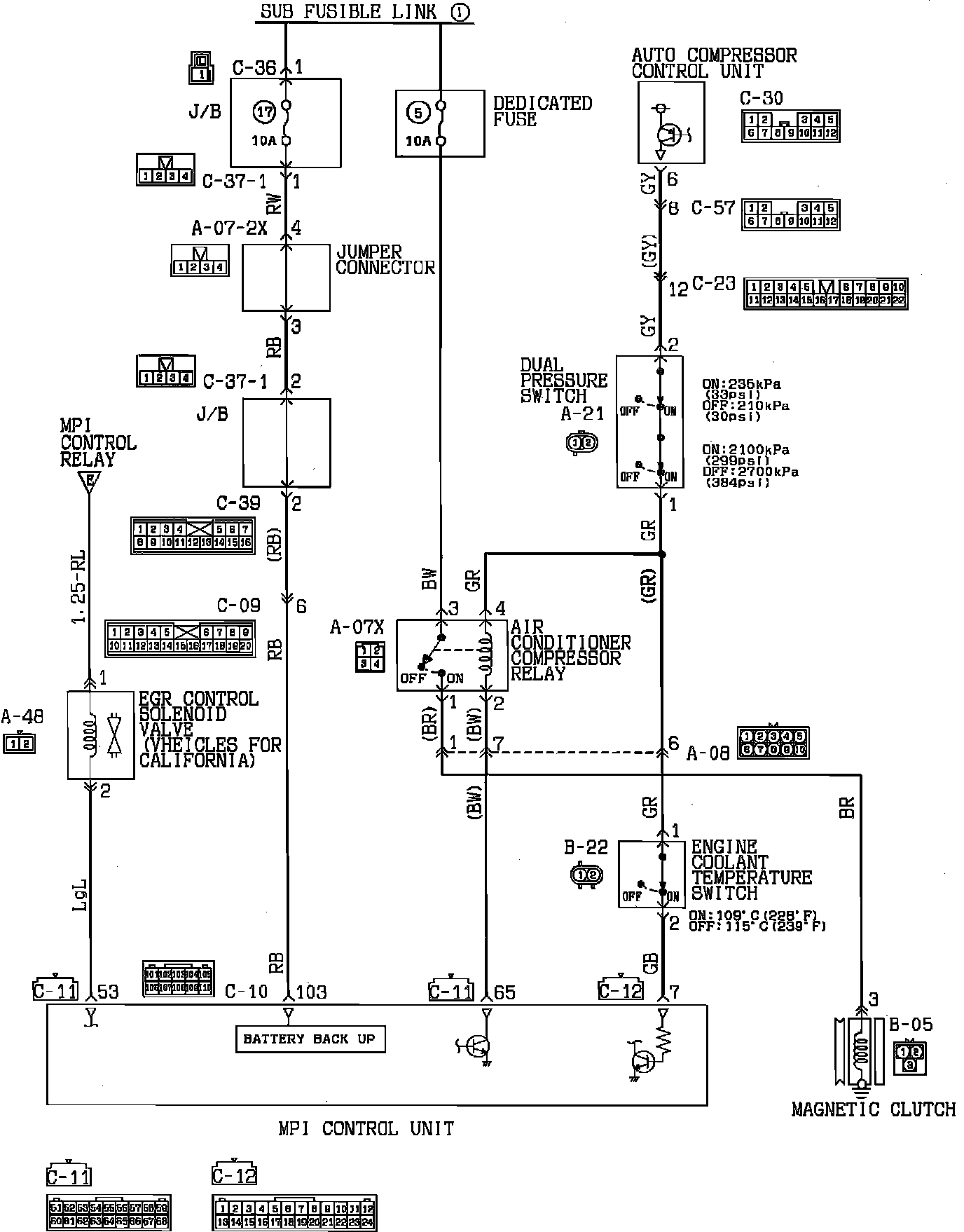

Engine Management (Non-Turbo):

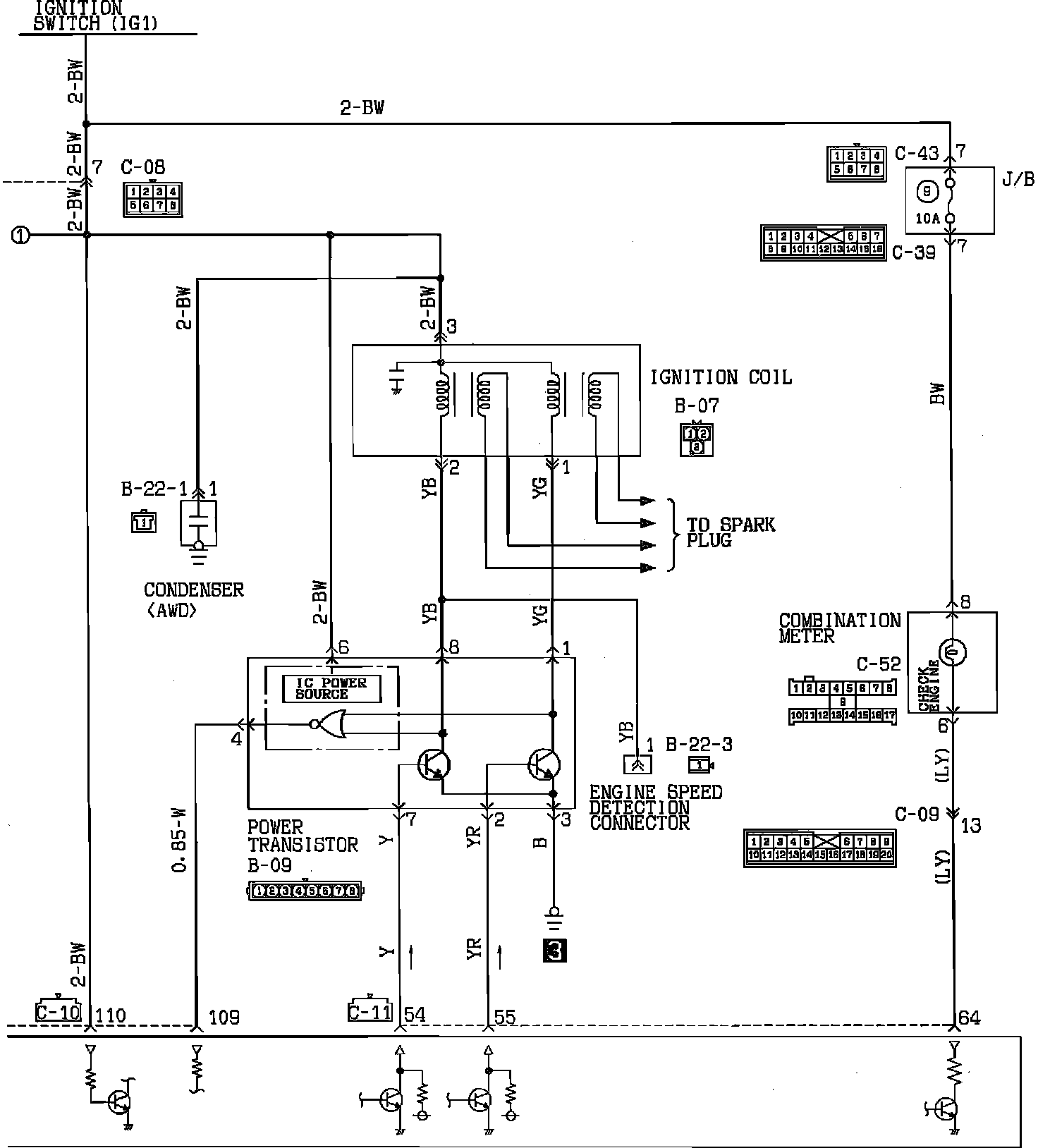

Engine Management (Non-Turbo):

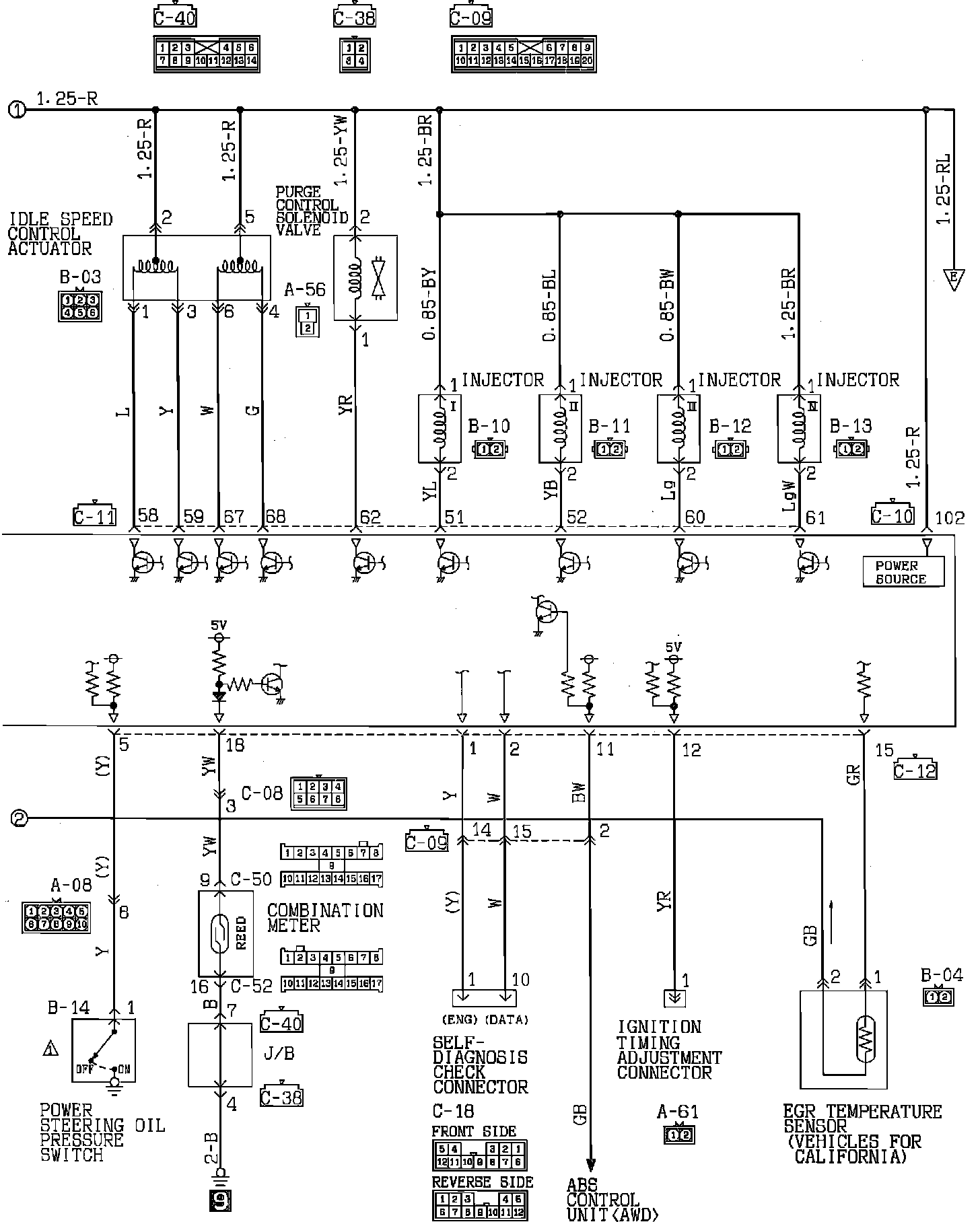

Engine Management (Non-Turbo):
