Main Harness

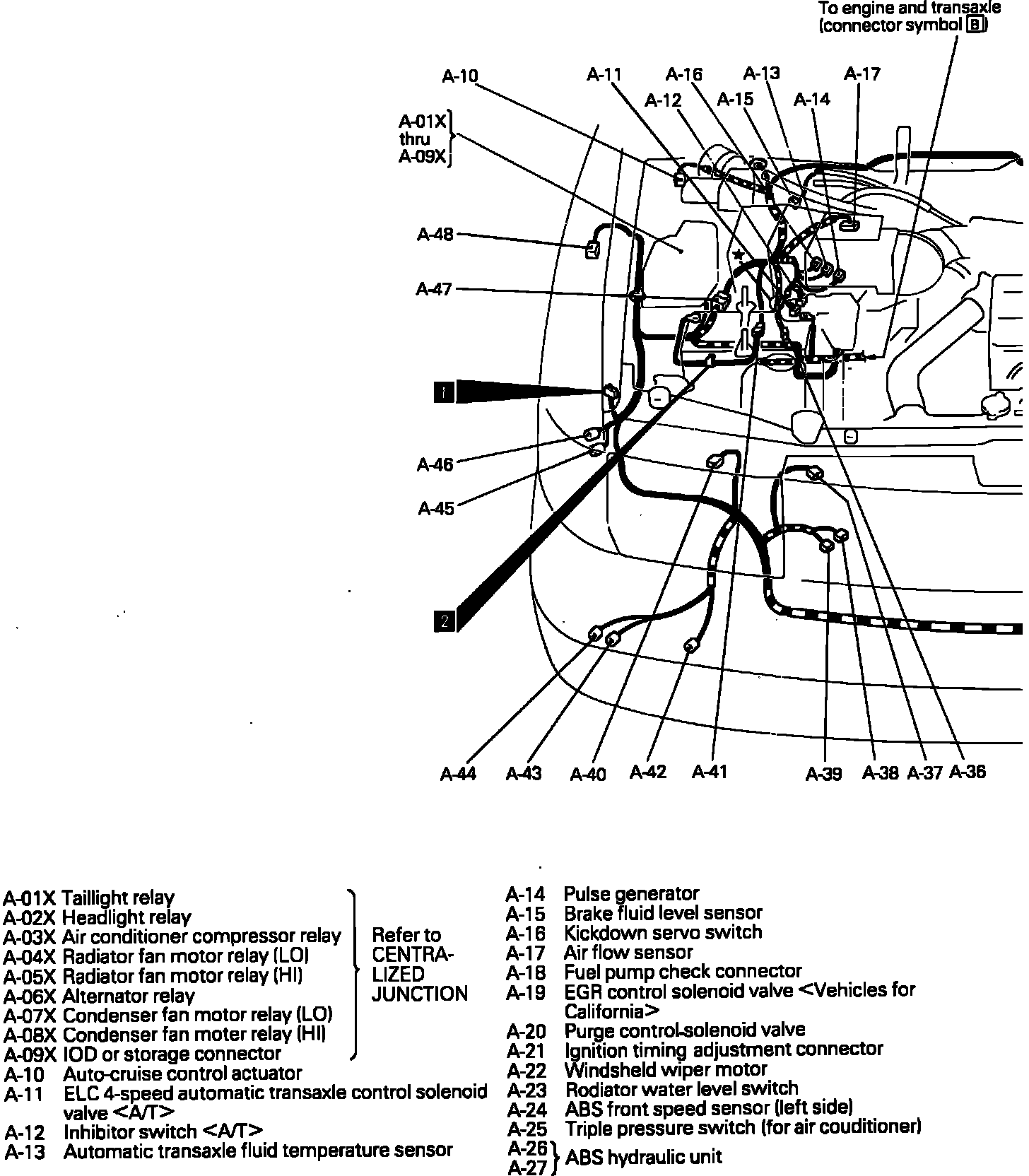

Harness Connector Locations 1/2:





ENGINE COMPARTMENT HARNESS 1/2

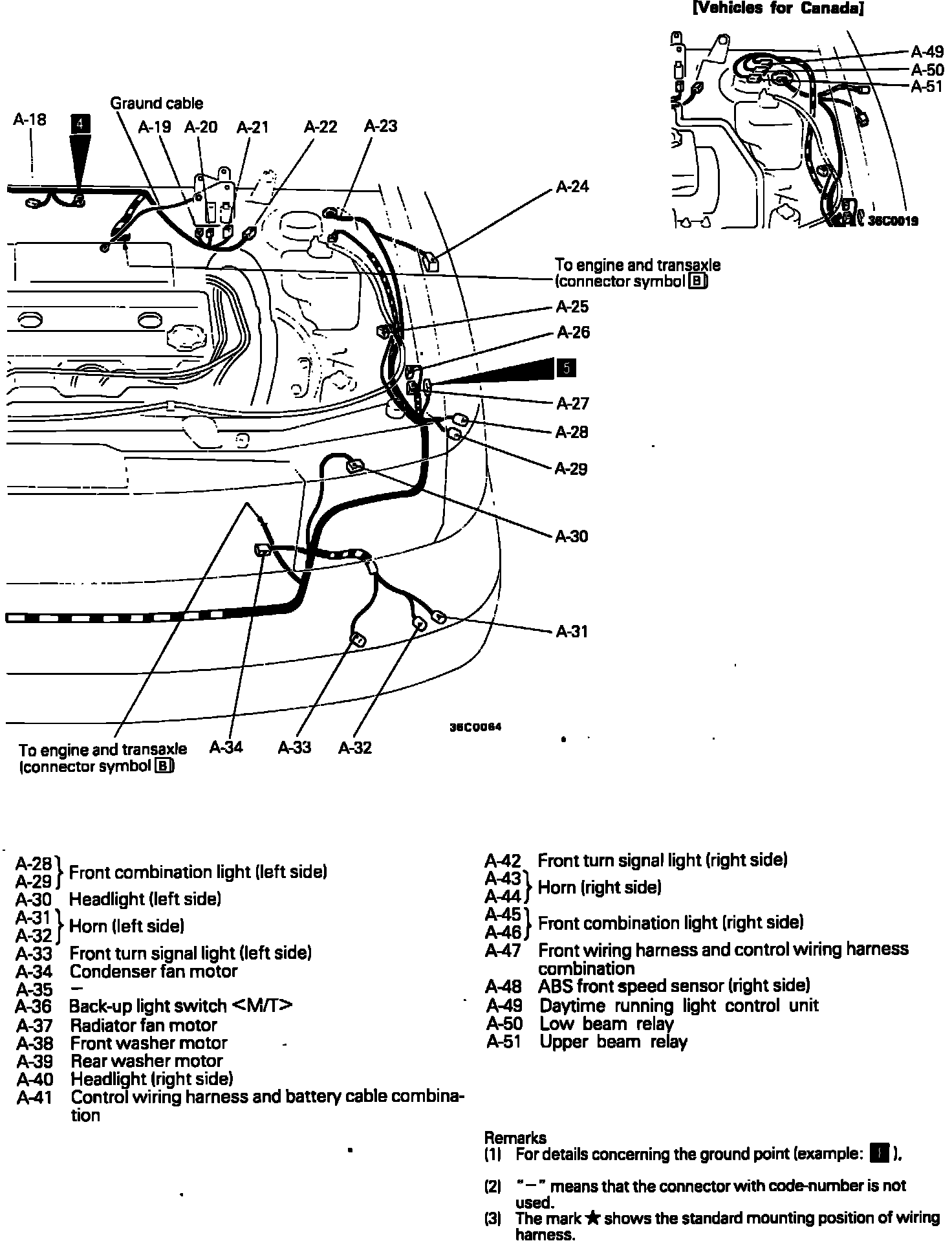

Harness Connector Locations 2/2:





ENGINE COMPARTMENT HARNESS 2/2

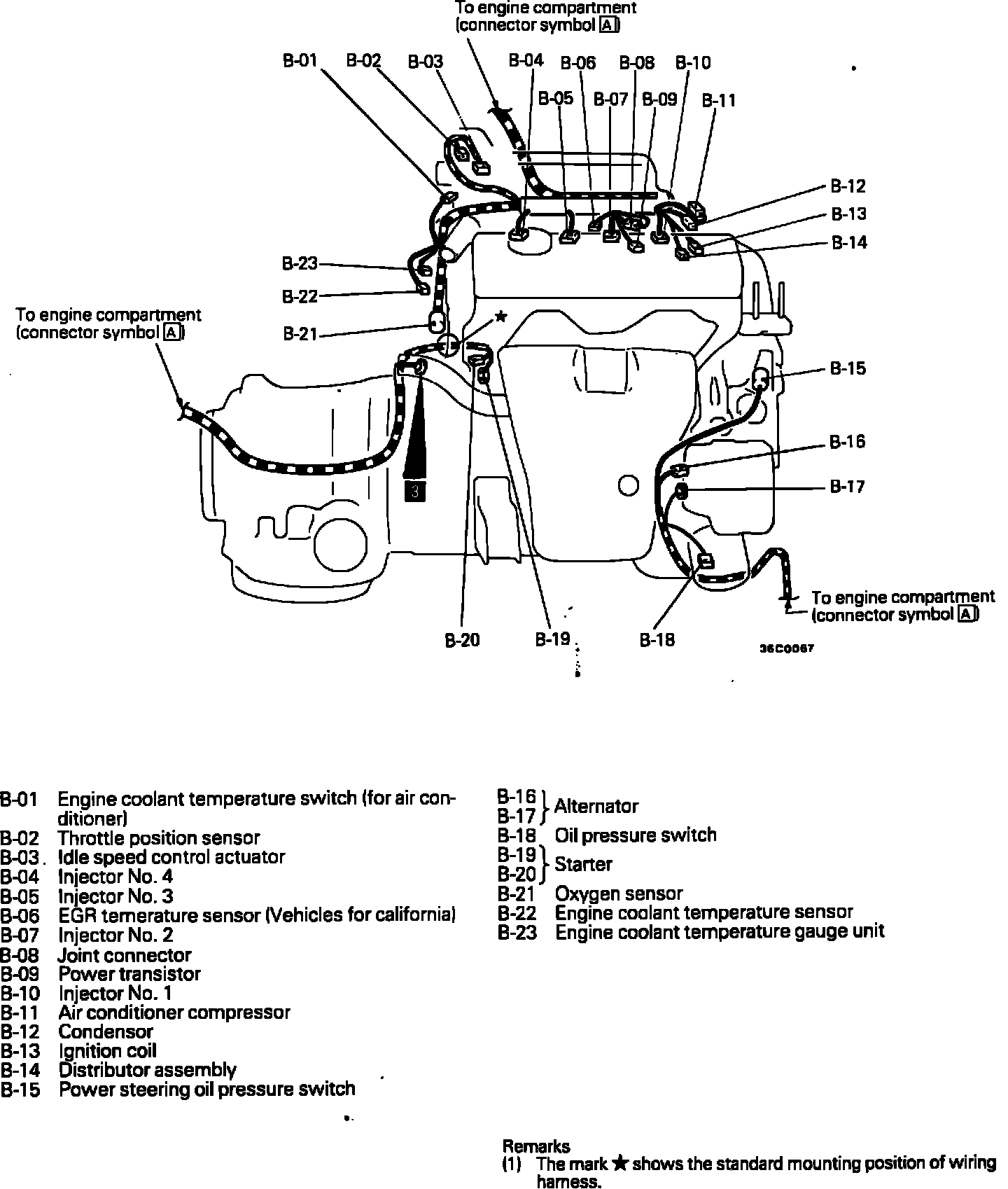

Engine Harness Connectors:





ENGINE HARNESS
