Home >> Mitsubishi >> 1993 >> Diamante Sedan V6-2972cc 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> Engine Compartment

Engine Compartment

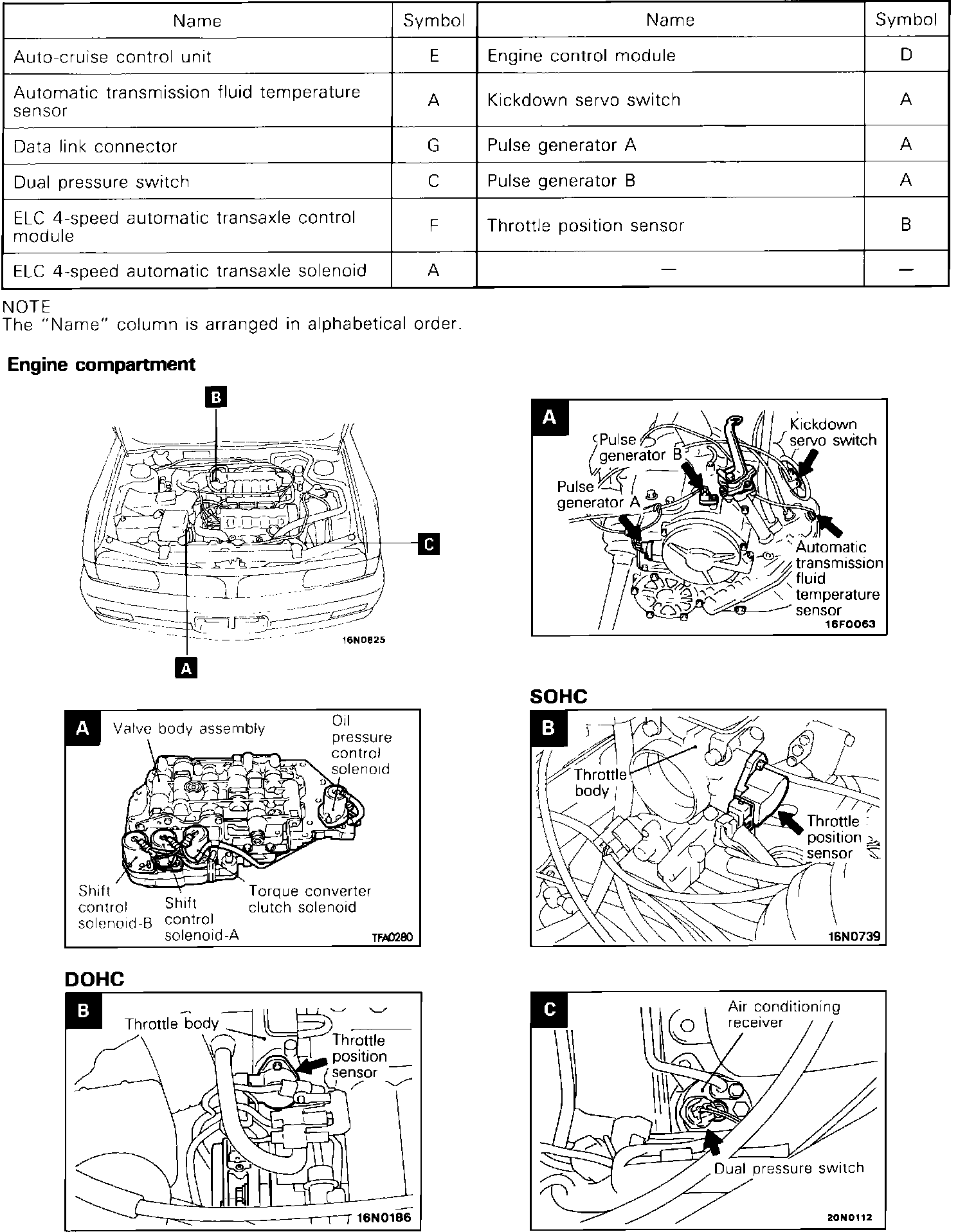

Automatic Transaxle (Electronically Controlled 4-Speed): Component Locations:
