Locations
>>
Interior
Interior

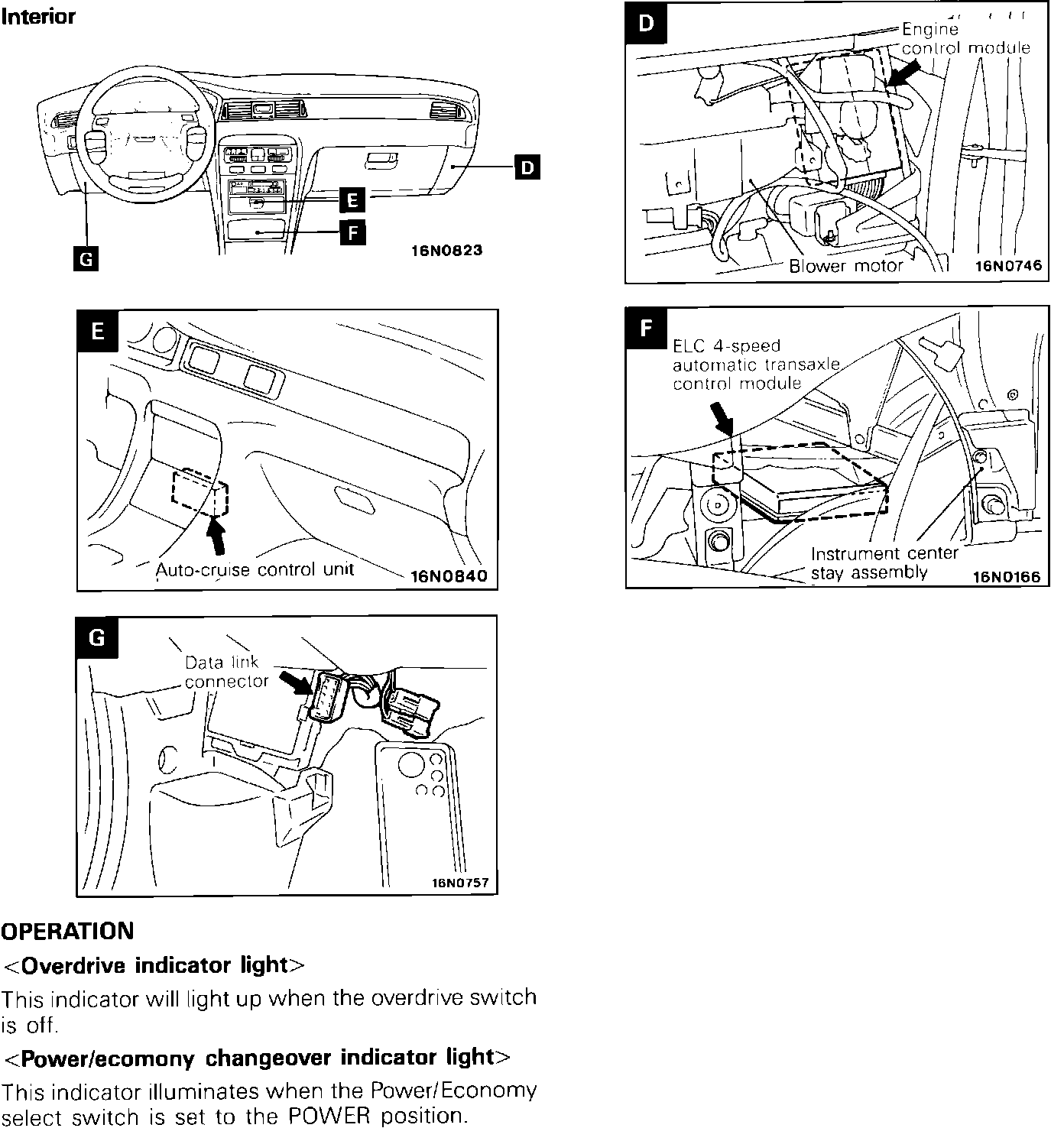

Automatic Transaxle (Electronically Controlled 4-Speed): Component Locations:
