Expo AWD L4-2350cc 2.4L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Alternator Relay
>>
Locations
>>

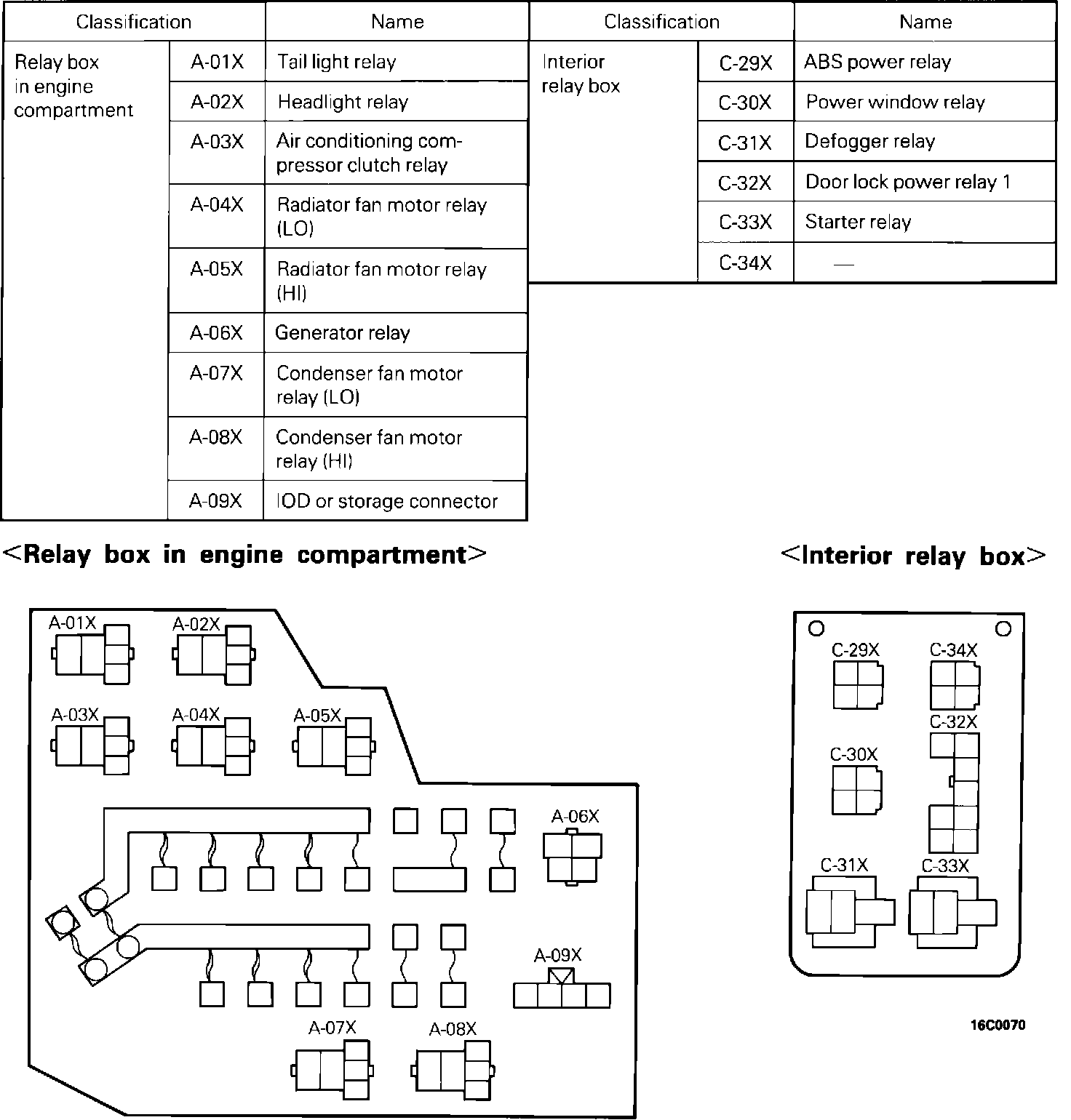

Centralized Relay
Centralized Relay
Centralized Junction: Centralized Relay:
