Suspension Control Module

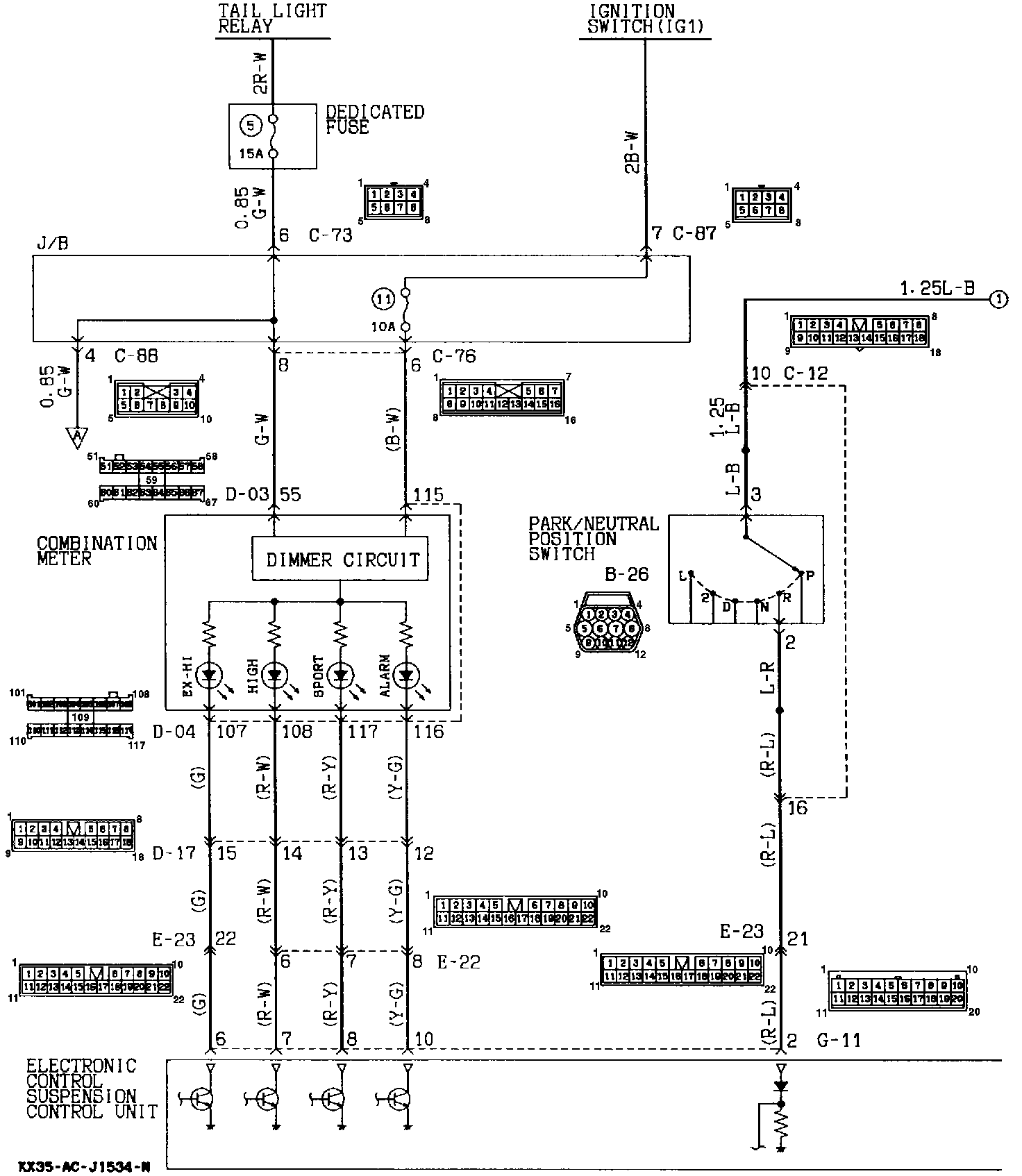

Active-Electronic Control Suspension Circuit (Part 1 Of 8):

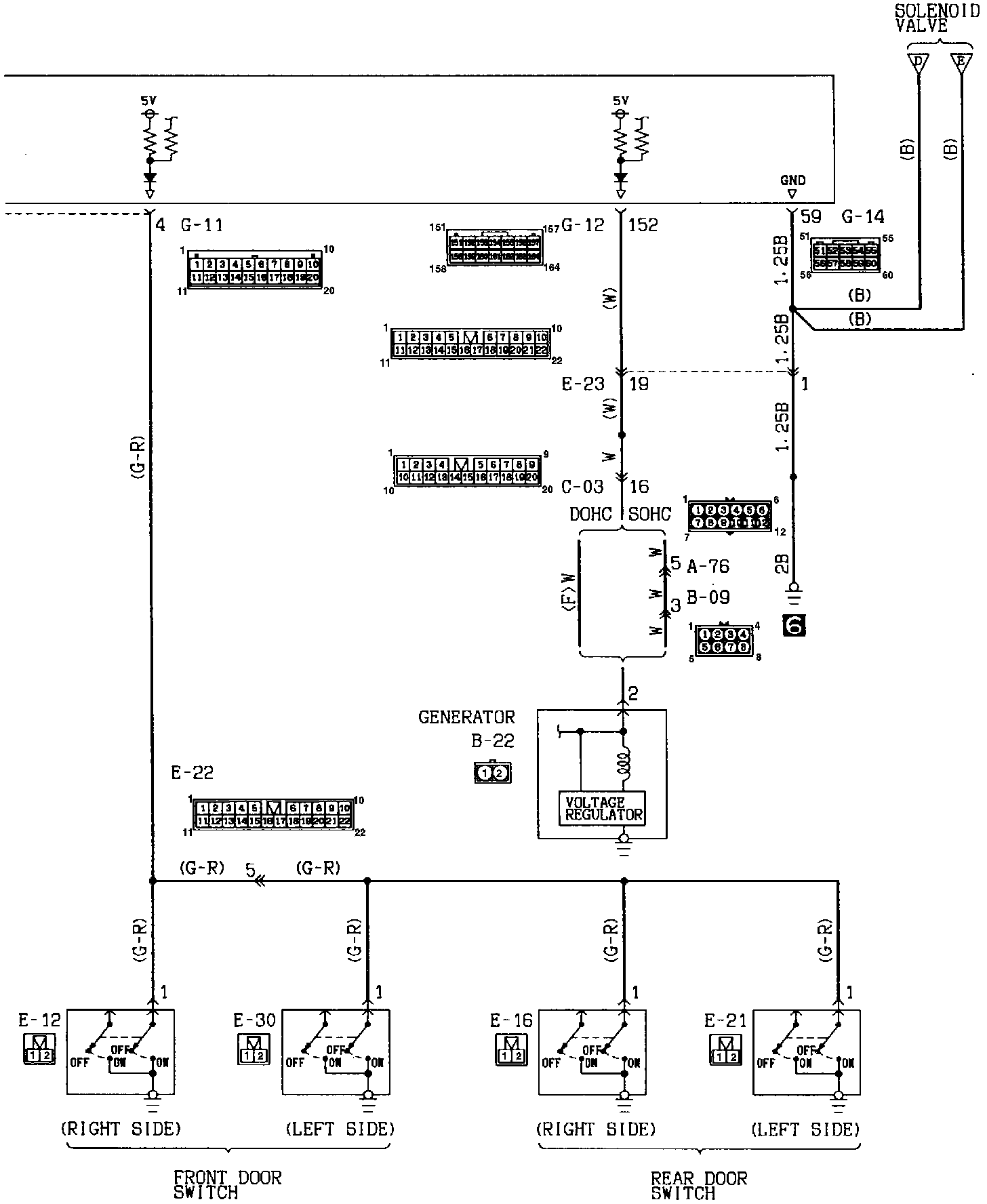

Active-Electronic Control Suspension Circuit (Part 2 Of 8):

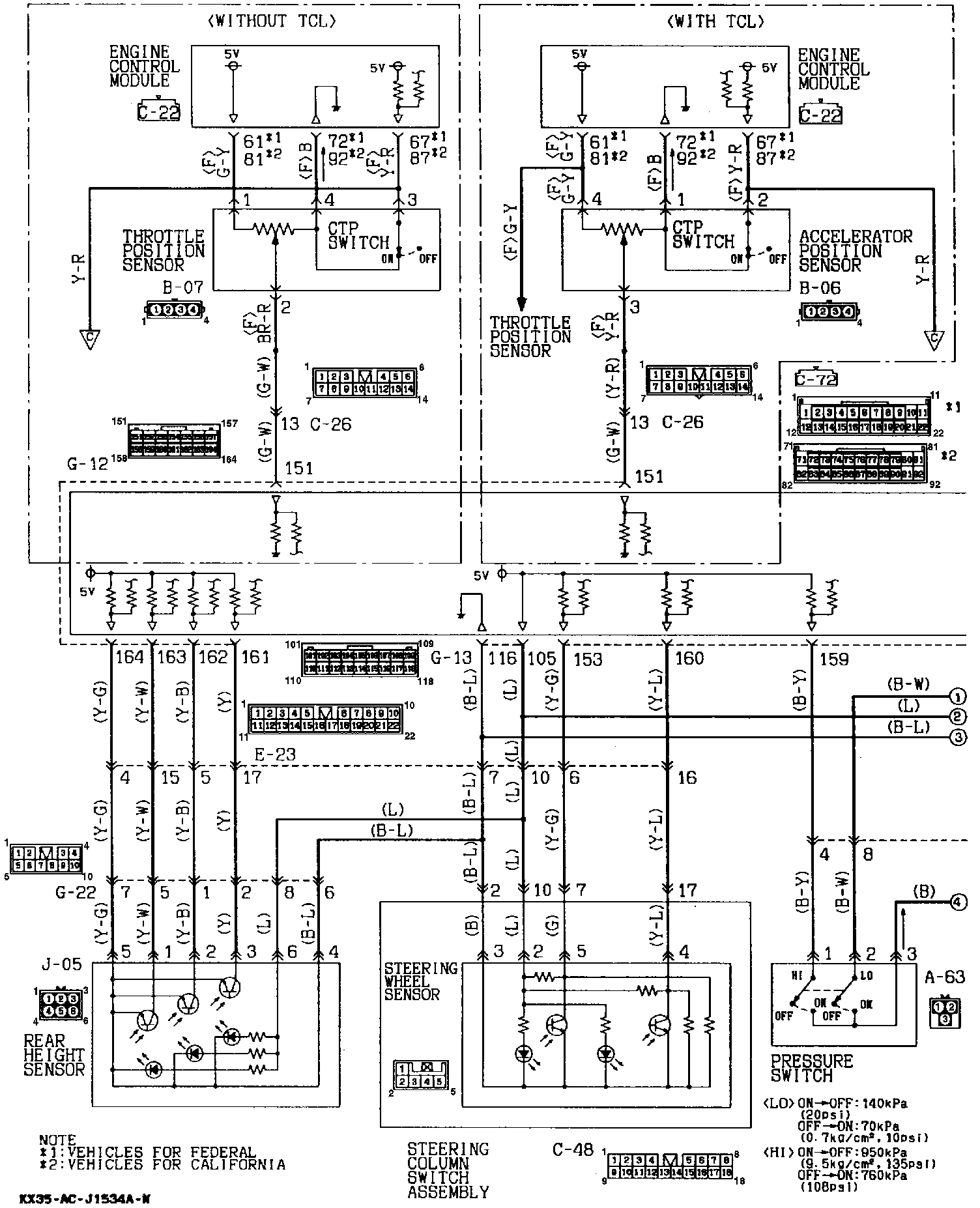

Active-Electronic Control Suspension Circuit (Part 3 Of 8):

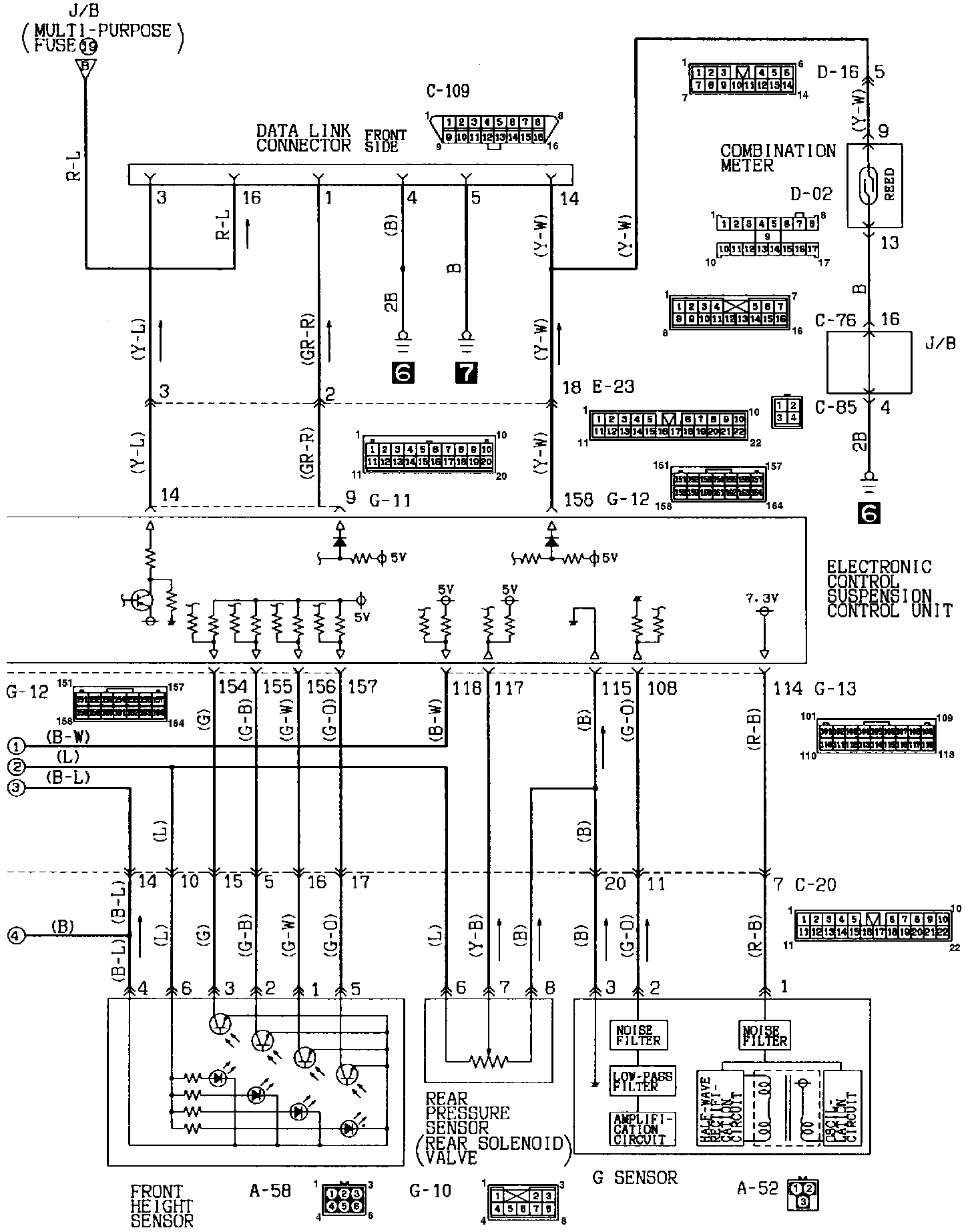

Active-Electronic Control Suspension Circuit (Part 4 Of 8):

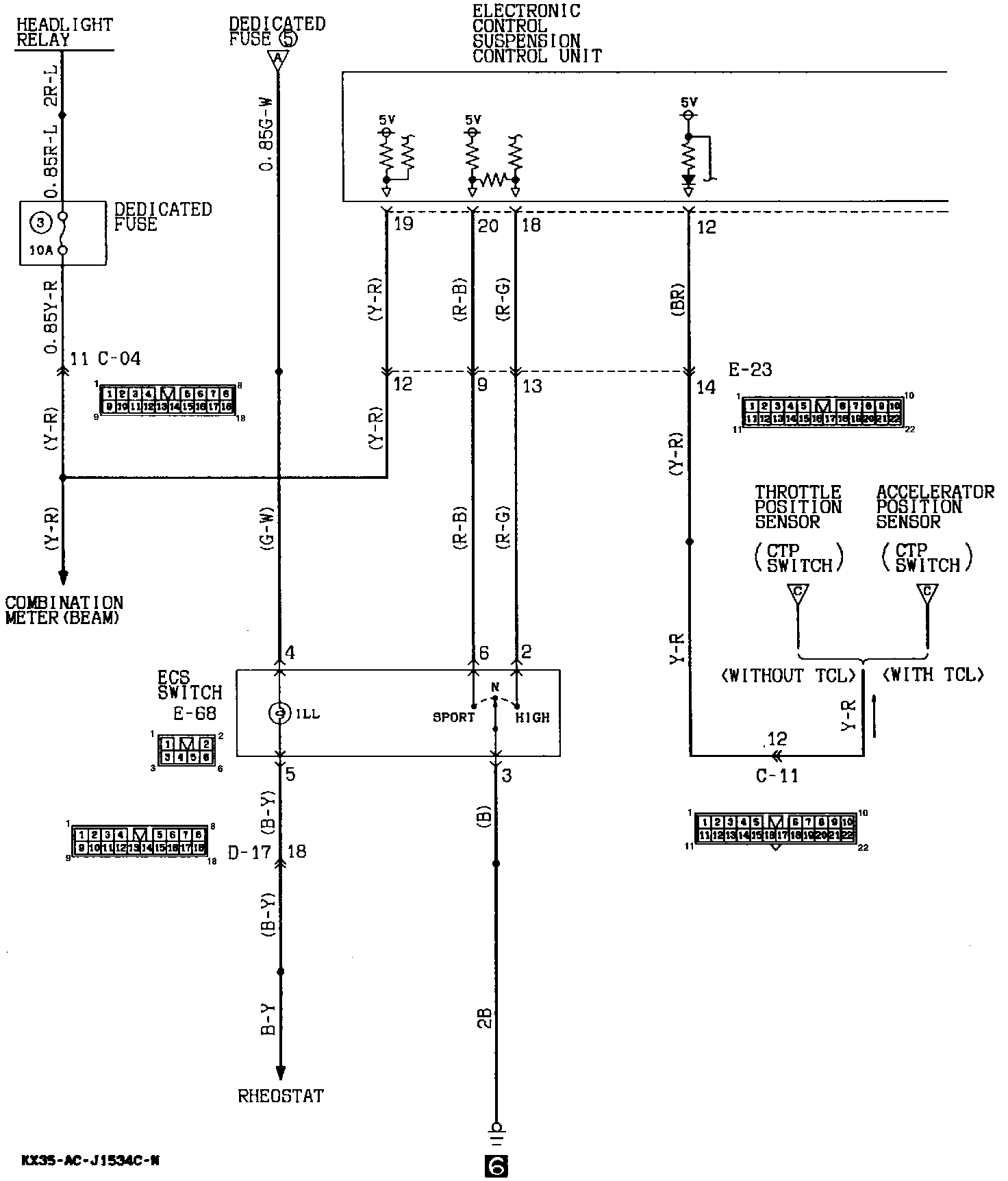

Active-Electronic Control Suspension Circuit (Part 5 Of 8):

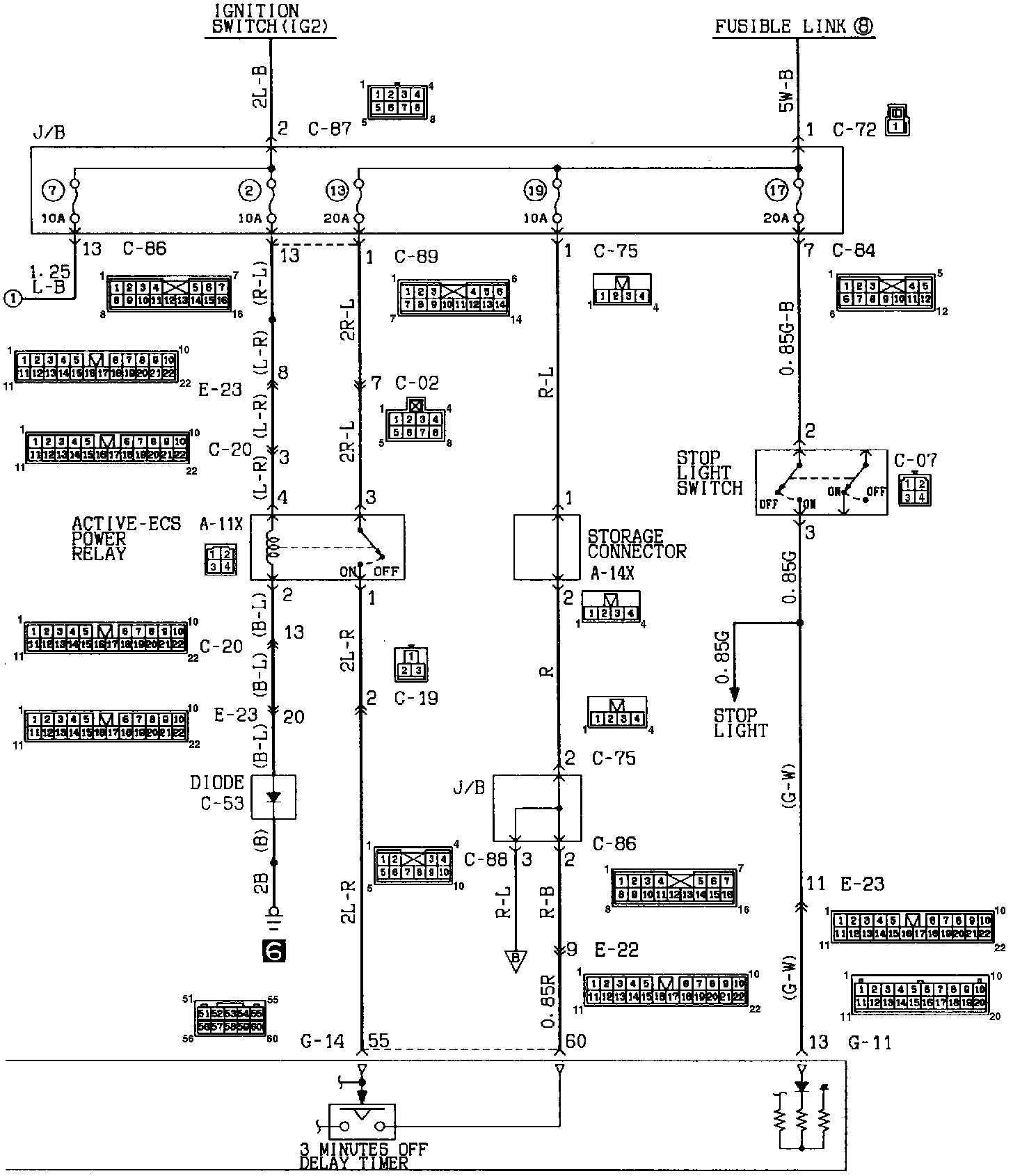

Active-Electronic Control Suspension Circuit (Part 6 Of 8):

Active-Electronic Control Suspension Circuit (Part 7 Of 8):

Active-Electronic Control Suspension Circuit (Part 8 Of 8):
