Component Locations

MFI Component Locations DOHC Federal

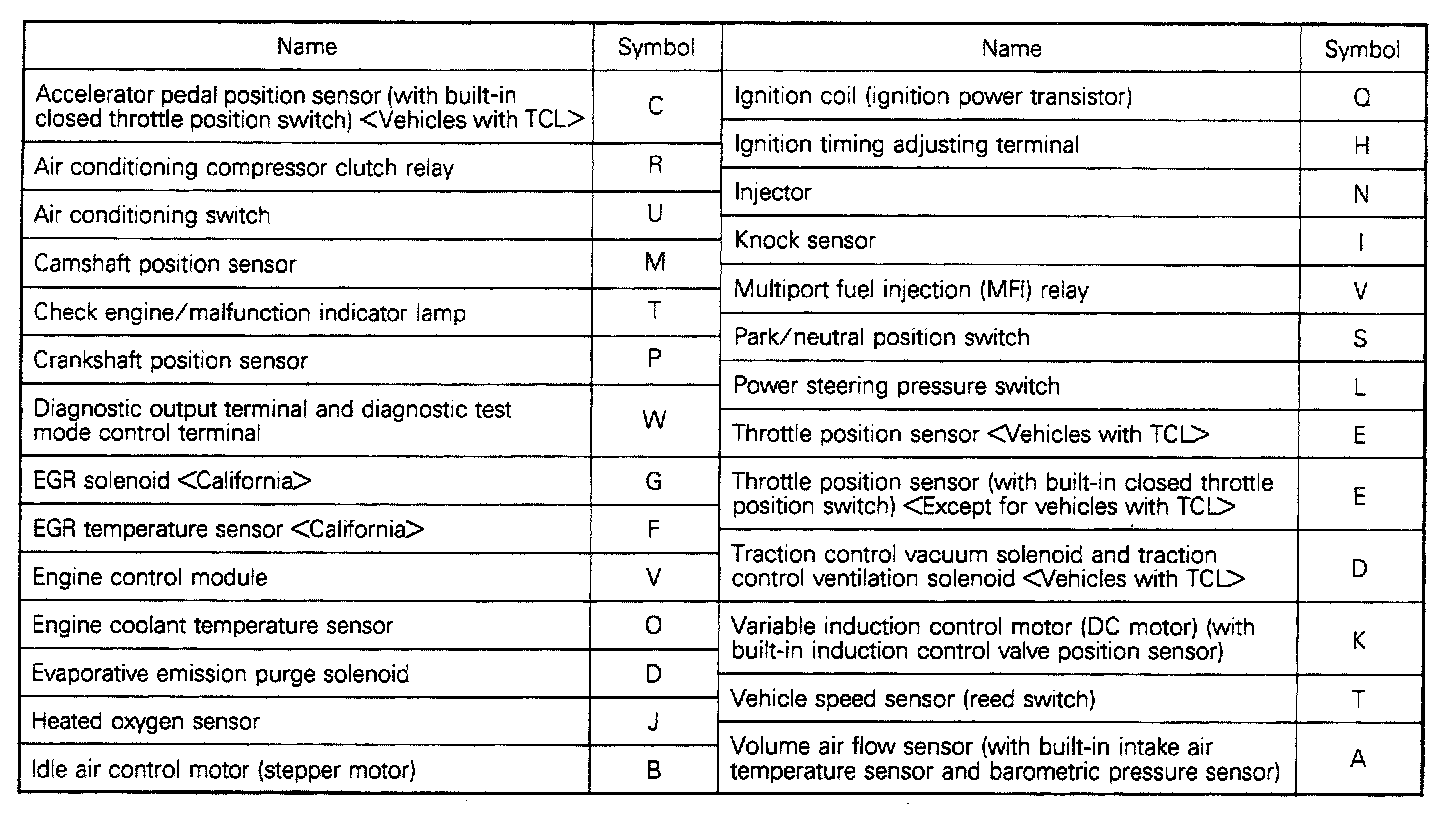

Component Location Legend DOHC:

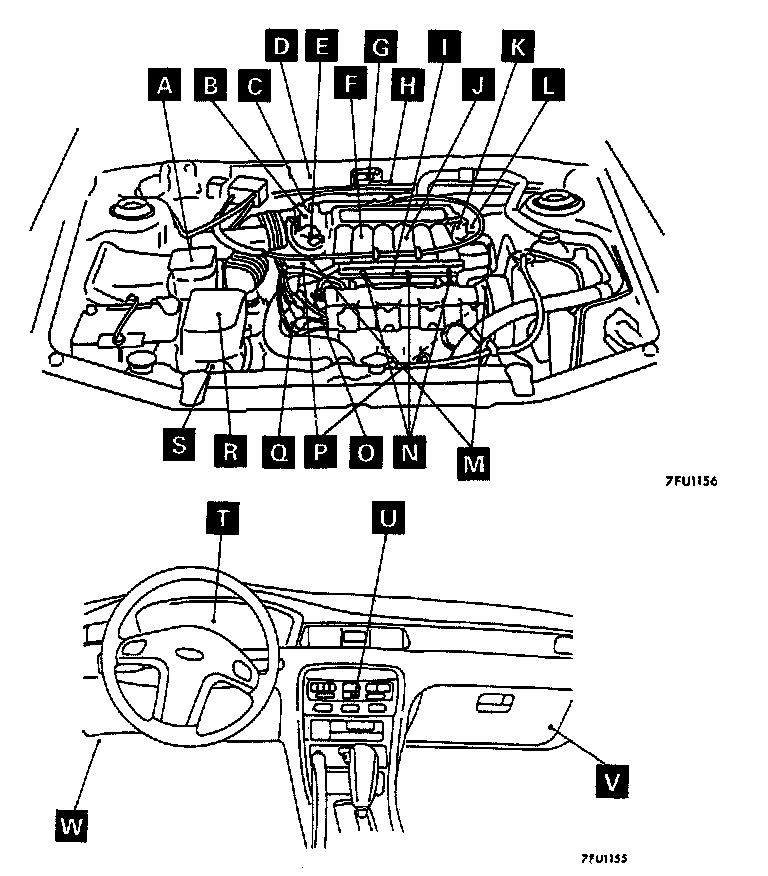

Component Locations:

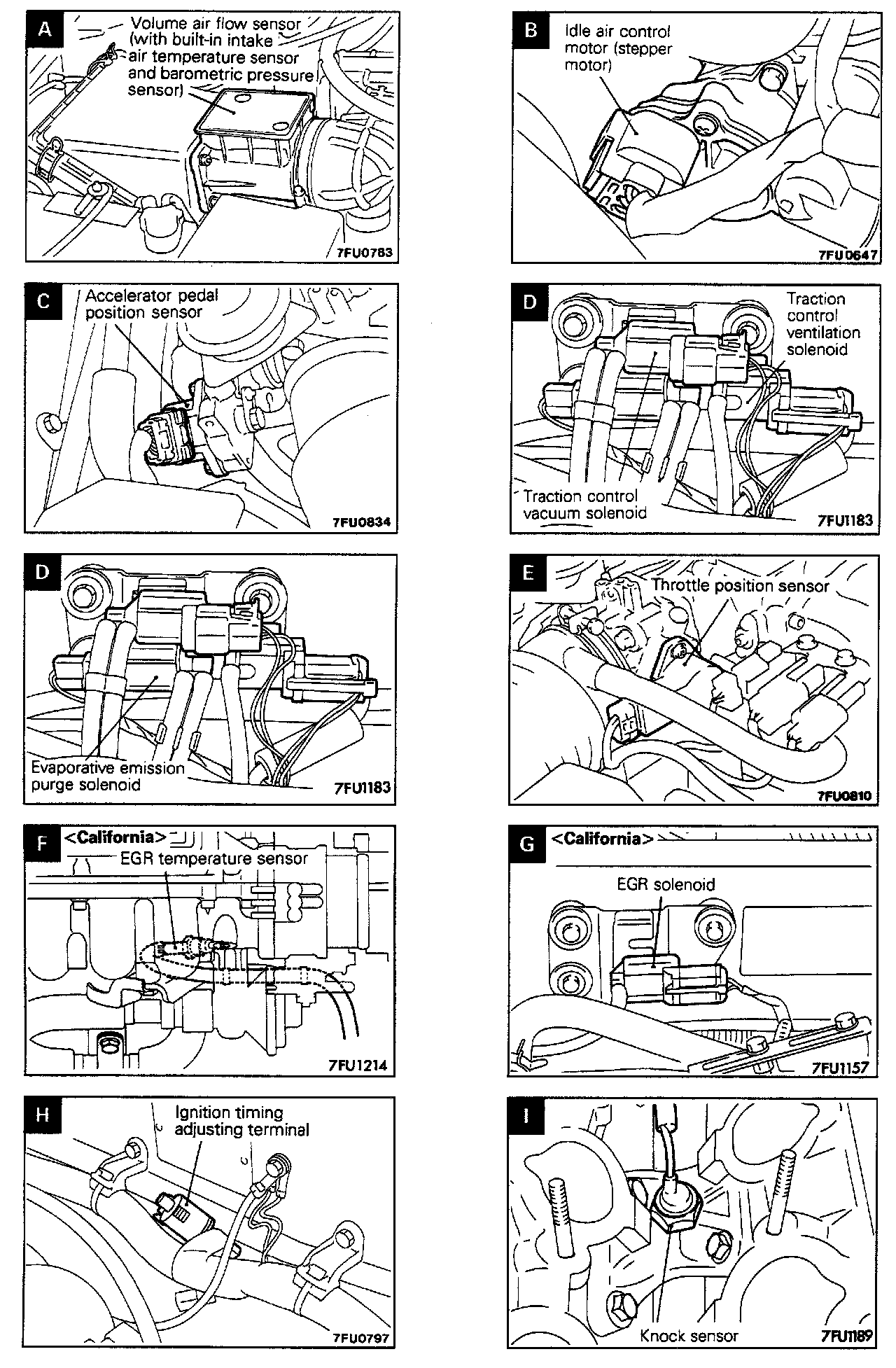

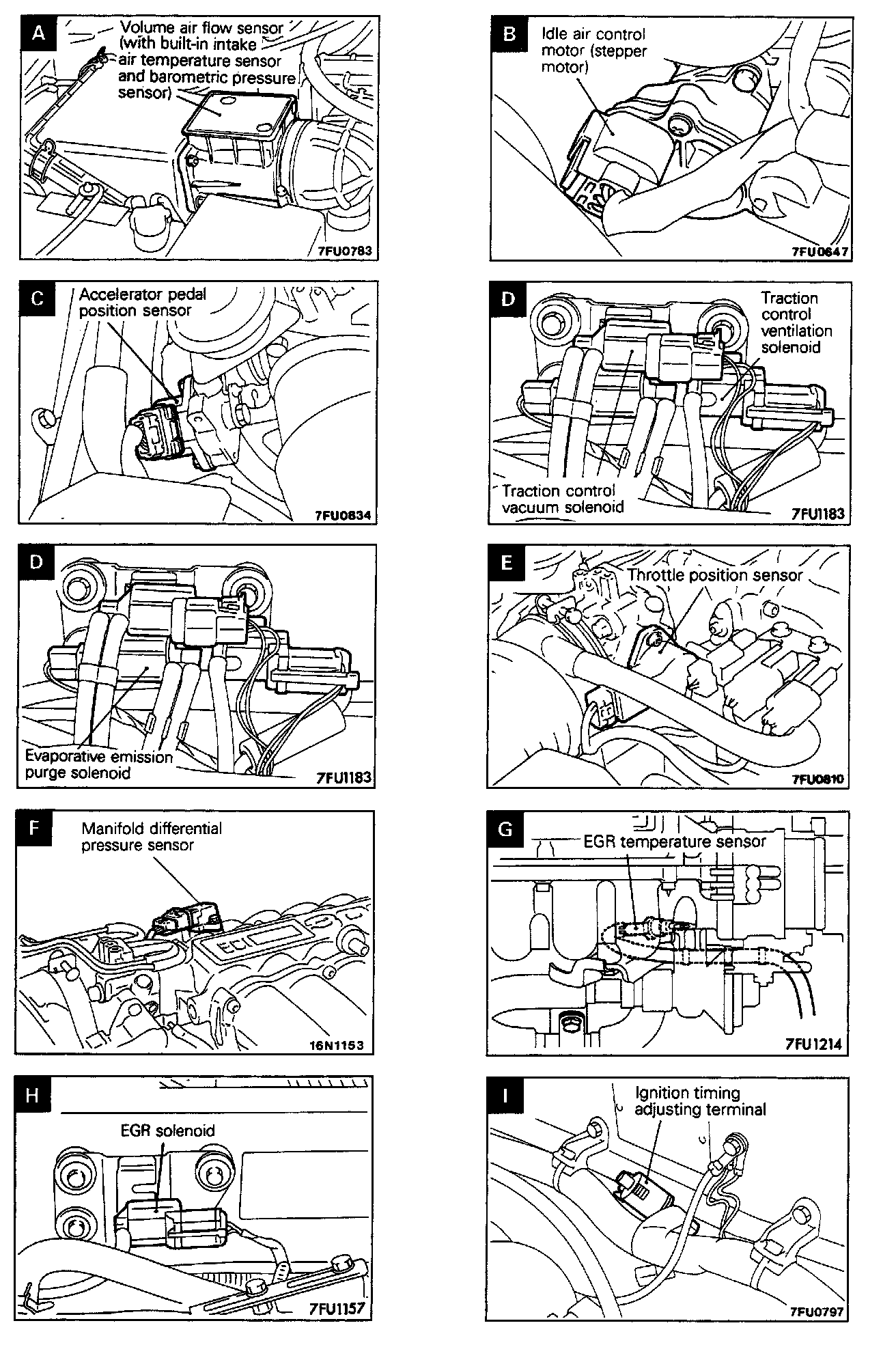

Component Location Images A-I:

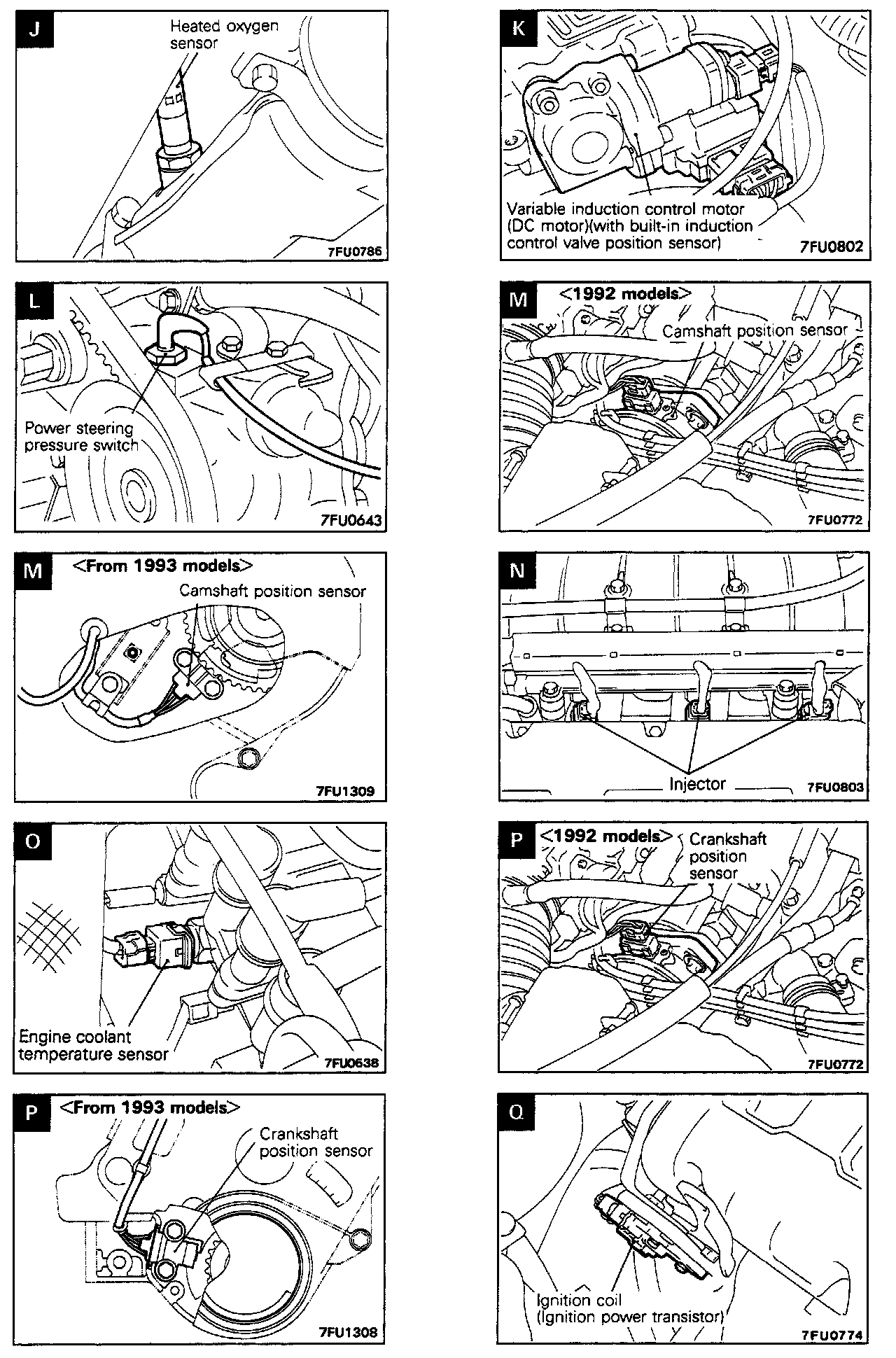

Component Location Images J-Q:

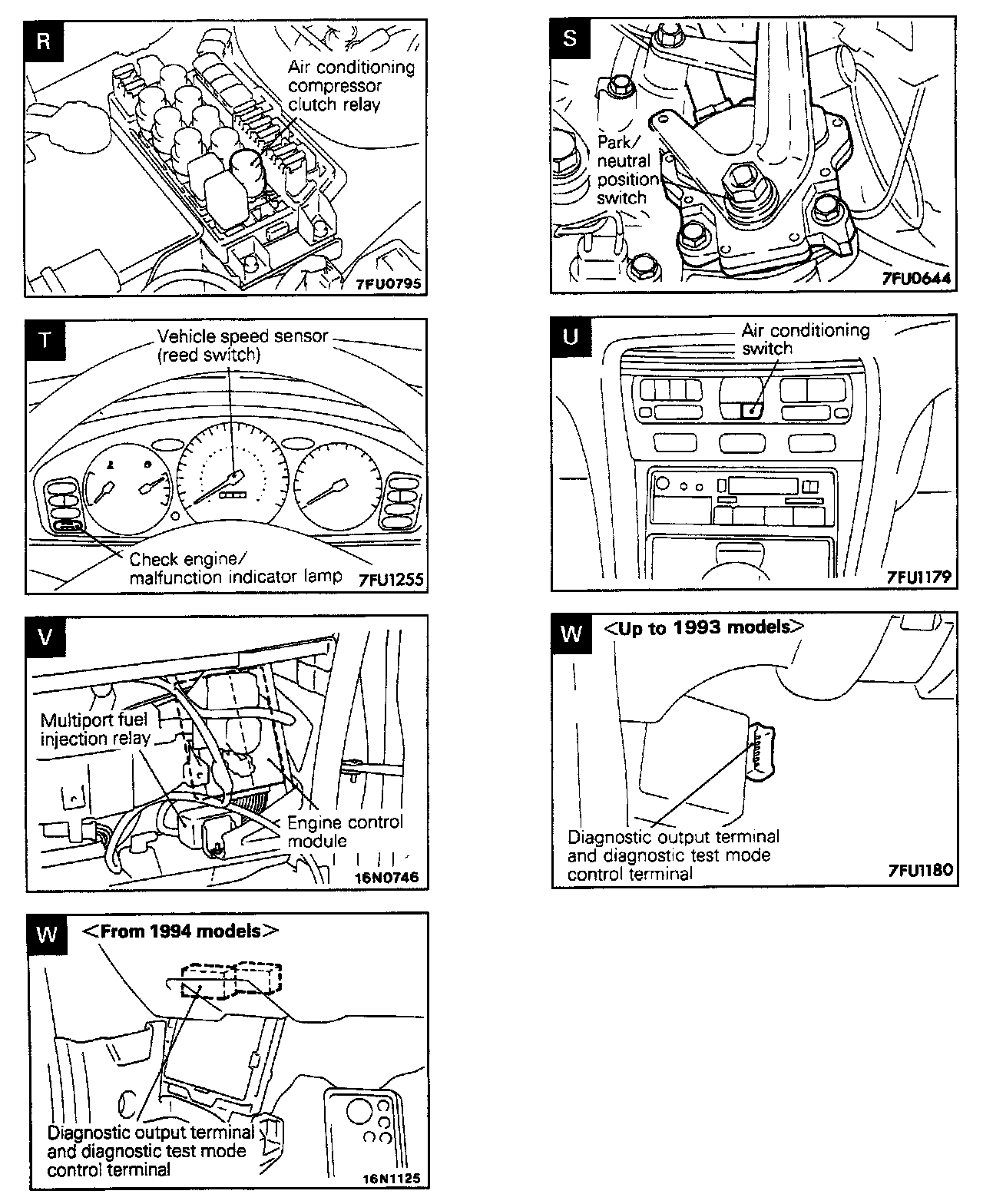

Component Location Images R-W:

MFI Component Locations DOHC California

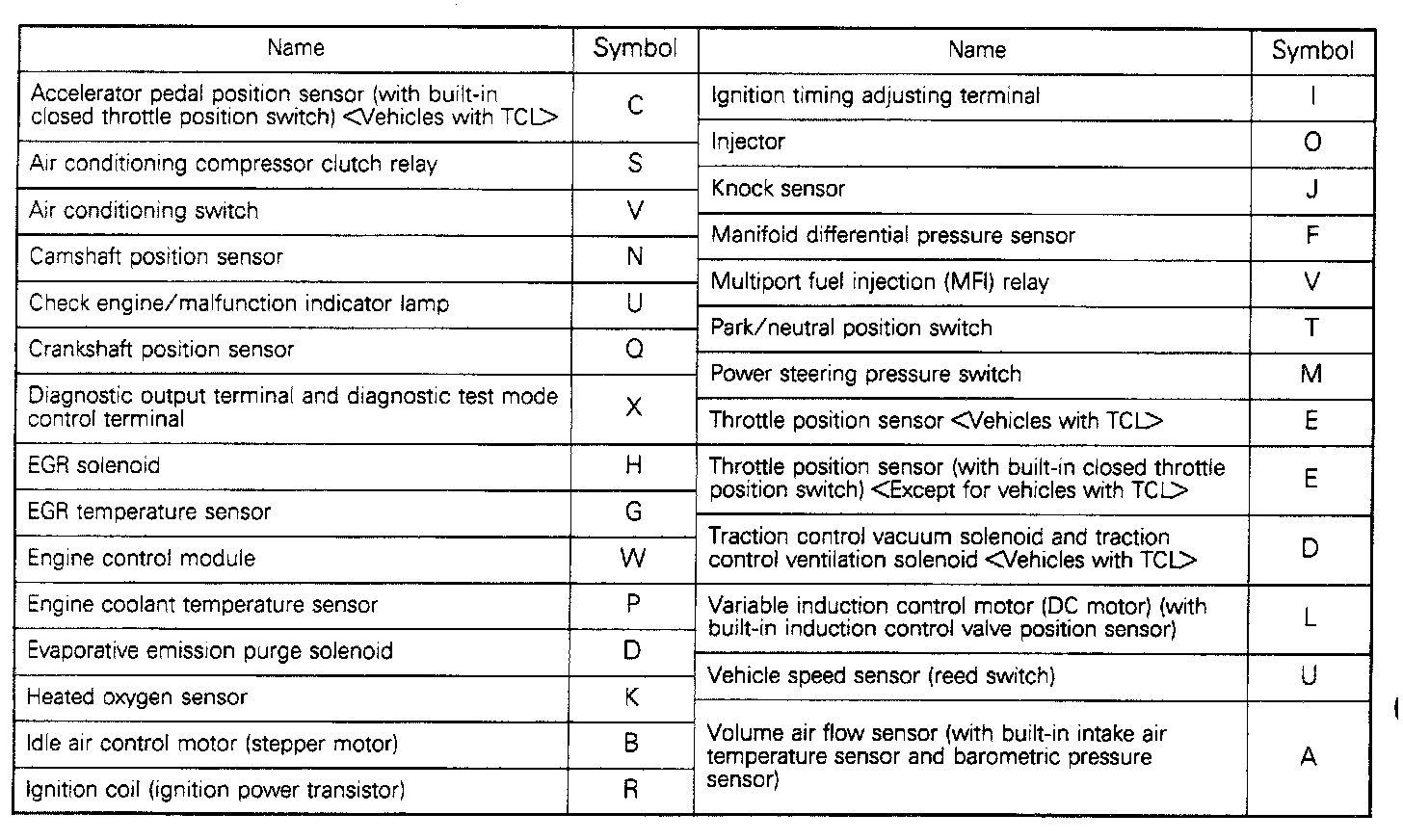

Component Location Legend DOHC:

Component Locations:

Component Location Images A-I:

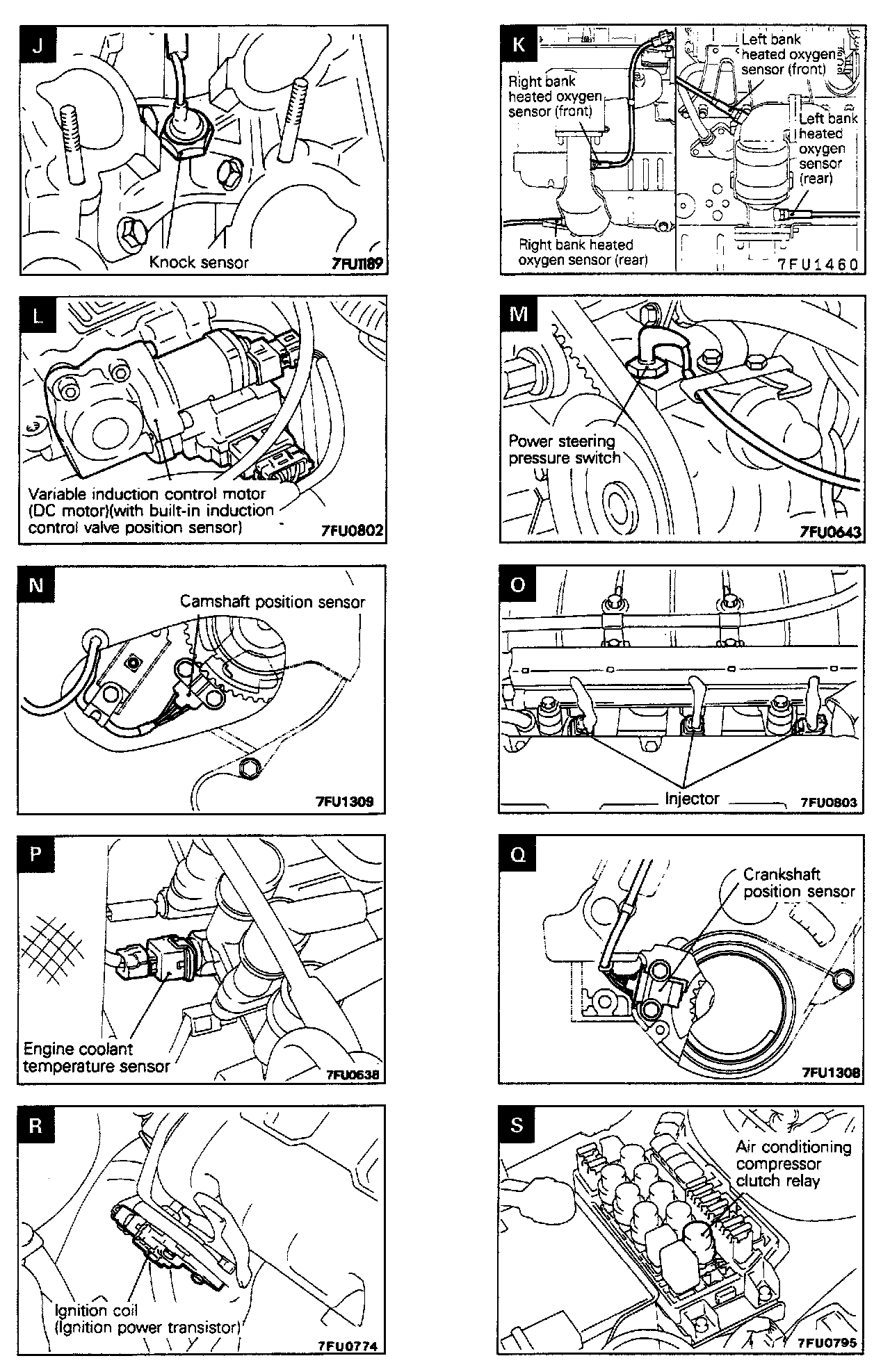

Component Location Images J-S:

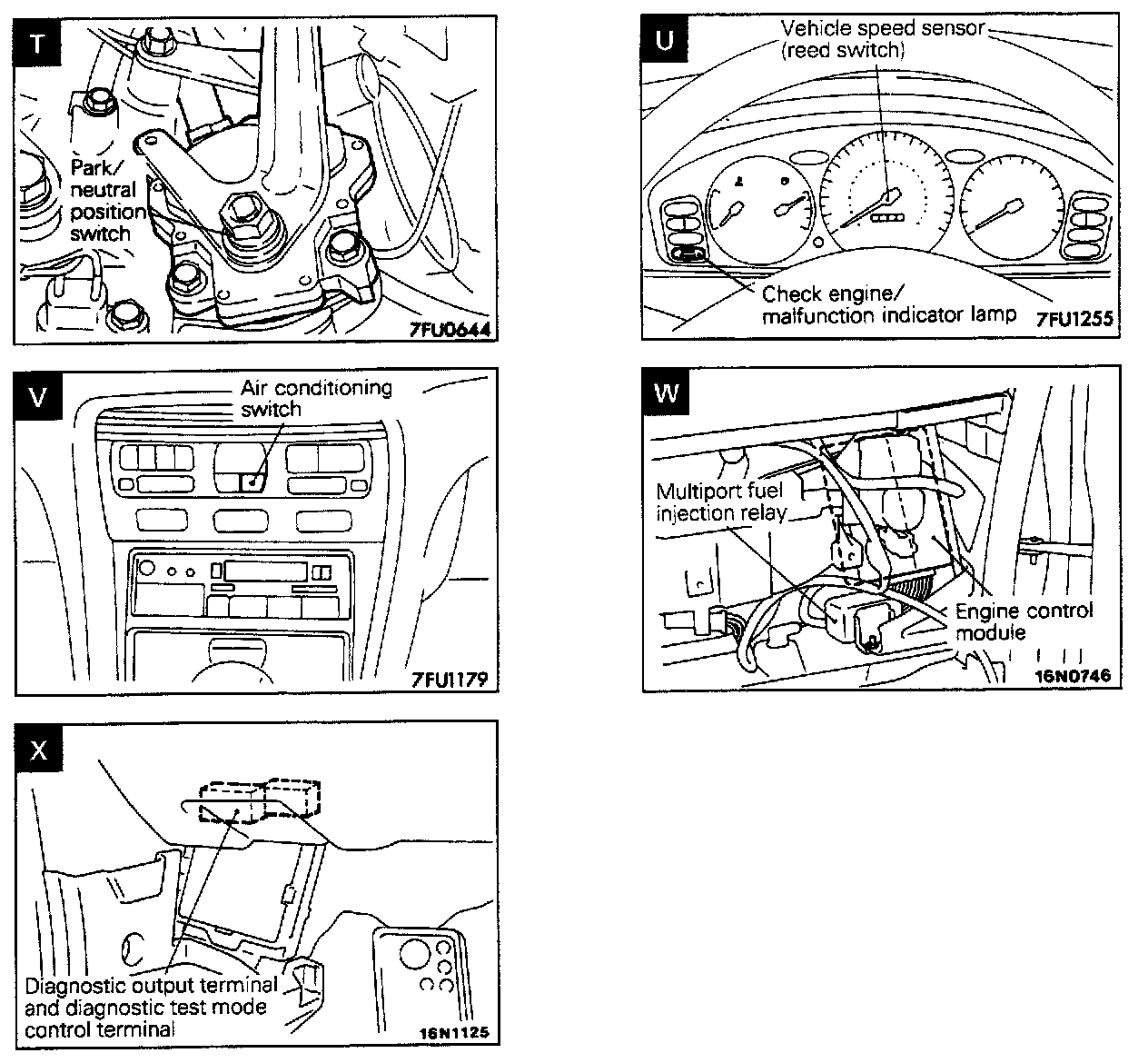

Component Images T-X:
