Home
>>
Mitsubishi
>>
1994
>>
Mirage L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Dimmer Switch
>>
Testing and Inspection
>>
Column Switch Inspection
Column Switch Inspection

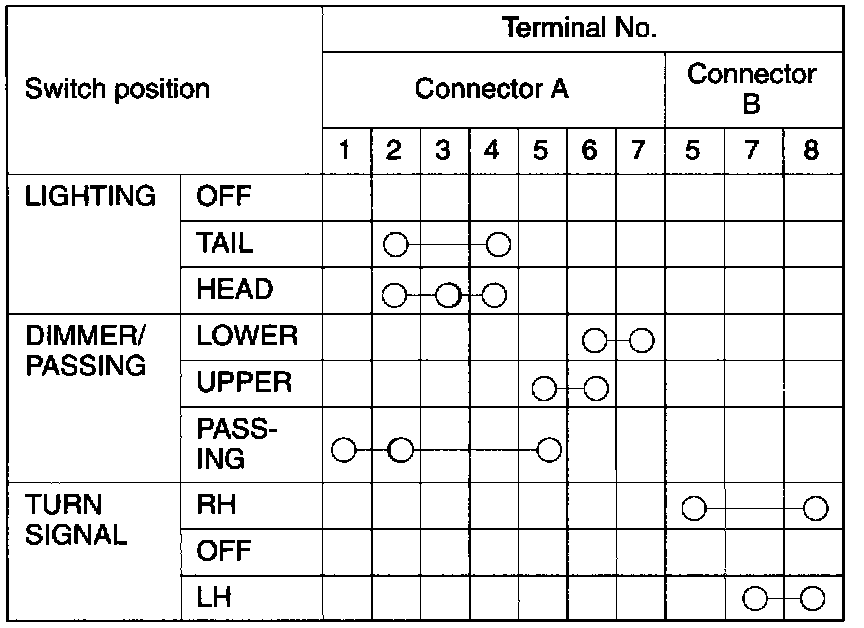

Column Switch Inspection:
Column Switch Inspection:
Operate the Switch and check for continuity between the terminals.
