Electrical Diagrams

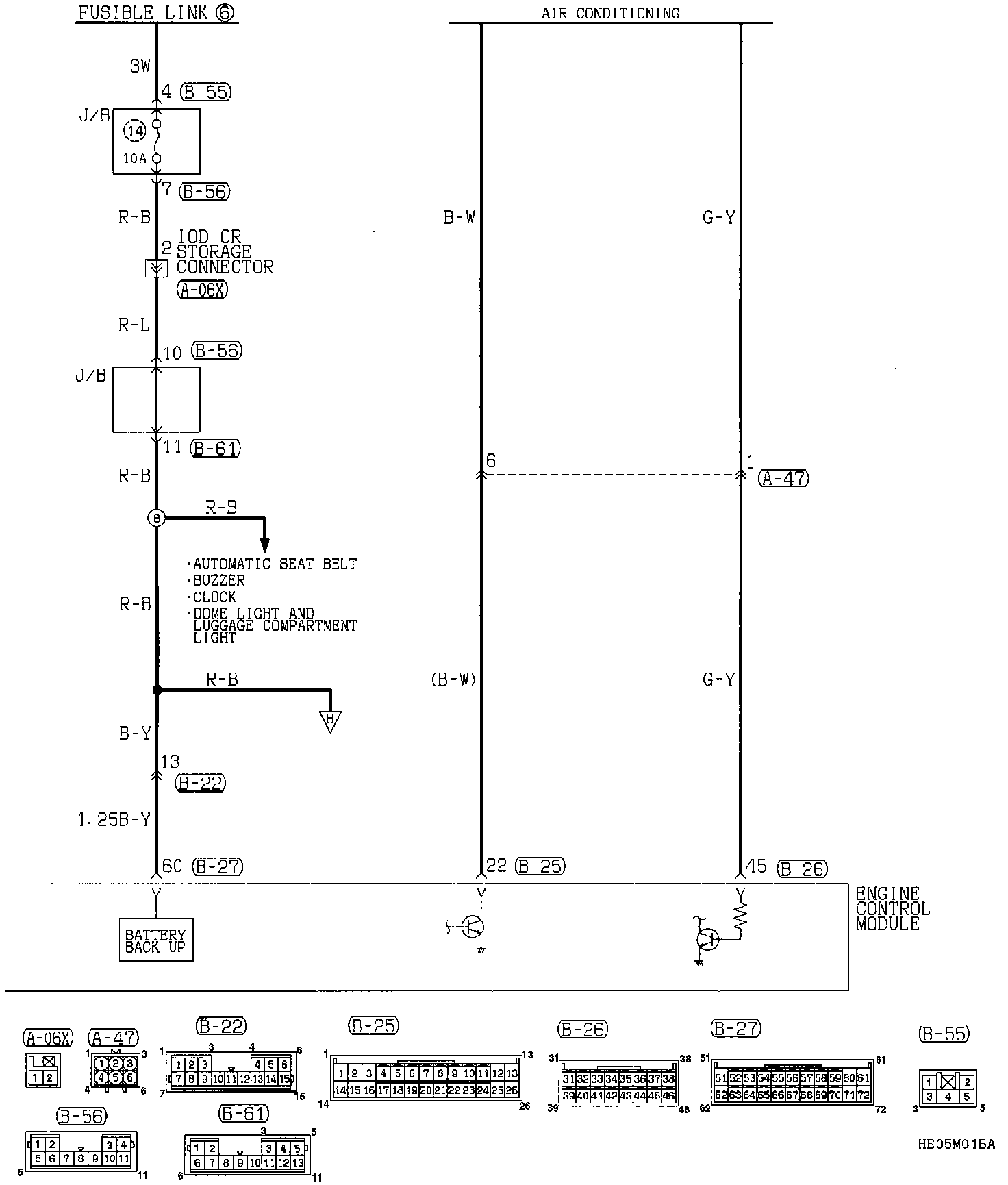

MFI System (Part 1 Of 6):

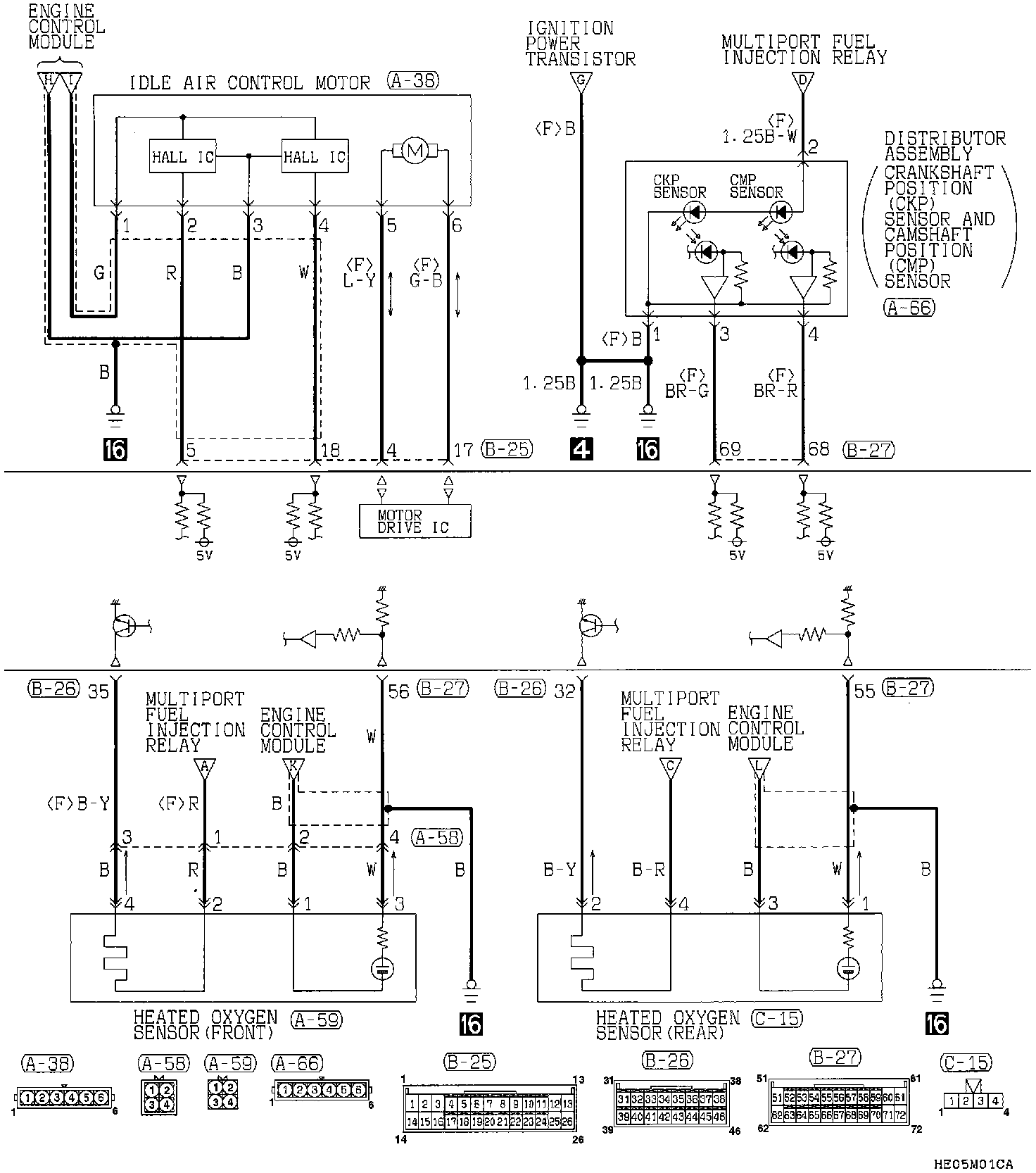

MFI System (Part 2 Of 6):

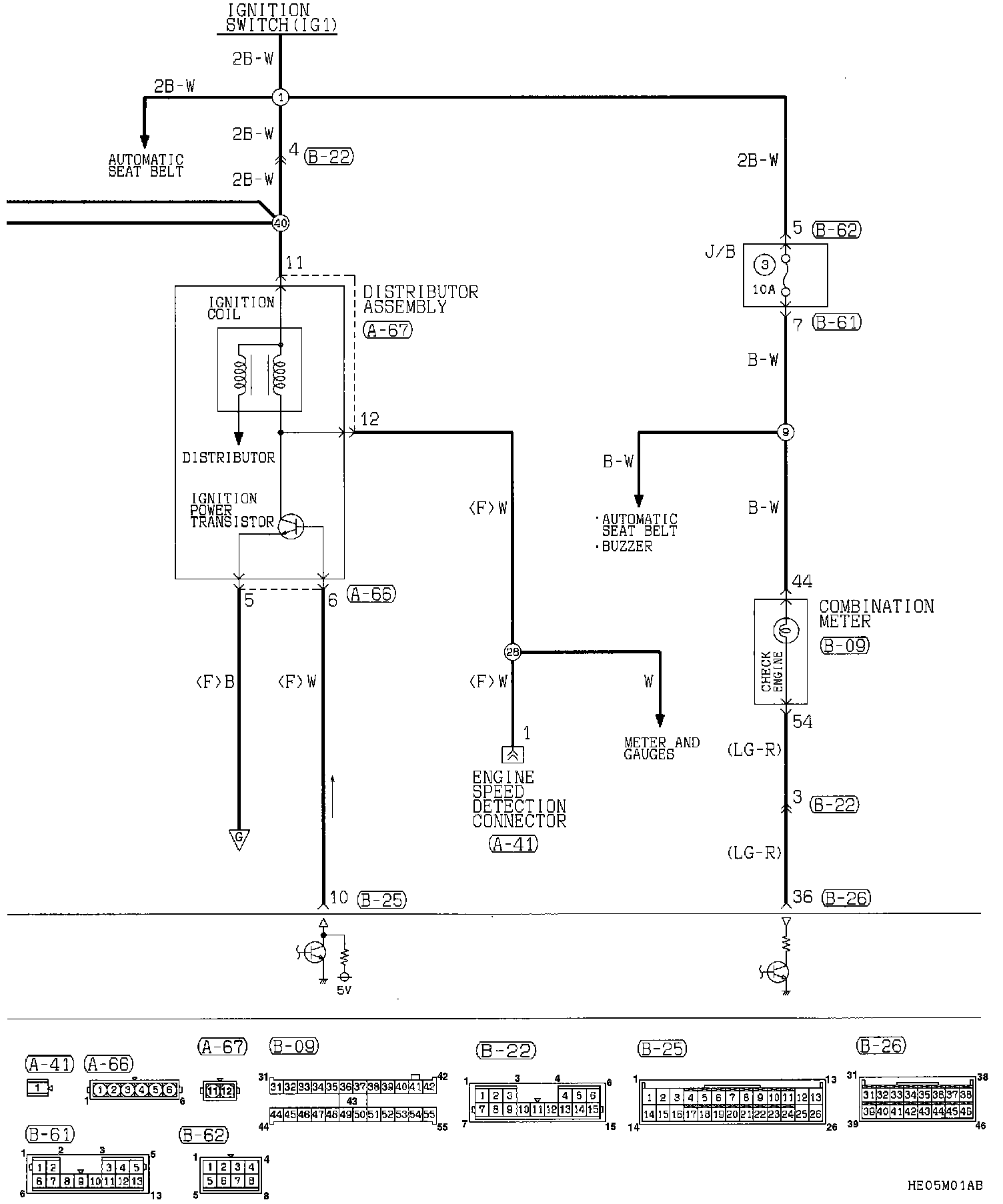

MFI System (Part 3 Of 6):

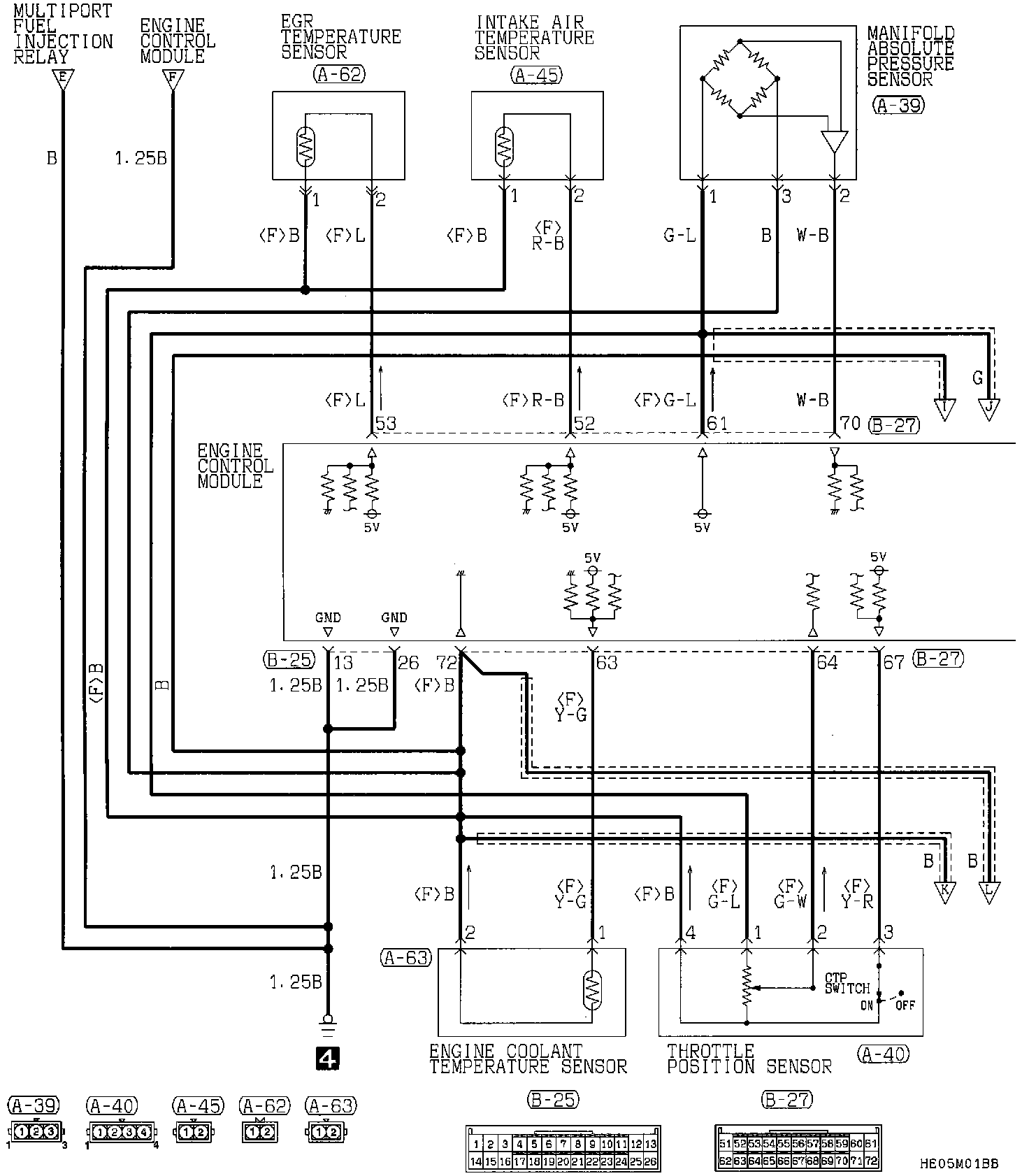

MFI System (Part 4 Of 6):

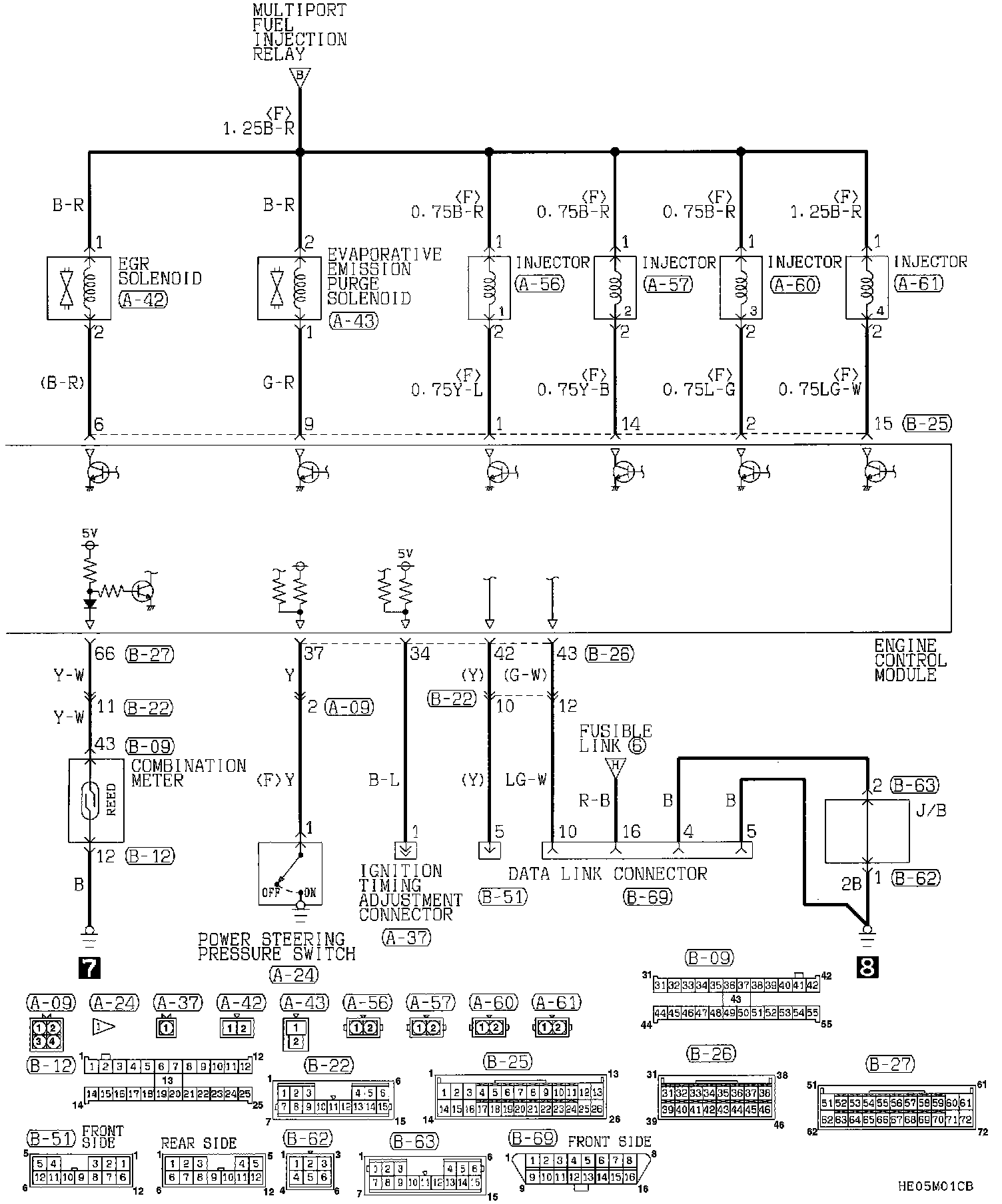

MFI System (Part 5 Of 6):

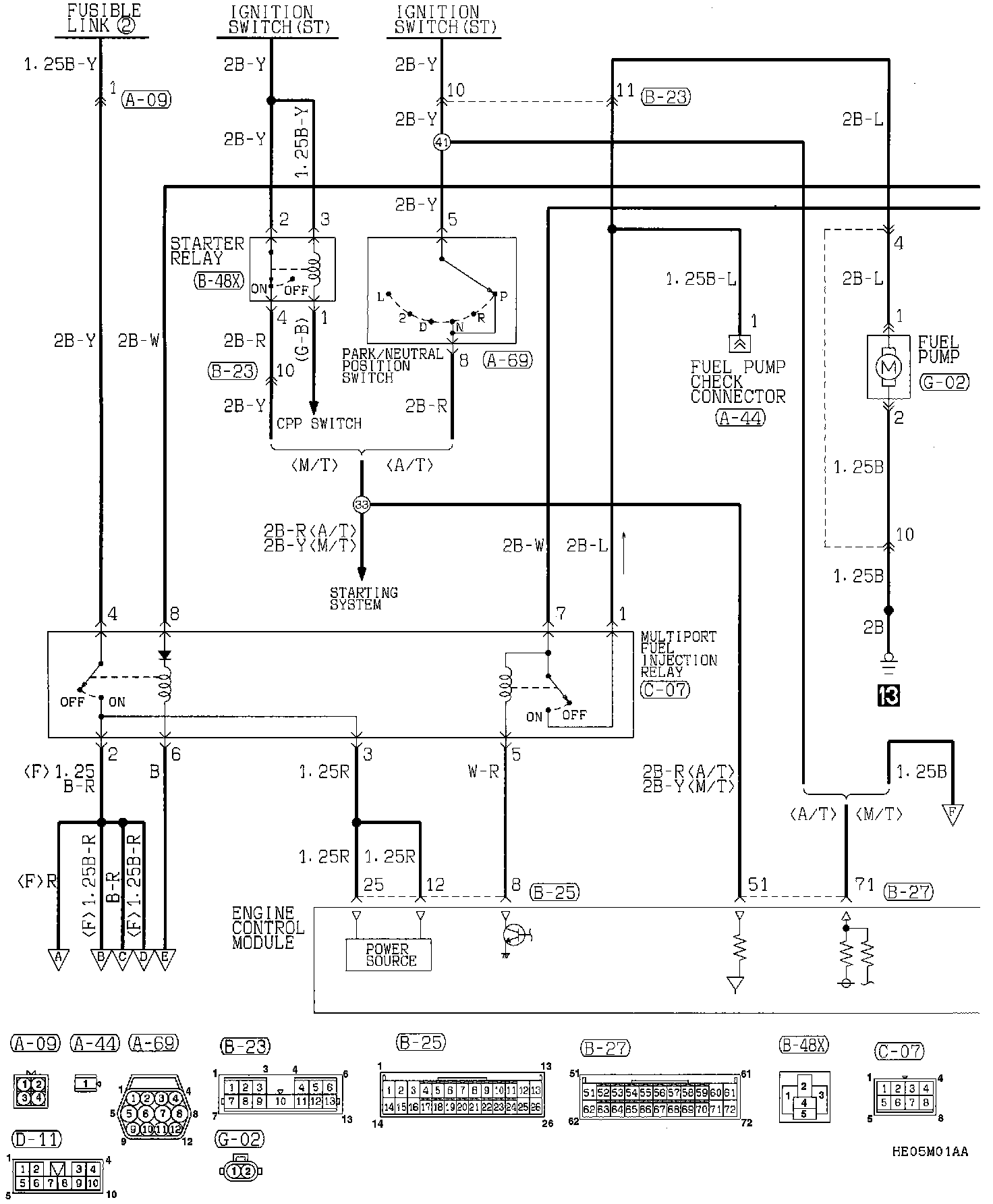

MFI System (Part 6 Of 6):
