Electrical Diagrams

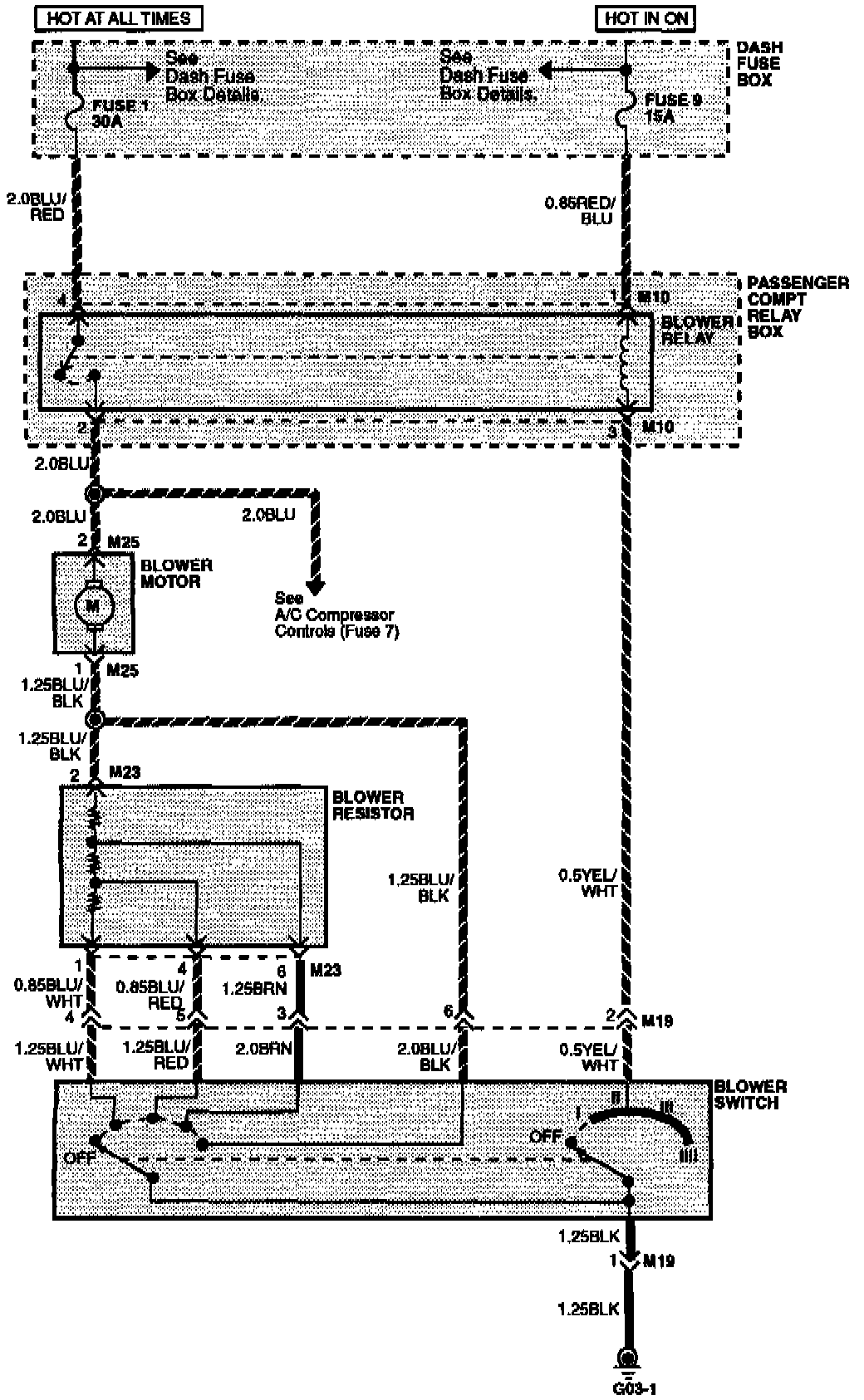

Blower Controls Wiring Diagram:

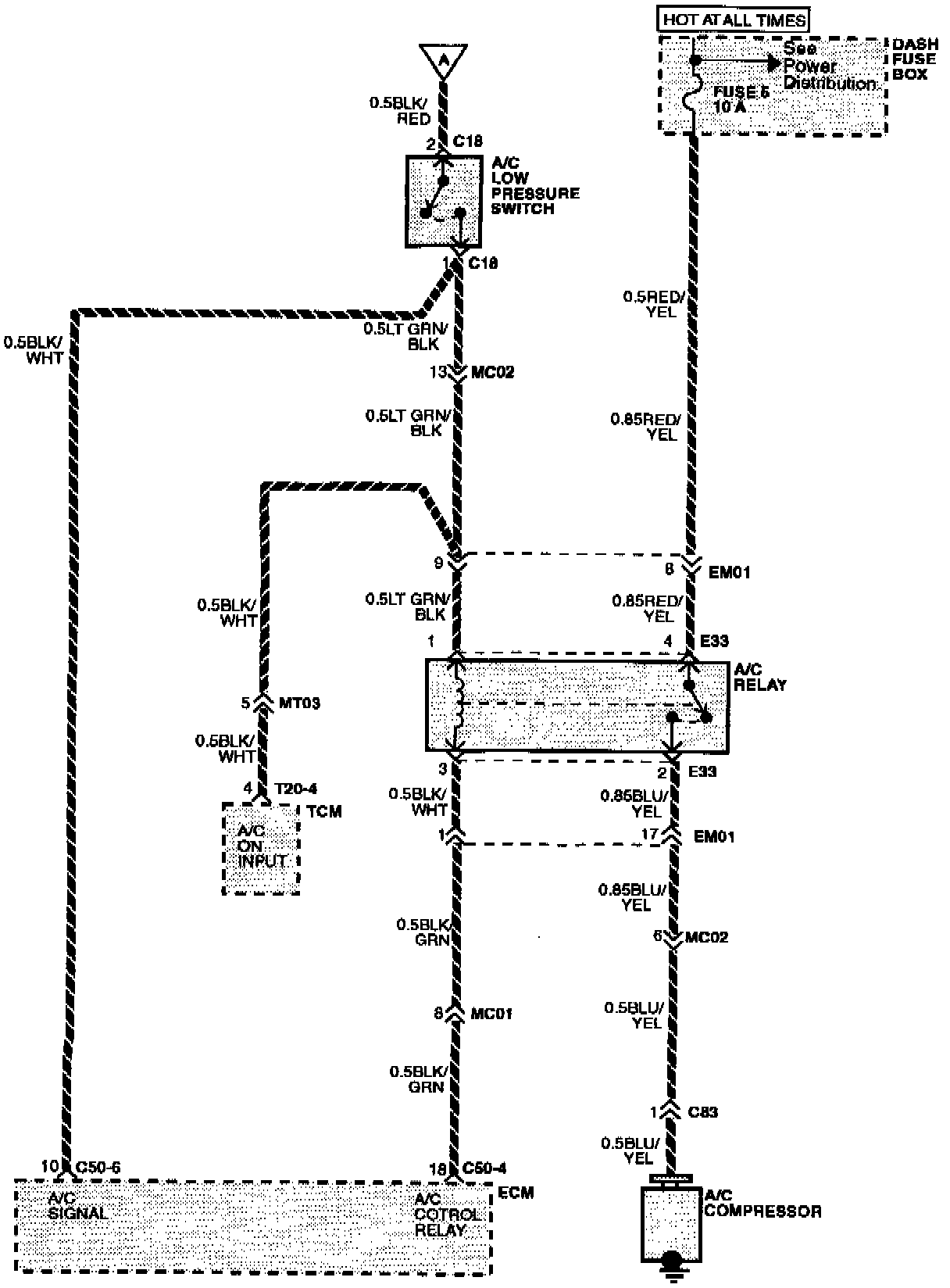

A/C Compressor Controls Wiring Diagram:

A/C Compressor Controls Wiring Diagram:
