Ignition System: Service and Repair

Ignition System - Removal And Installation:

Ignition System - Removal And Installation:

Pre-Removal
- Timing Belt cover

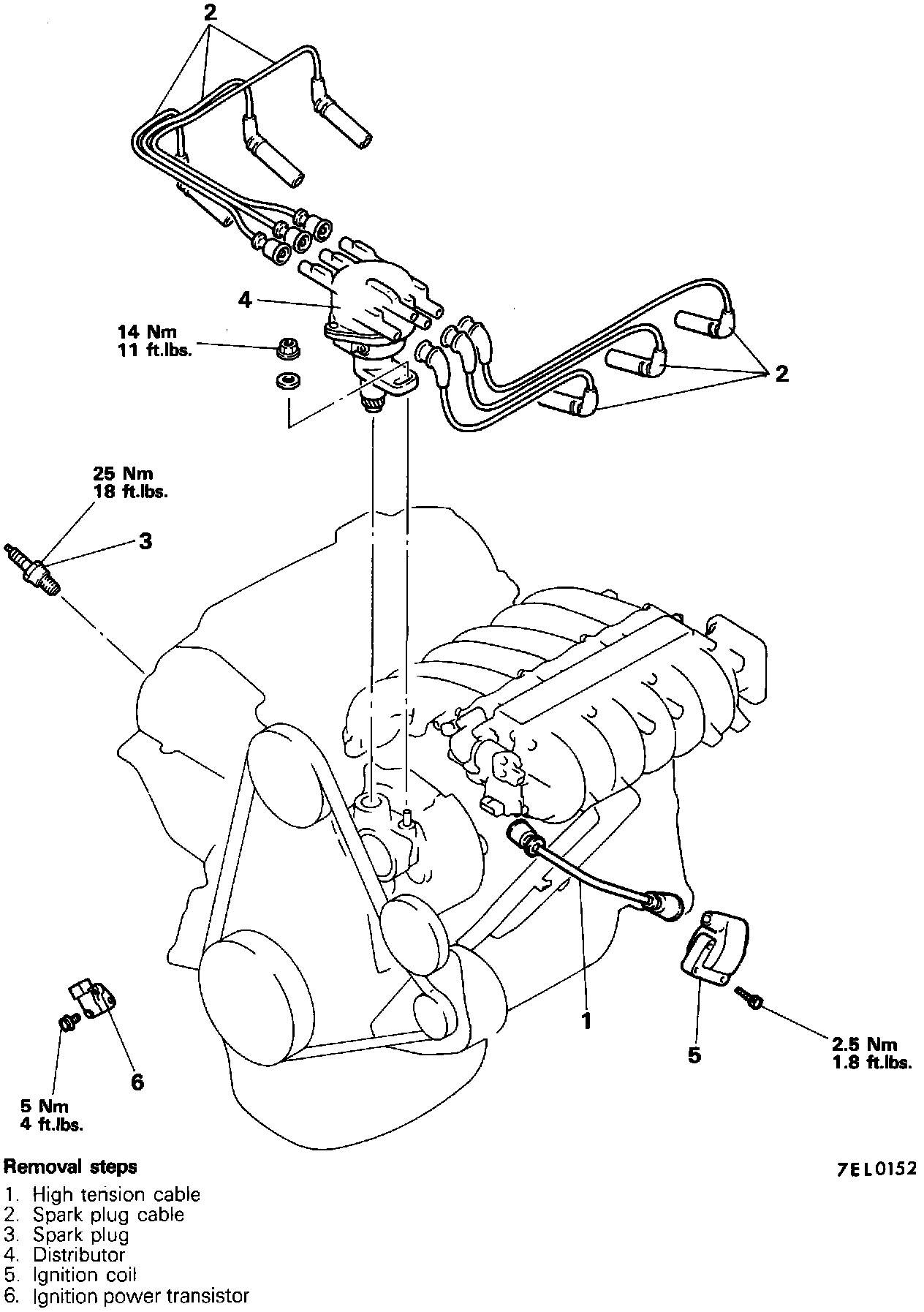

REMOVE
1. High tension cable
2. Spark plug cable
3. Spark plug
4. Distributor
5. Ignition coil
6. Ignition power transistor

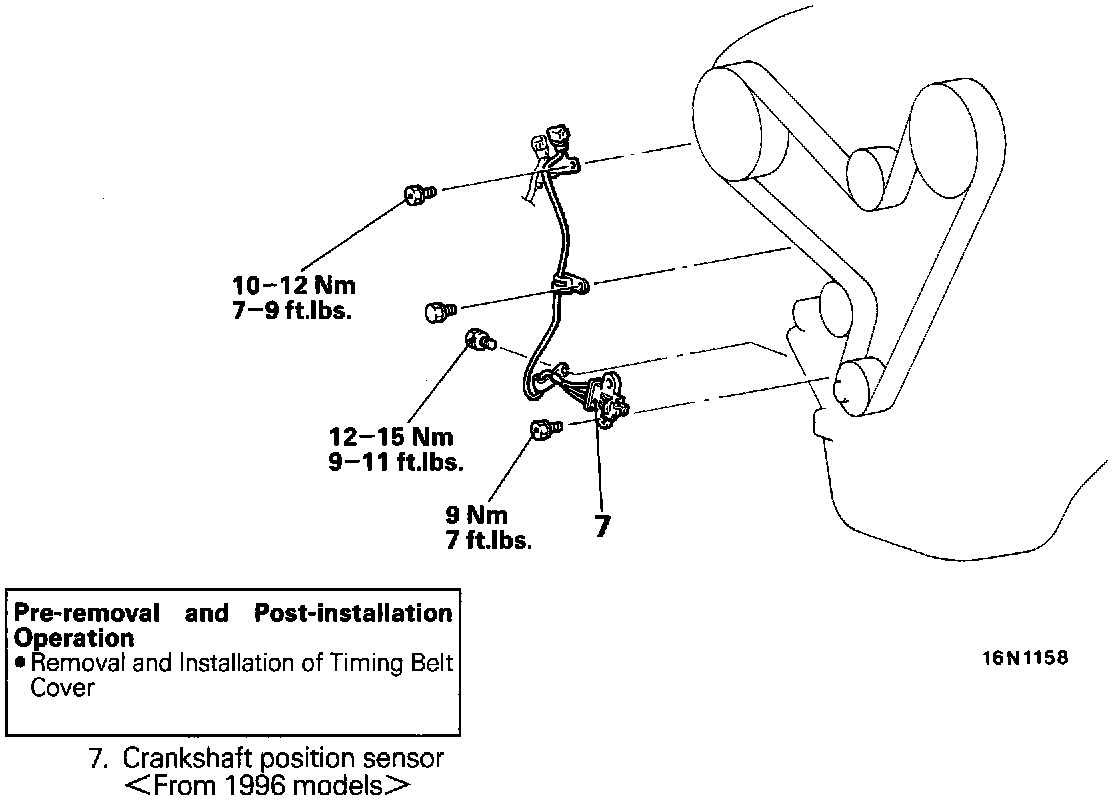

7. Crankshaft Position Sensor

INSTALL
1. Crankshaft Position Sensor
2. Ignition power transistor
3. Ignition coil
4. Distributor
5. Spark plug
6. Spark plug cable
7. High tension cable
Post Installation
- Timing Belt cover
