Crankshaft Position Sensor: Service and Repair

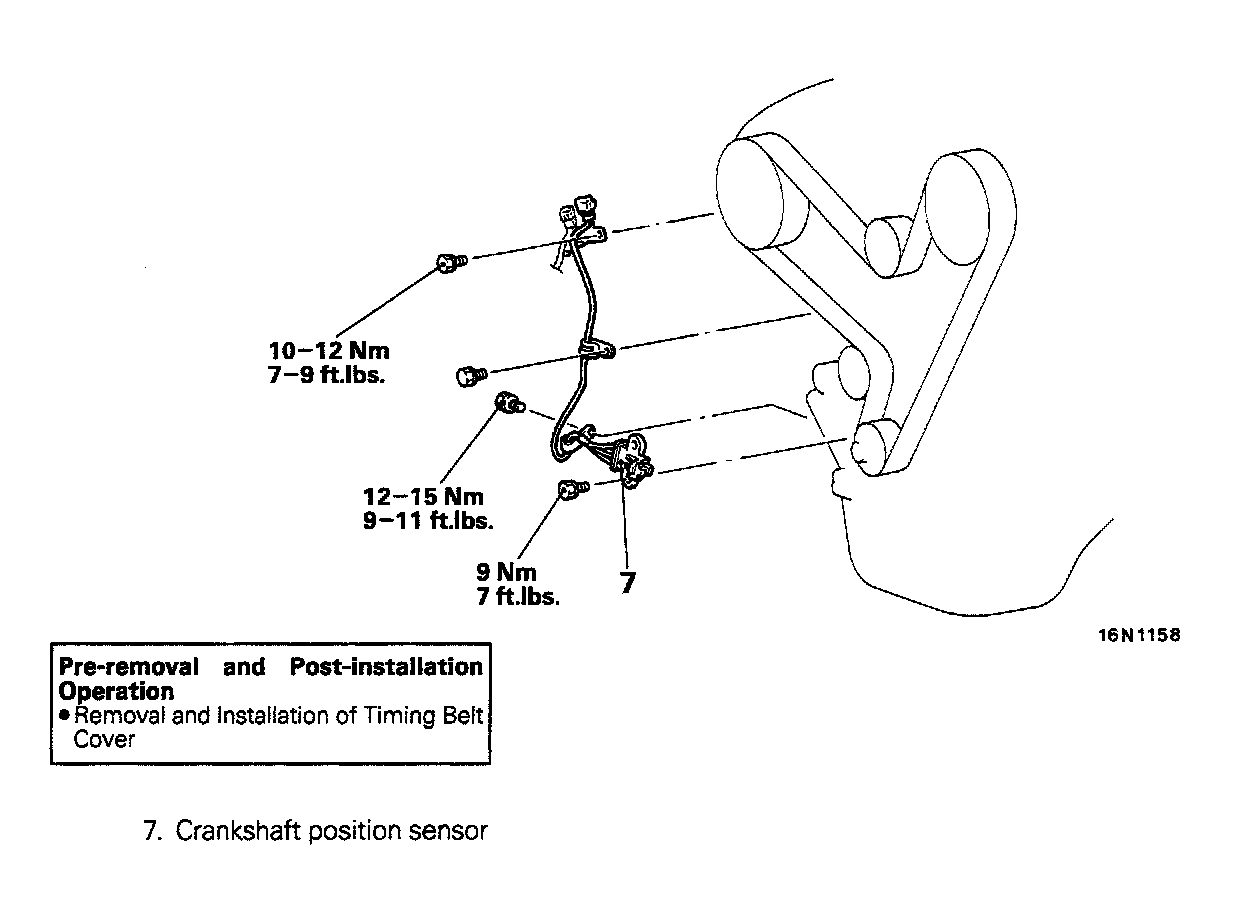

Crankshaft Position Sensor
Installation Note: Removal of Timing Belt Cover is necessary to access sensor.
