Torque Specifications

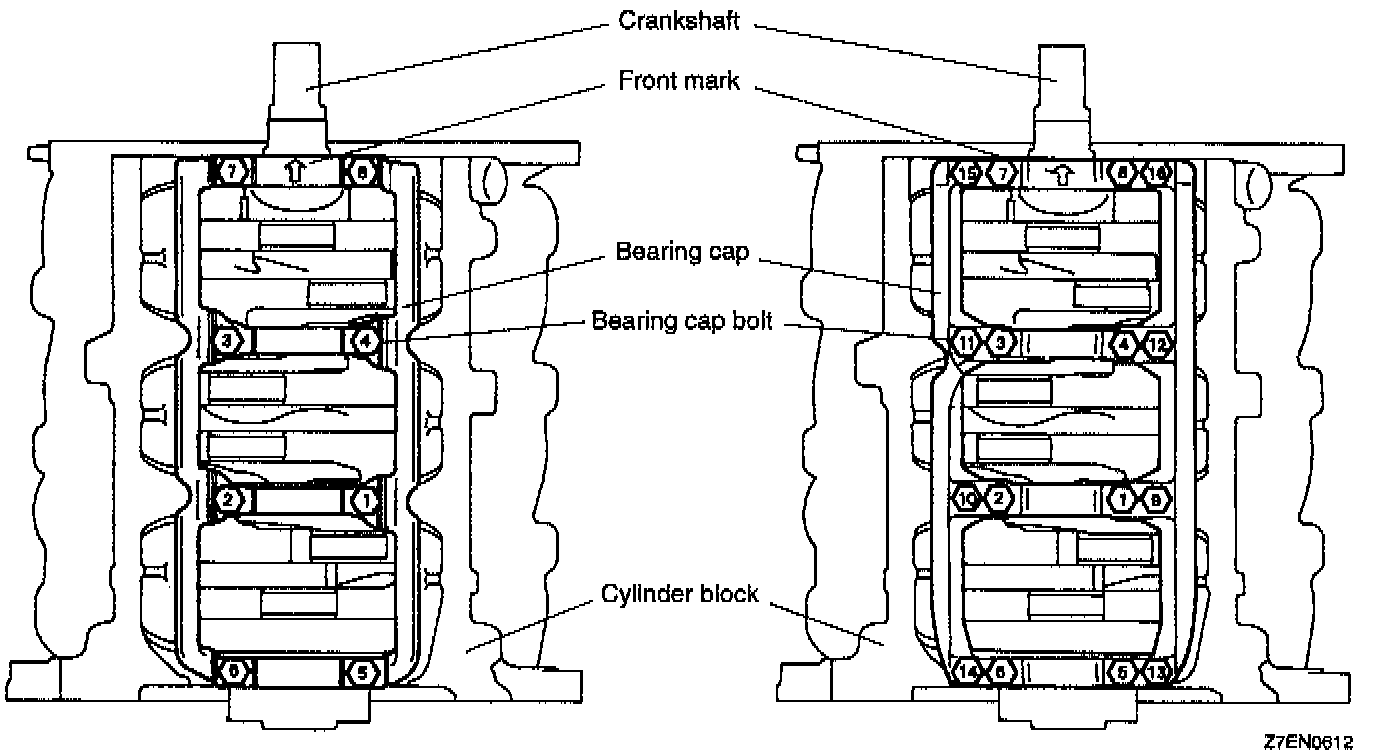

Torque Sequence:

1. Attach the bearing cap on the cylinder block as shown.
2. Tighten the bearing cap bolts to 93 Nm (67 ft. lbs.) in the sequence shown.
3. Check that the crankshaft rotates smoothly.
