Component View

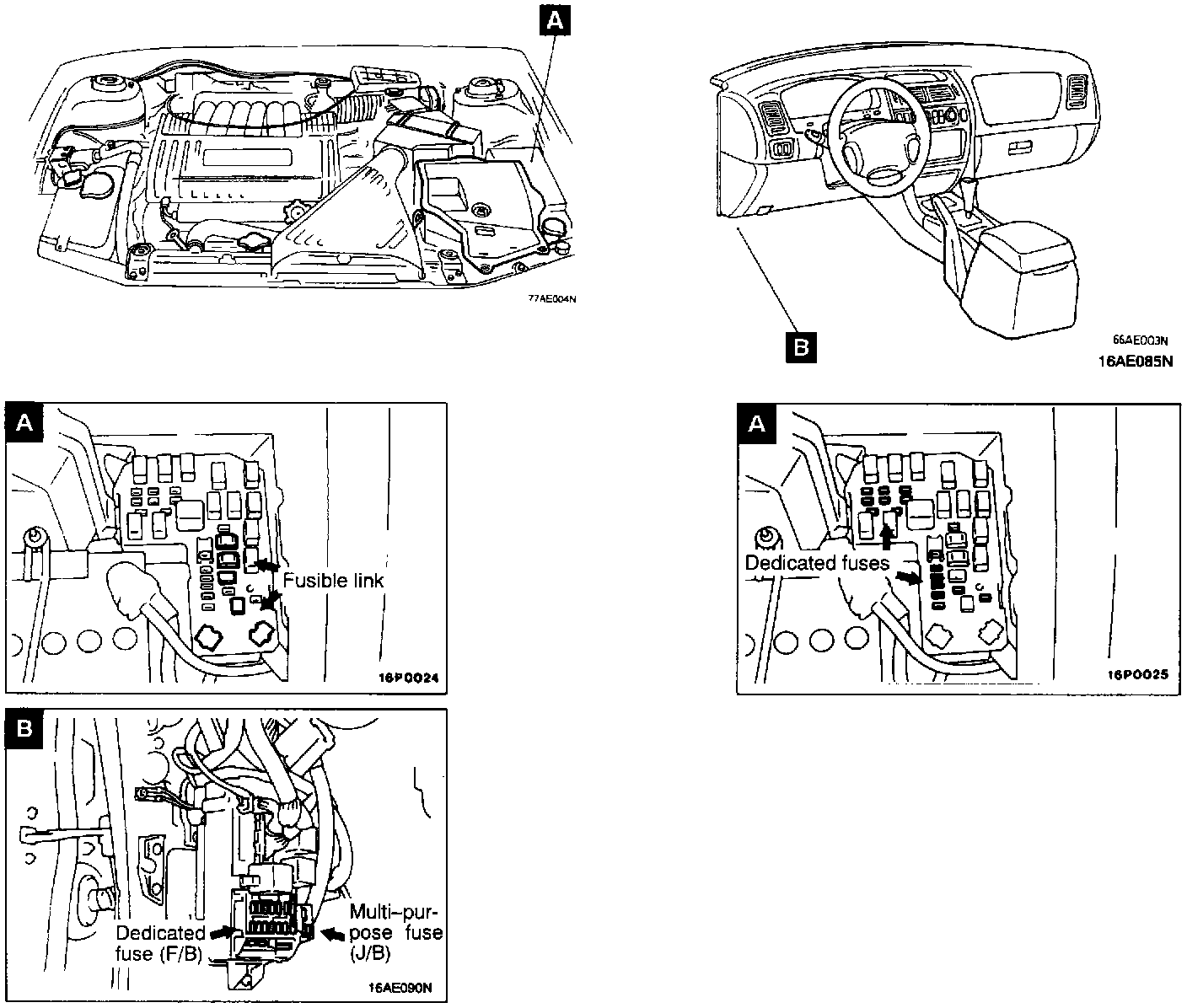

Fusible Link And Fuse Location Overall View And View A - B:






Name Symbol
Dedicated Fuses A
Multi-Purpose Fuses B
Fusible Link A
