Cylinder Head Tightening Specifications
TIGHTENING SPECIFICATIONS

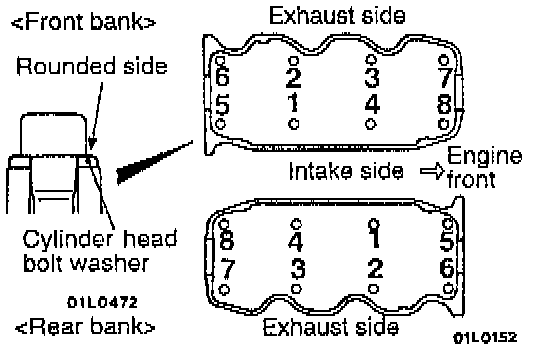

1. Tighten the bolts in the order shown.
2. Tighten in two or three steps.
3. Torque to 103 - 113 Nm (76 - 83 ft. lbs.).
Flex Plate Mounting Bolts 75 Nm (54 ft. lbs.)
TIGHTENING SPECIFICATIONS
1. Tighten the bolts in the order shown.
2. Tighten in two or three steps.
3. Torque to 103 - 113 Nm (76 - 83 ft. lbs.).
Flex Plate Mounting Bolts 75 Nm (54 ft. lbs.)
