Inspection Terminal/Connector Locations

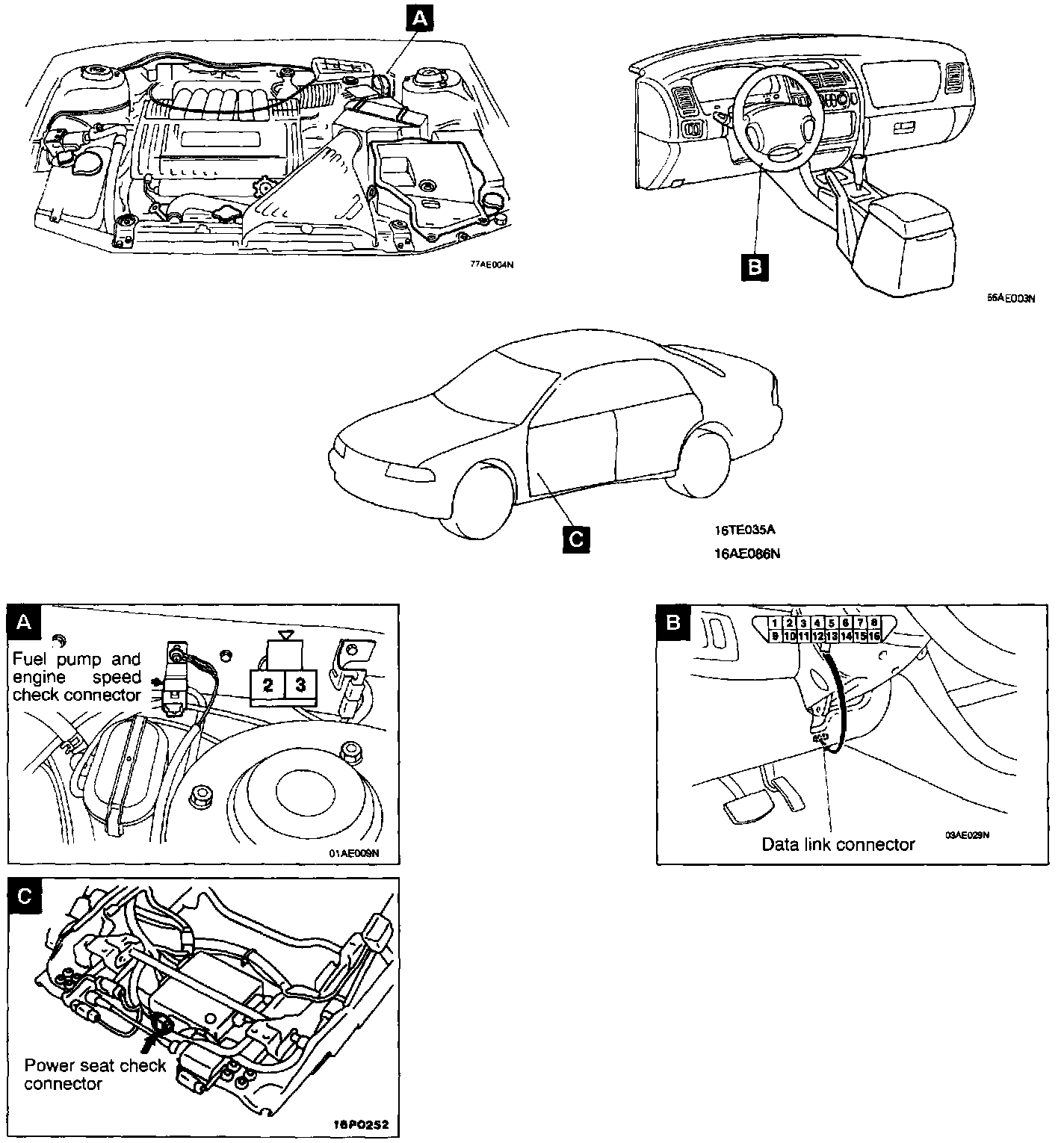

Inspection Terminal Location Overall View And View A - C:

COMPONENT VIEW VIEW
Data Link Connector B
Engine Speed Detection Connector A
Fuel Pump Check Connector A
Power Seat Check Connector C
