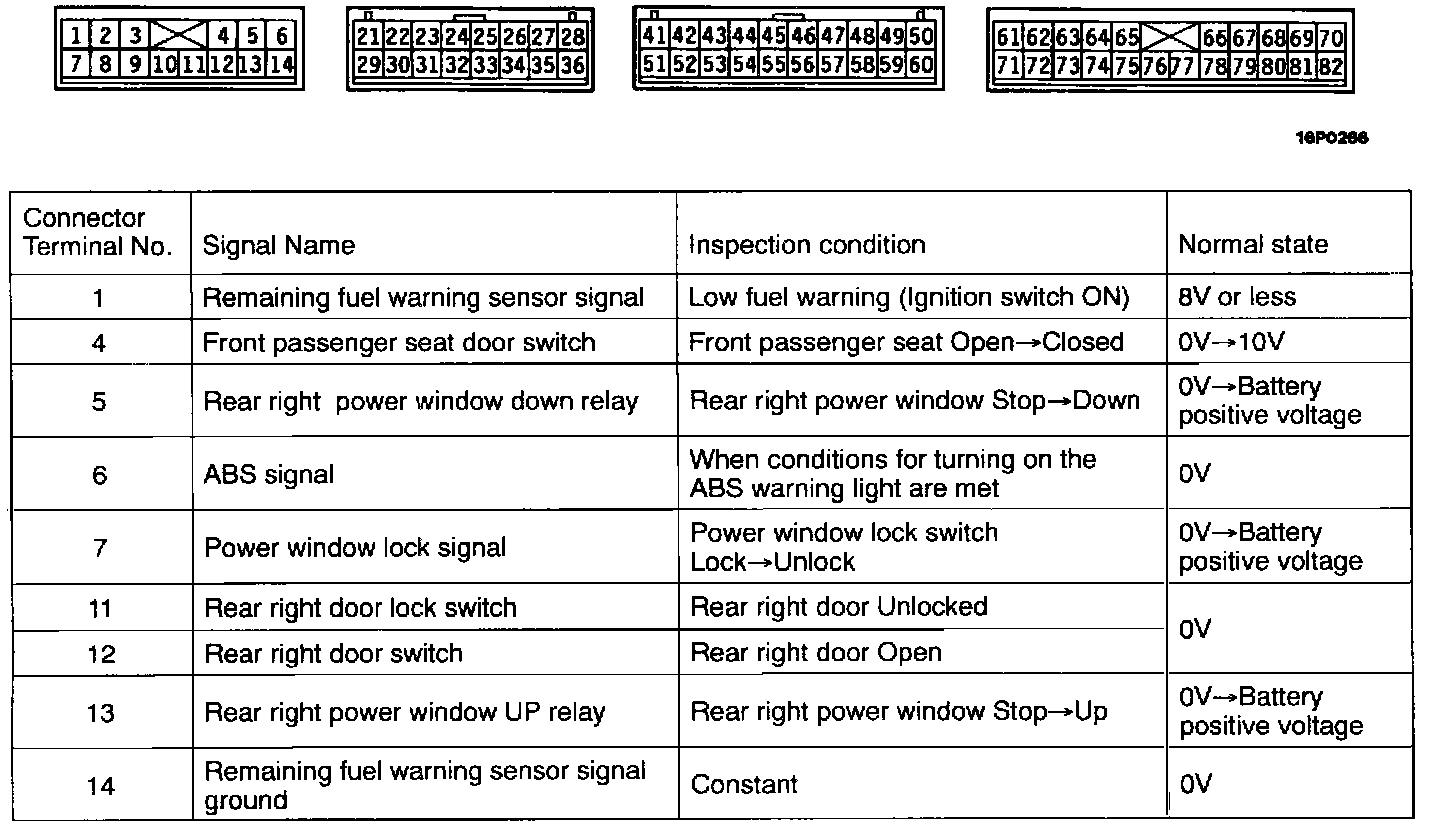

Assist-ECU Terminal Check

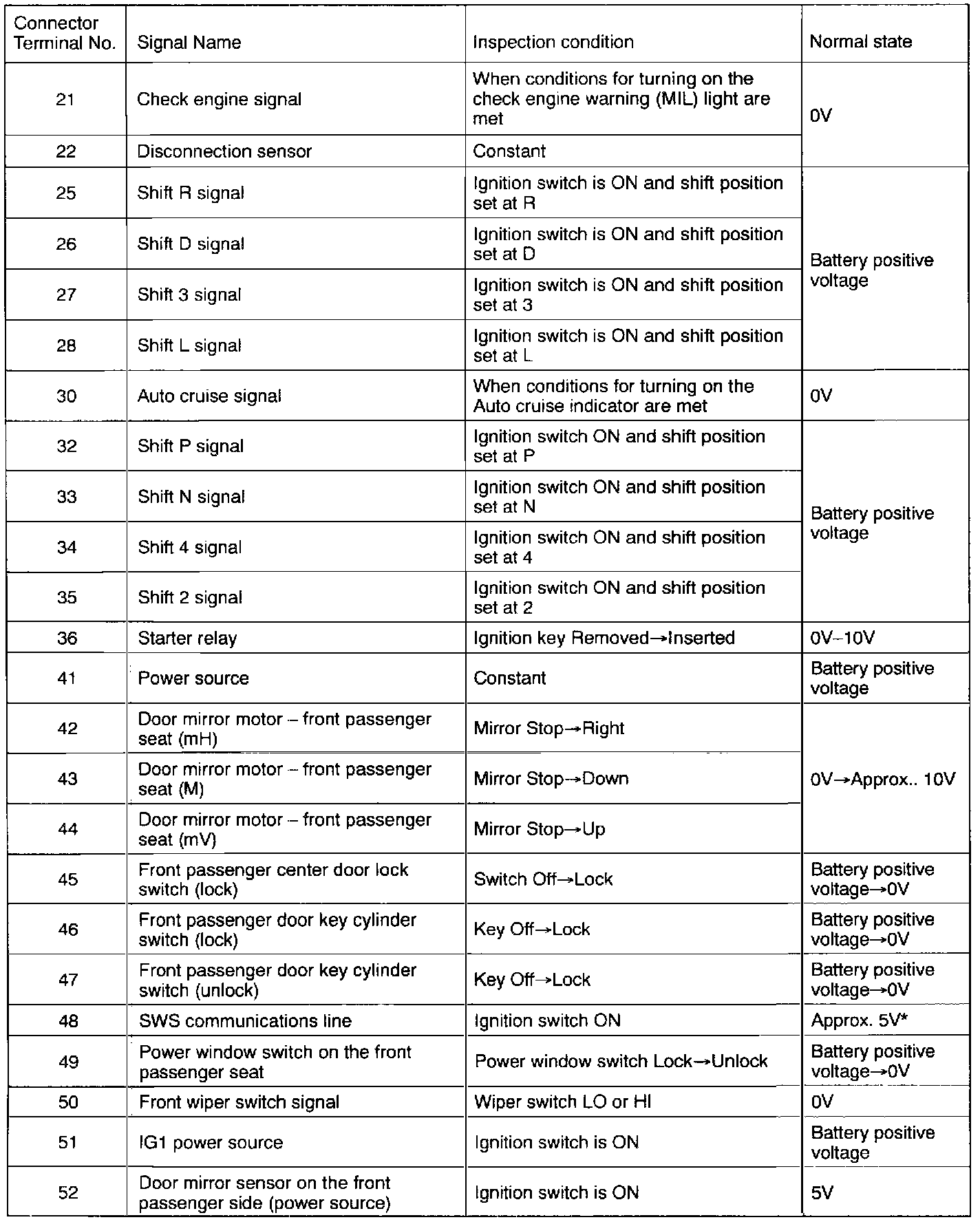

Assist-ECU Terminal Check:

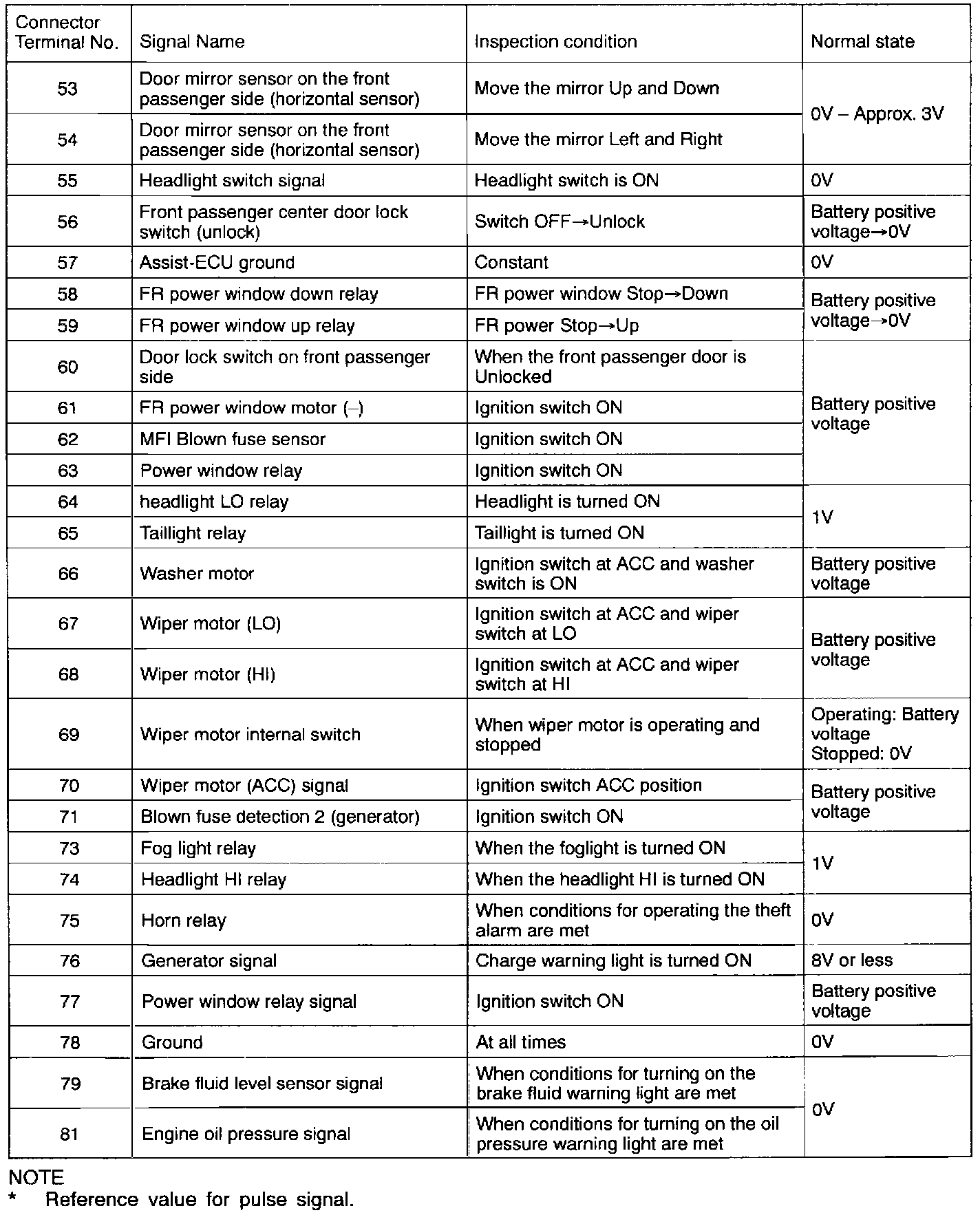

Assist-ECU Terminal Check:




Assist-ECU Terminal Check:
