Engine Control Module: Locations

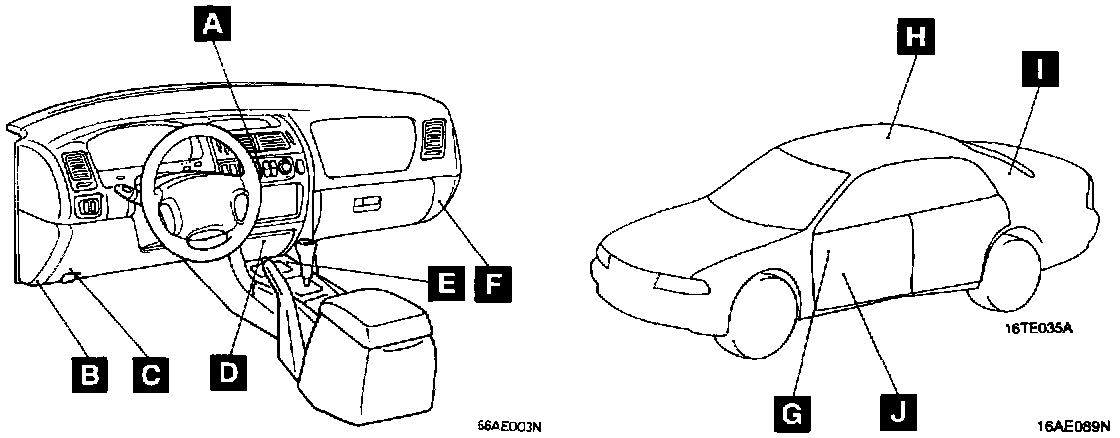

Control Unit Location Overall View:

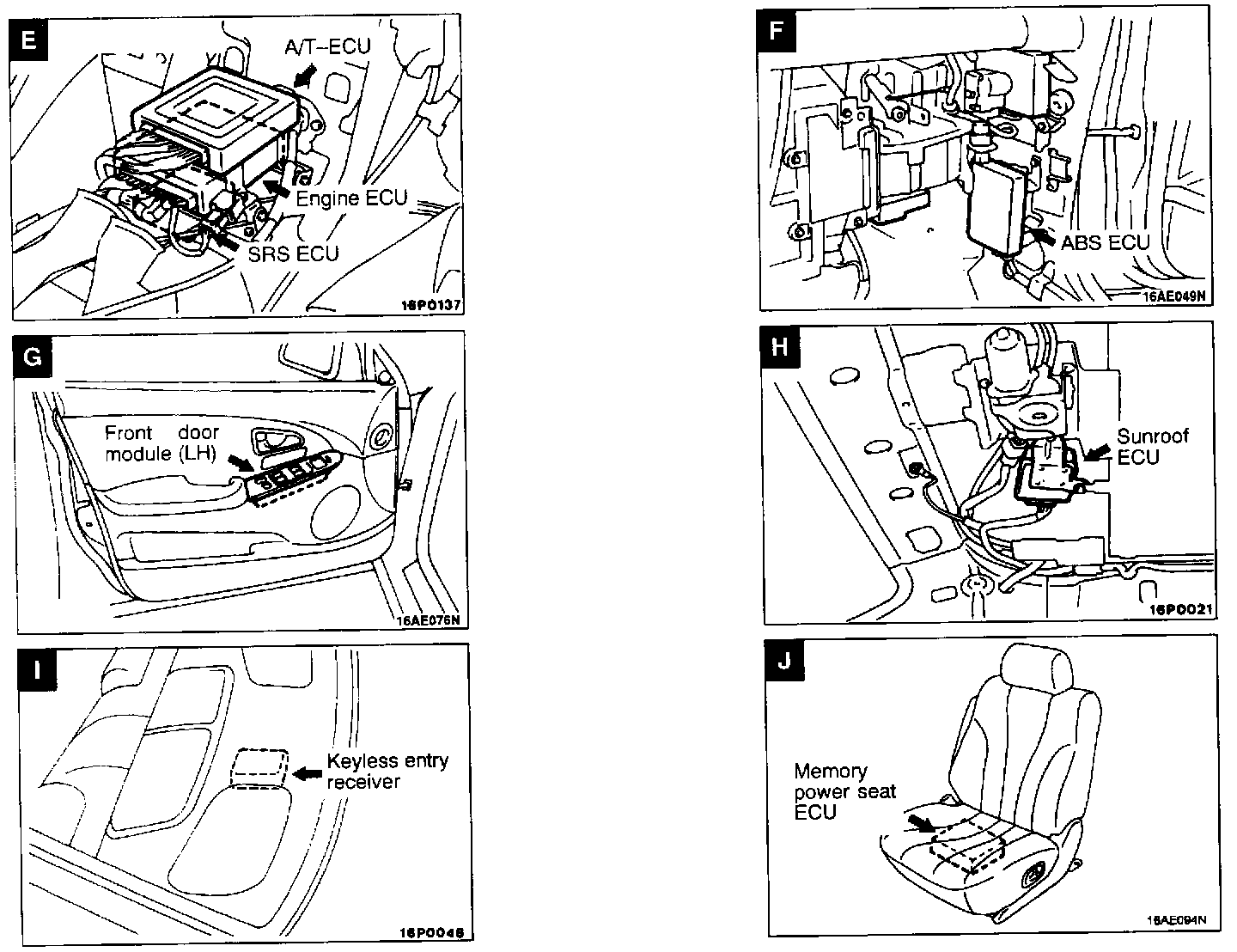

Control Unit Location E - J:






Component View
Engine Control Module E
