Starting System: Testing and Inspection

Troubleshooting Guide:

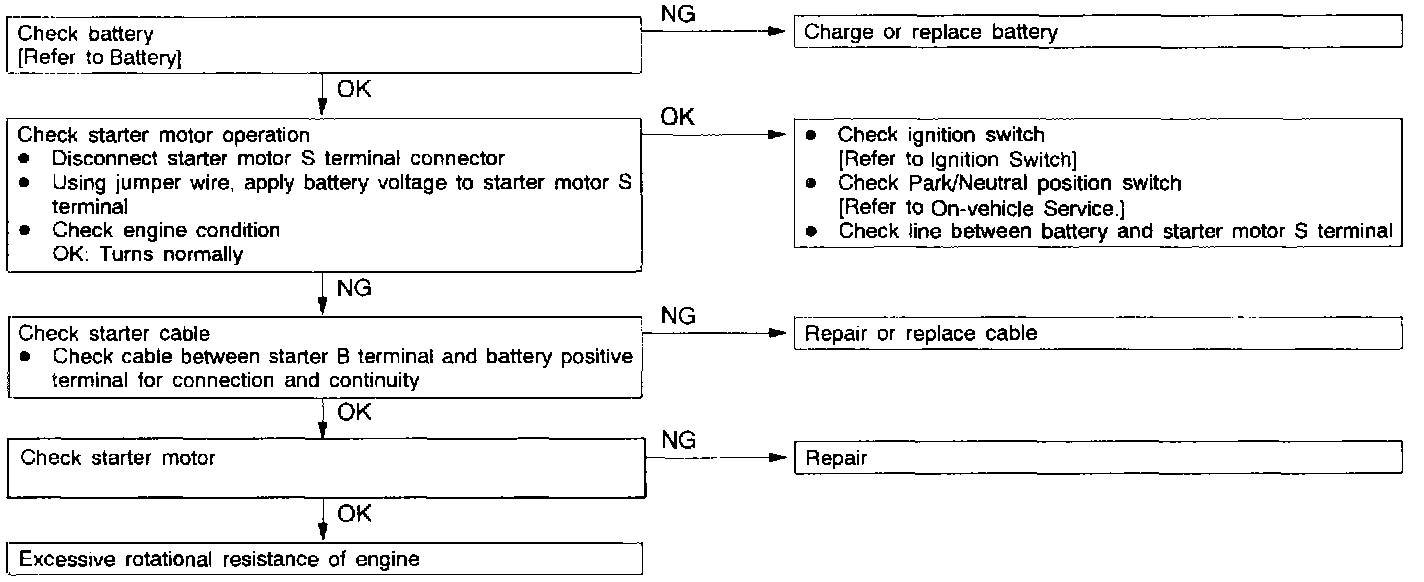

The starting system troubleshooting guide is shown in the following chart.
