Home >> Mitsubishi >> 1998 >> Diamante ES Sedan V6-3.5L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Fastener Tightening Specifications

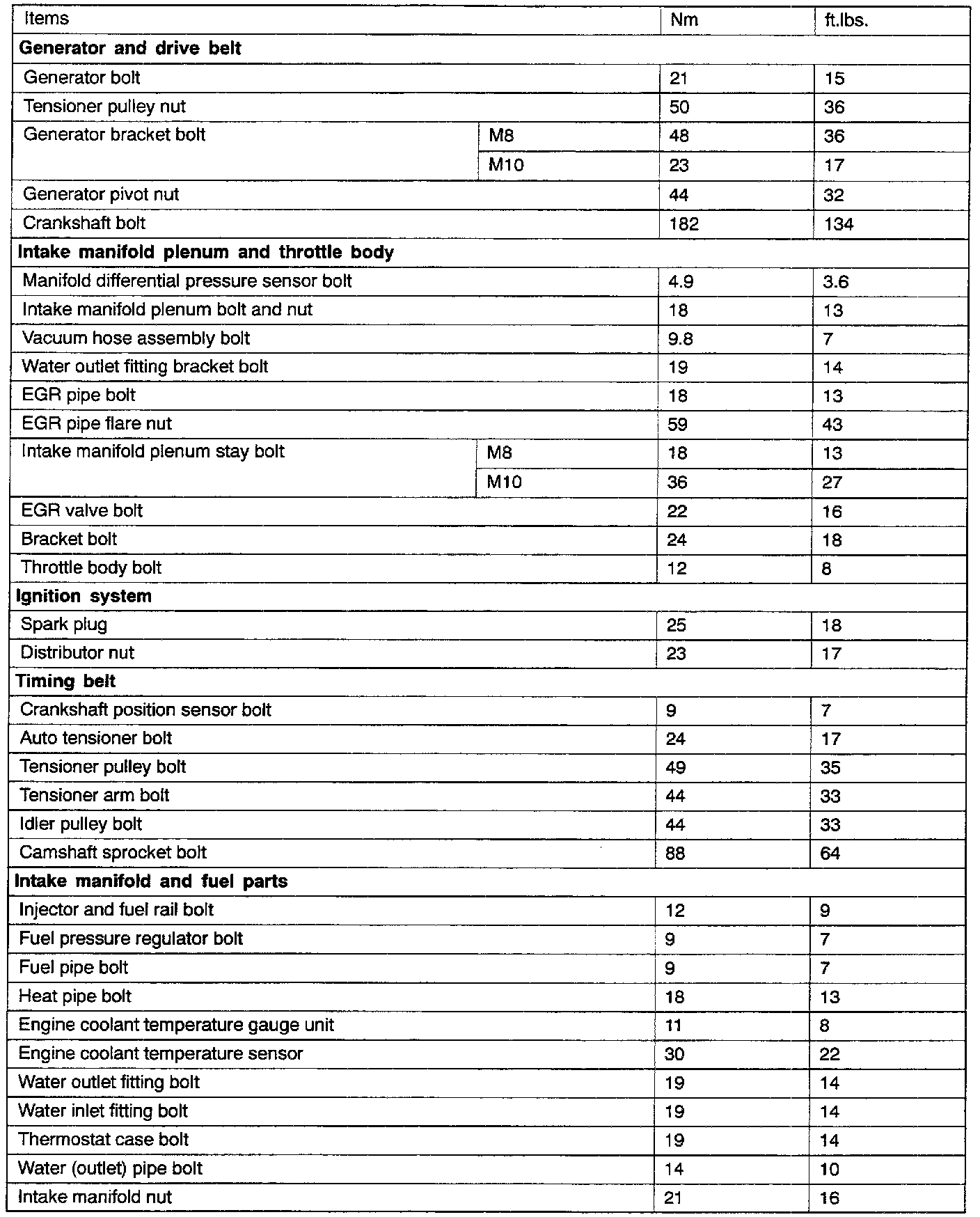

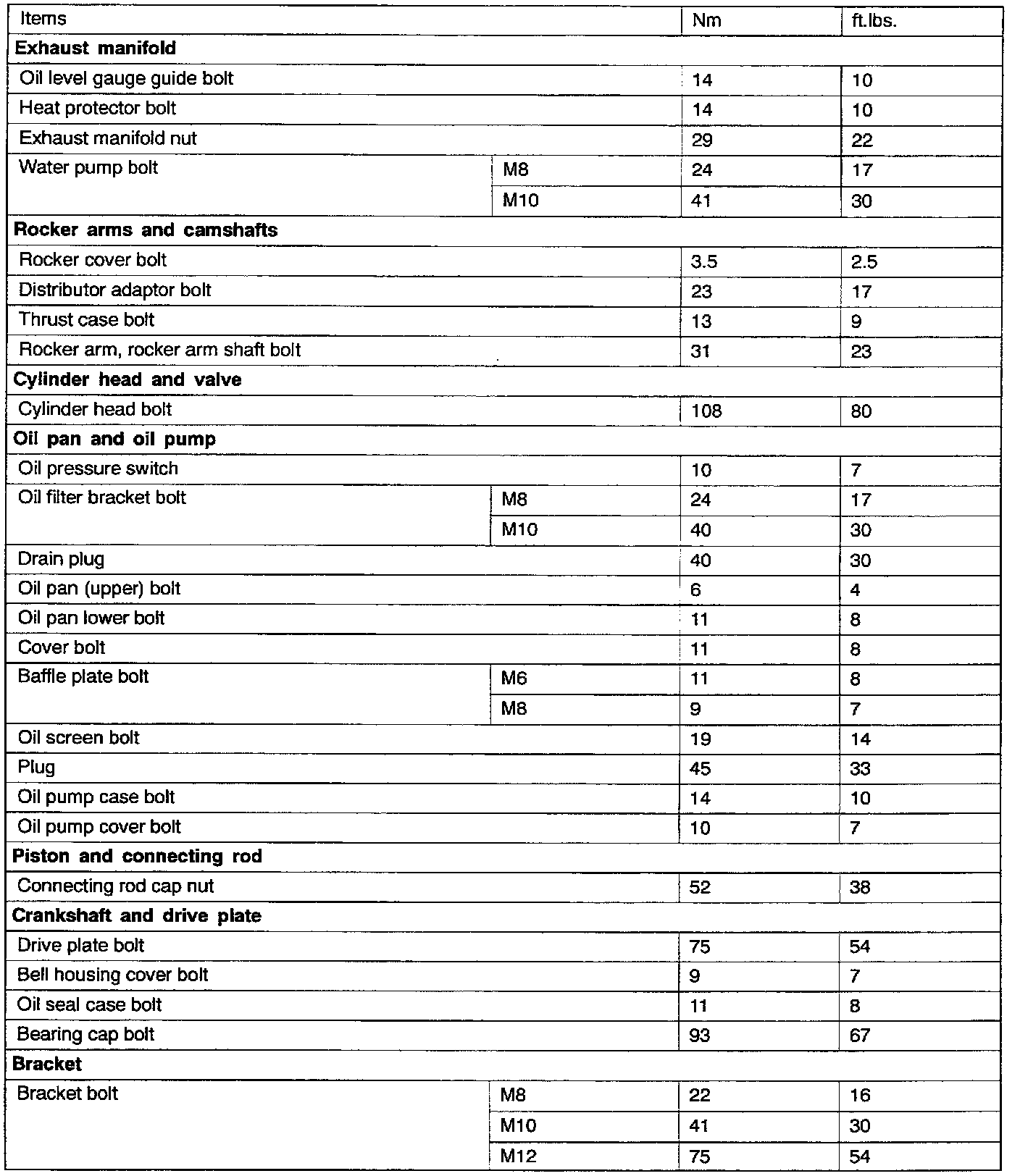

Fastener Tightening Specifications

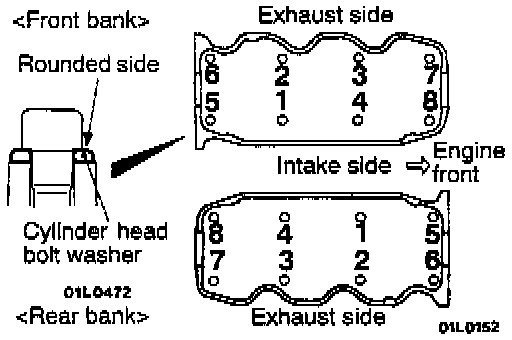

Torque Sequence:
