Engine Control Module





Connector:

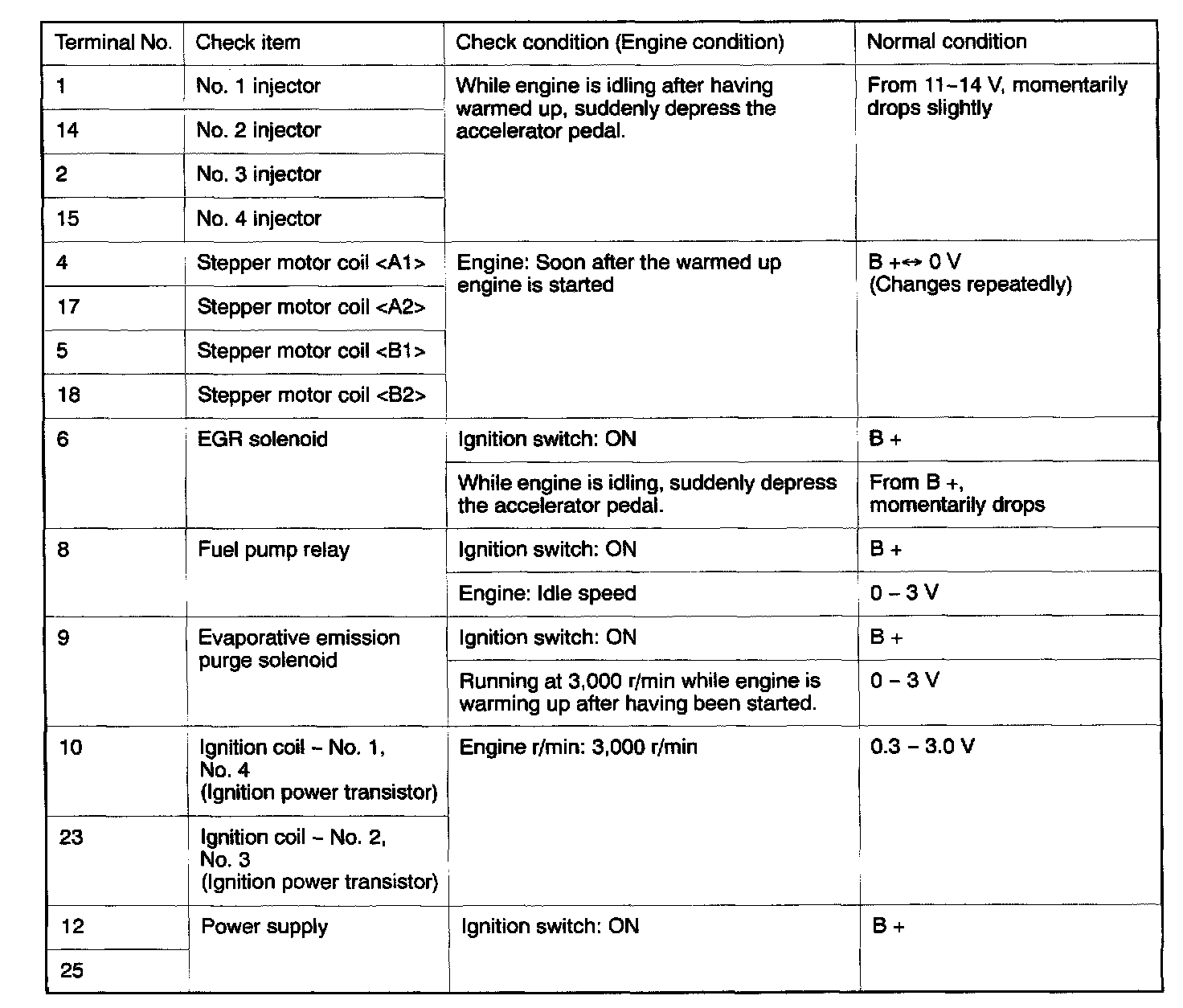

Terminals 1 - 25:

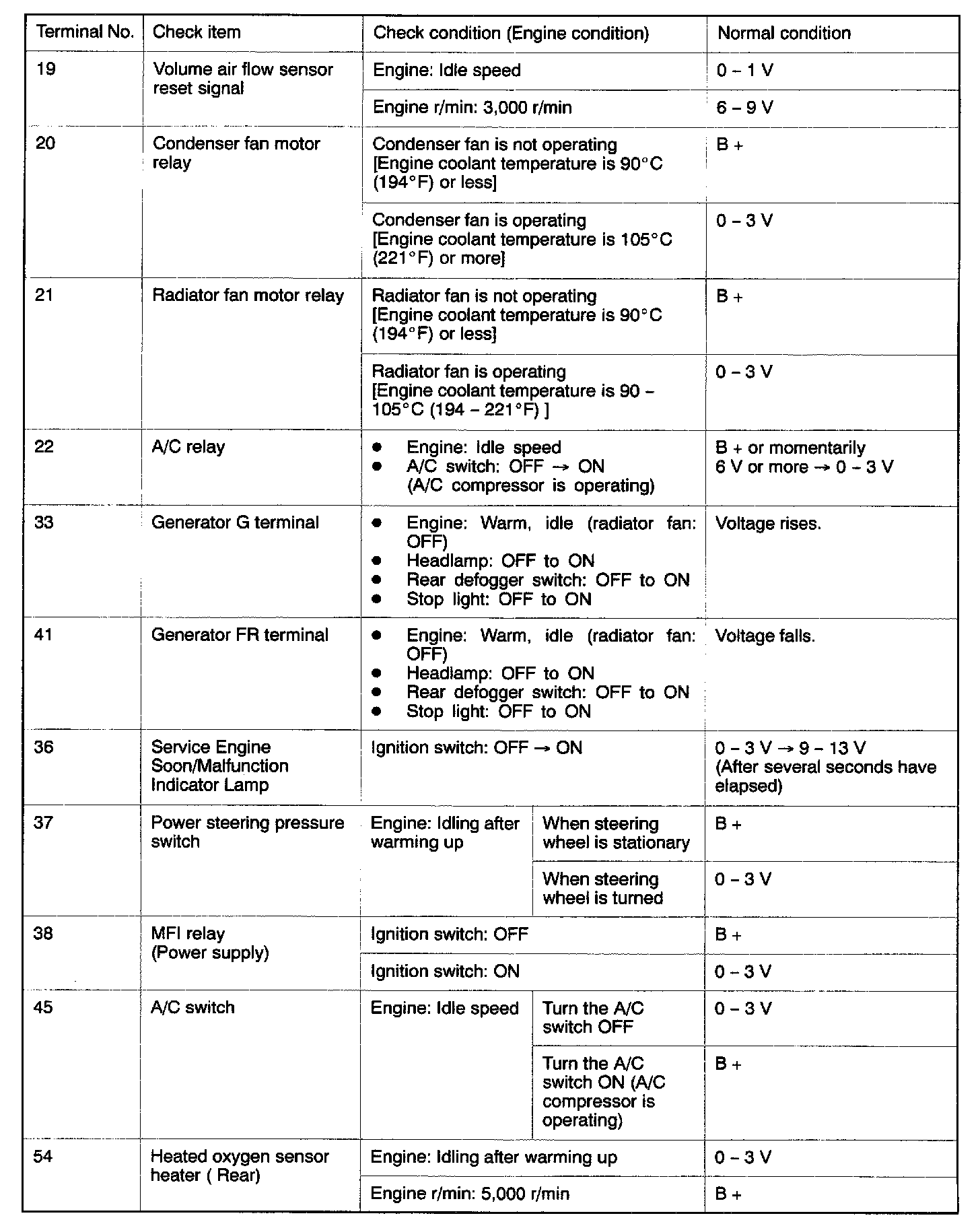

Terminals 19 - 54:

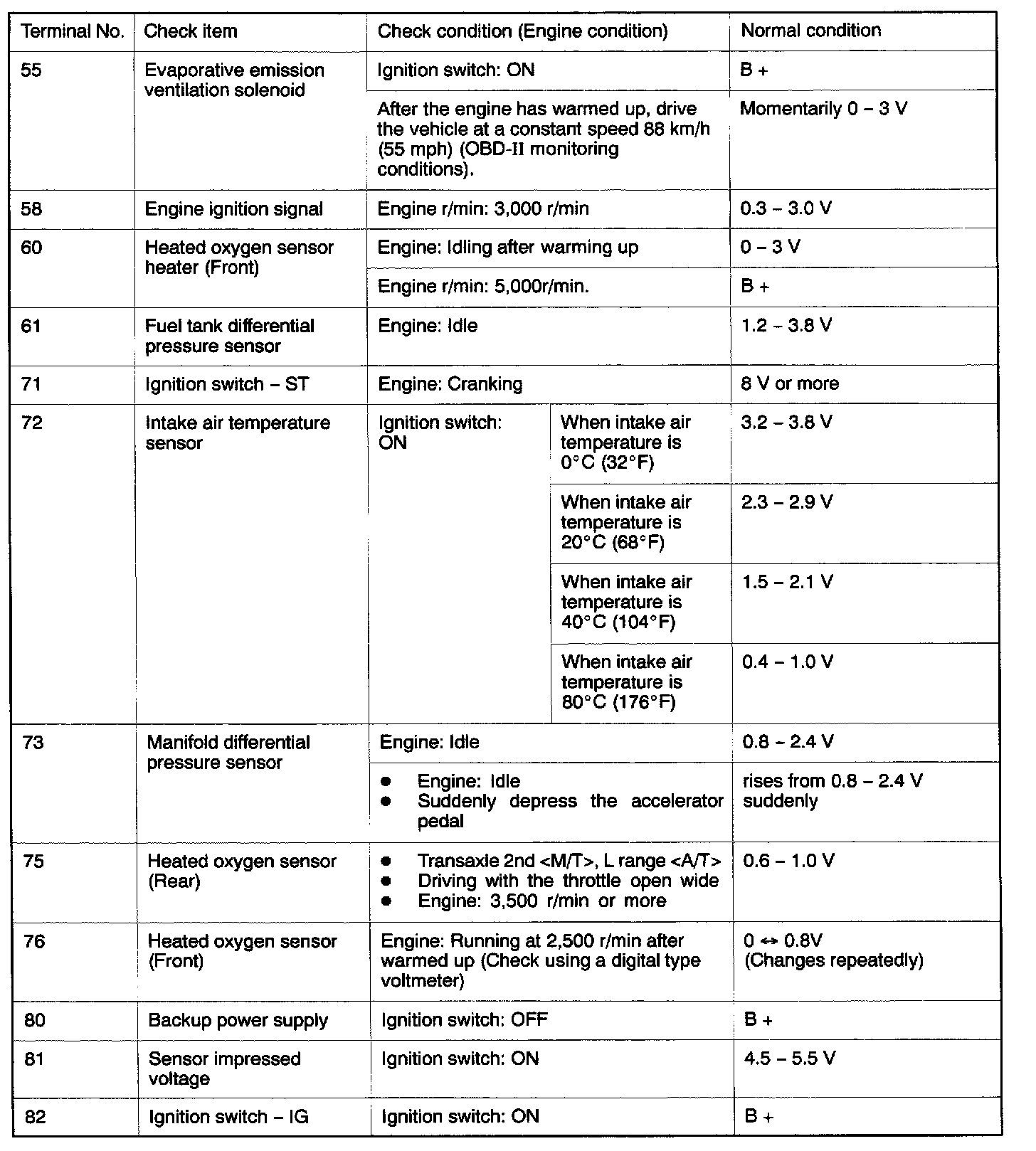

Terminals 55 - 82:

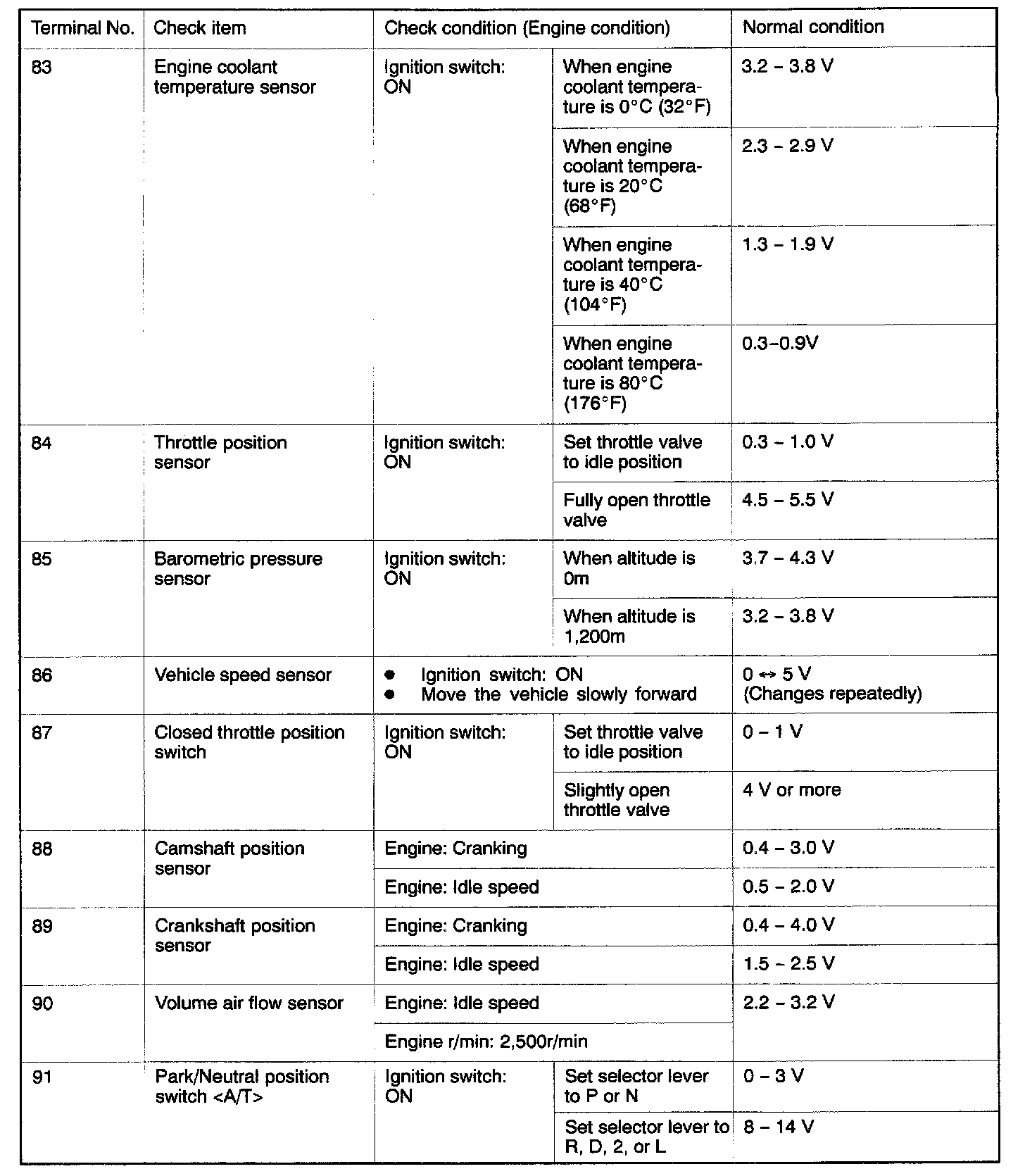

Terminals 83 - 91:
