Mirage Sedan LS L4-1834cc 1.8L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
Replacement
Replacement

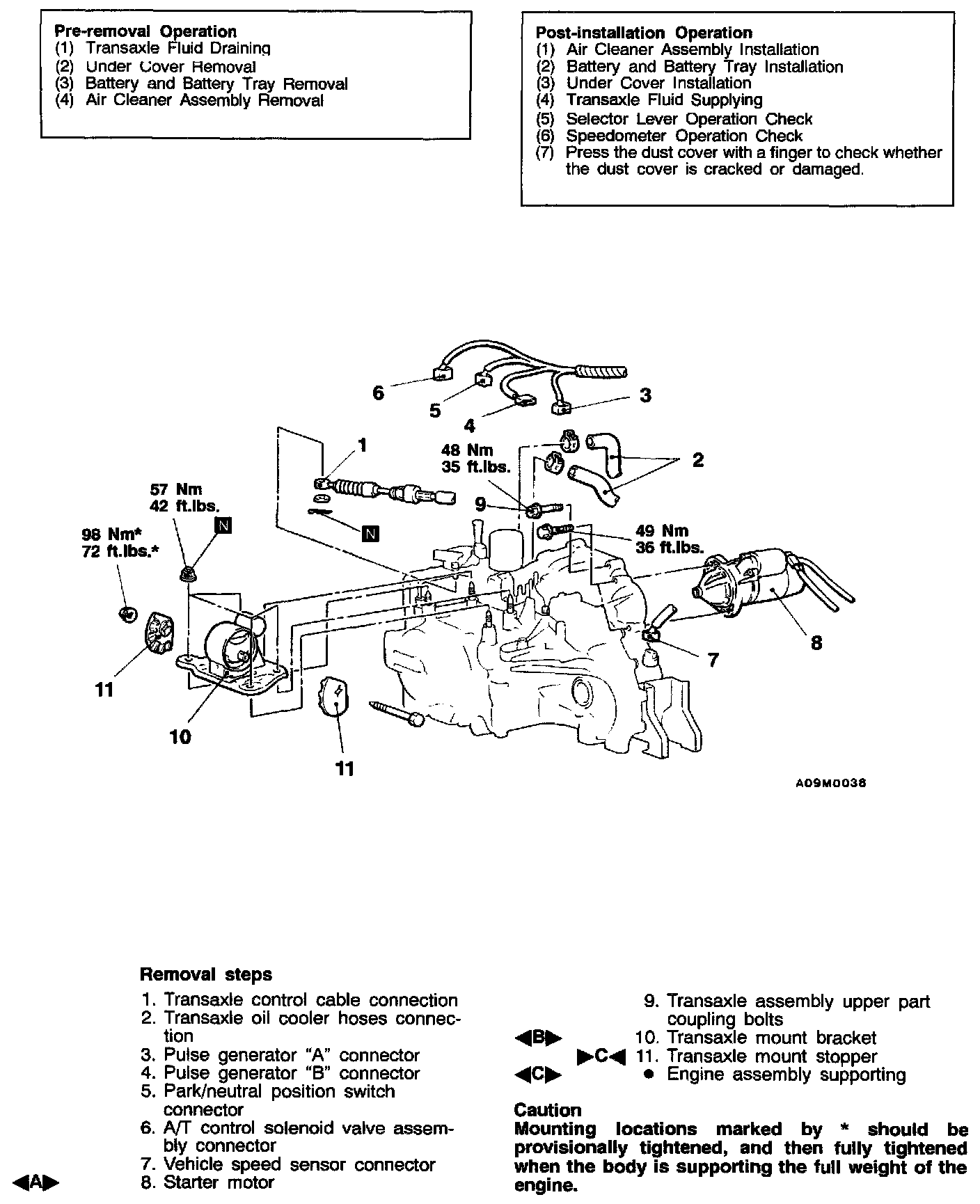

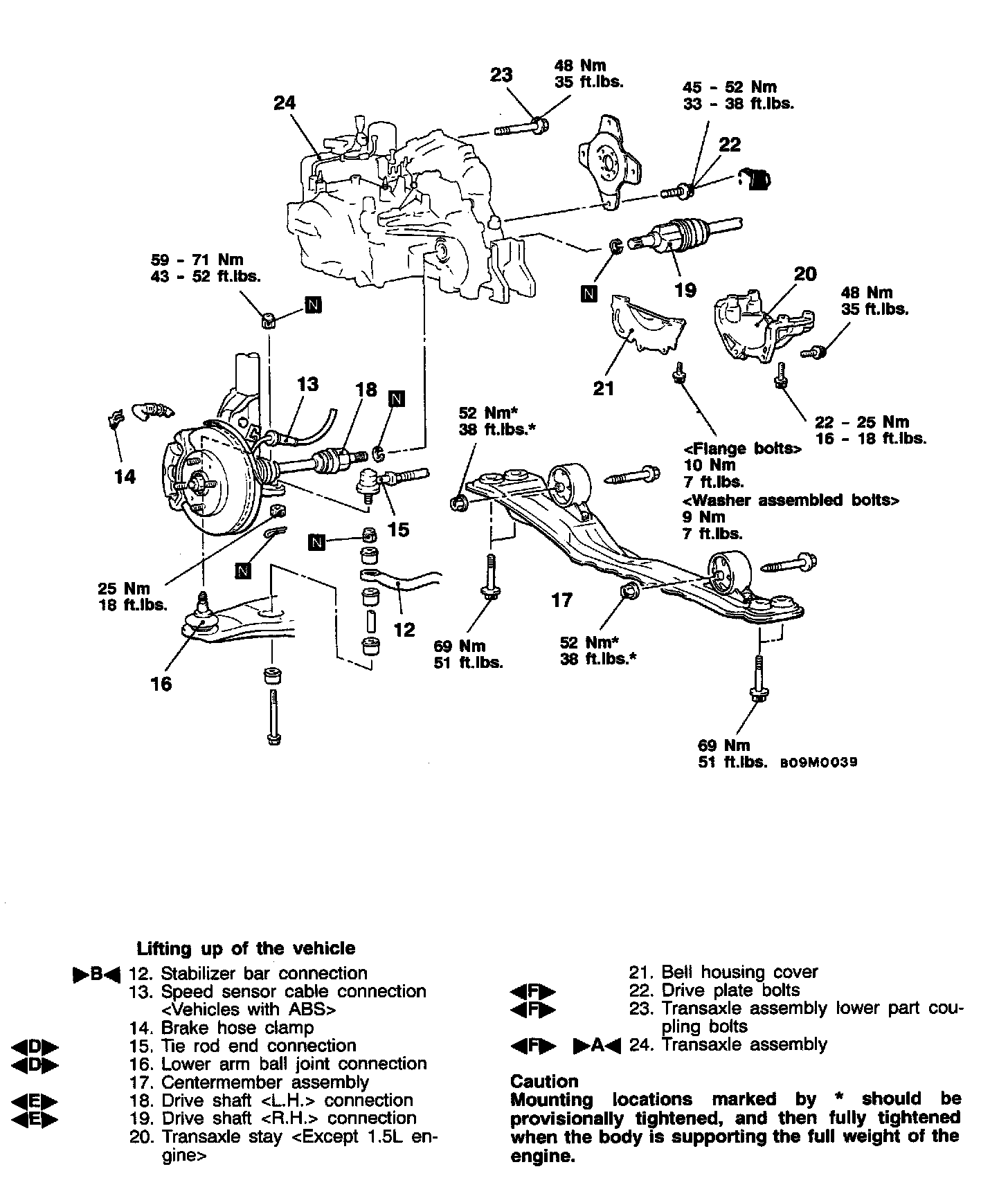

TRANSAXLE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
