Hydraulic Assembly: Service and Repair

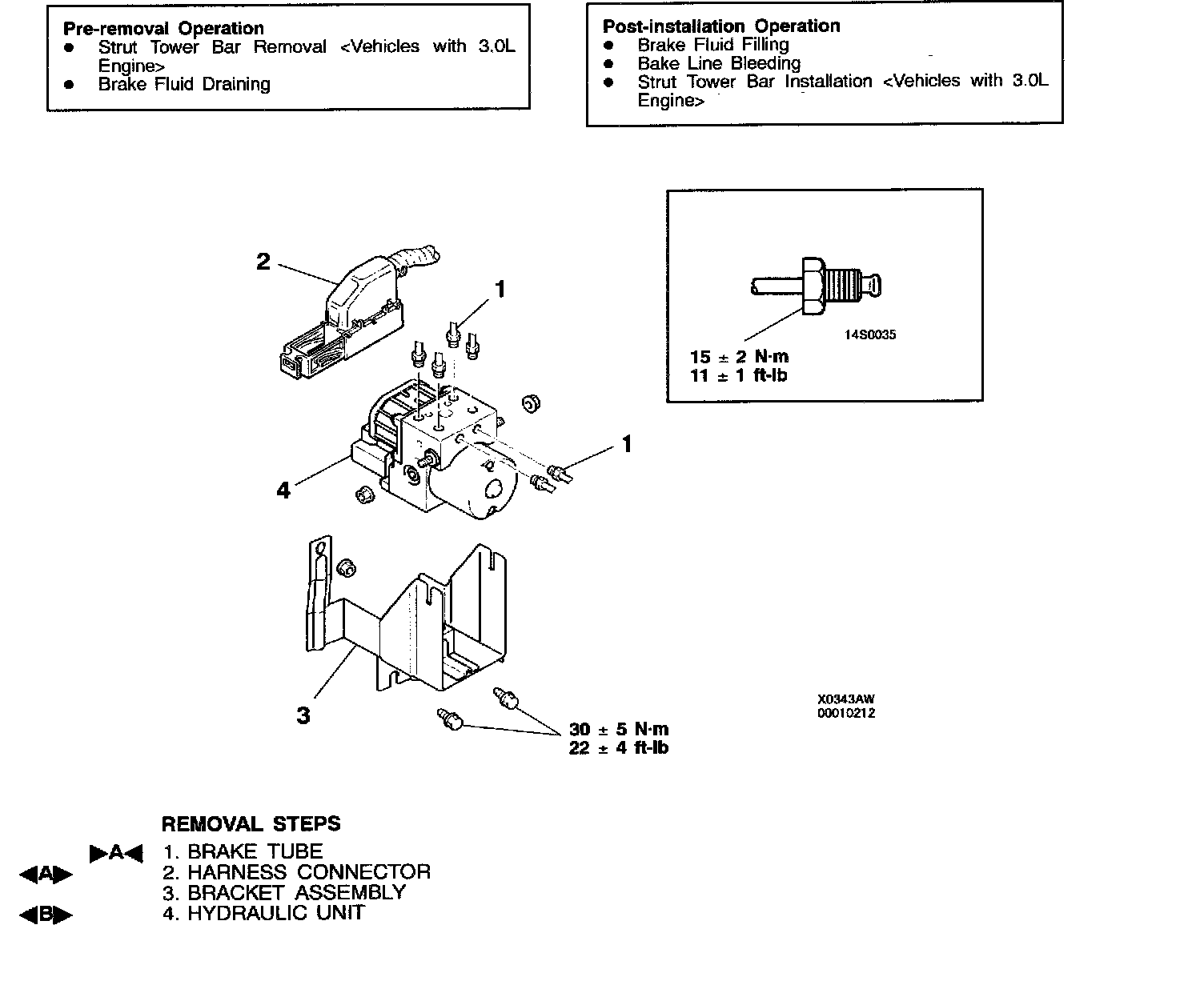

REMOVAL AND INSTALLATION

NOTE: The ABS-ECU is integrated in the hydraulic unit.






REMOVAL SERVICE POINTS
HARNESS CONNECTOR REMOVAL

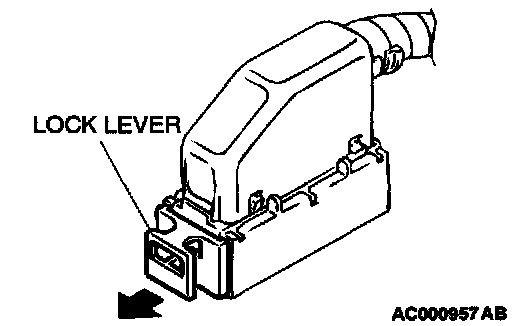

Pull the lock lever in the direction shown in the illustration, and remove the harness.

HYDRAULIC UNIT REMOVAL

WARNING: The hydraulic unit is heavy. Use care when removing it.

CAUTION:
- The hydraulic unit cannot be disassembled. Never loosen its nuts or bolts.
- Do not drop or shock the hydraulic unit.
- Do not turn the hydraulic unit upside down or lay it on its side.

INSTALLATION SERVICE POINT
>A< BRAKE TUBE INSTALLATION

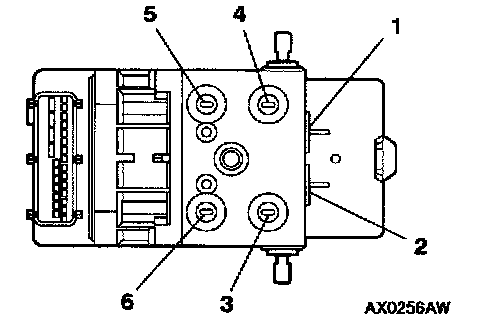

Connect the tubes to the hydraulic unit as shown in the illustration.
1. To the proportioning valve (rear brake: LH)
2. To the proportioning valve (rear brake: RH)
3. From the master cylinder (primary)
4. From the master cylinder (secondary)
5. To the front brake (RH)
6. To the front brake (LH)
