Inside/Outside Air Changeover Damper Motor Check

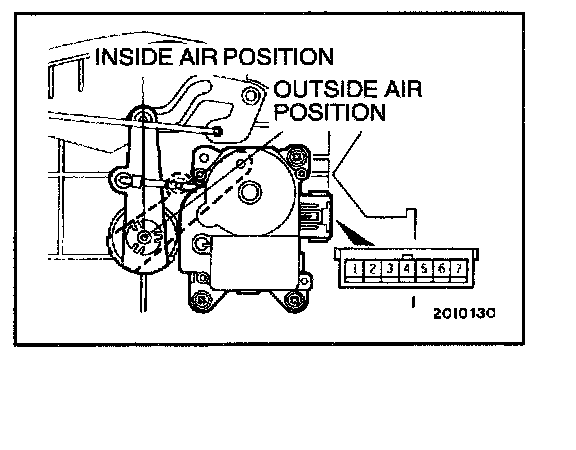

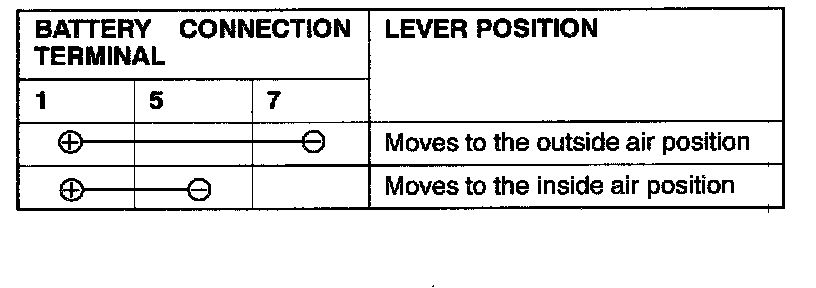

Inside/Outside Air Changeover Damper Motor Check
CAUTION:
Cut off the battery voltage when the damper is in the inside/outside air position.
