Ignition System: Service and Repair

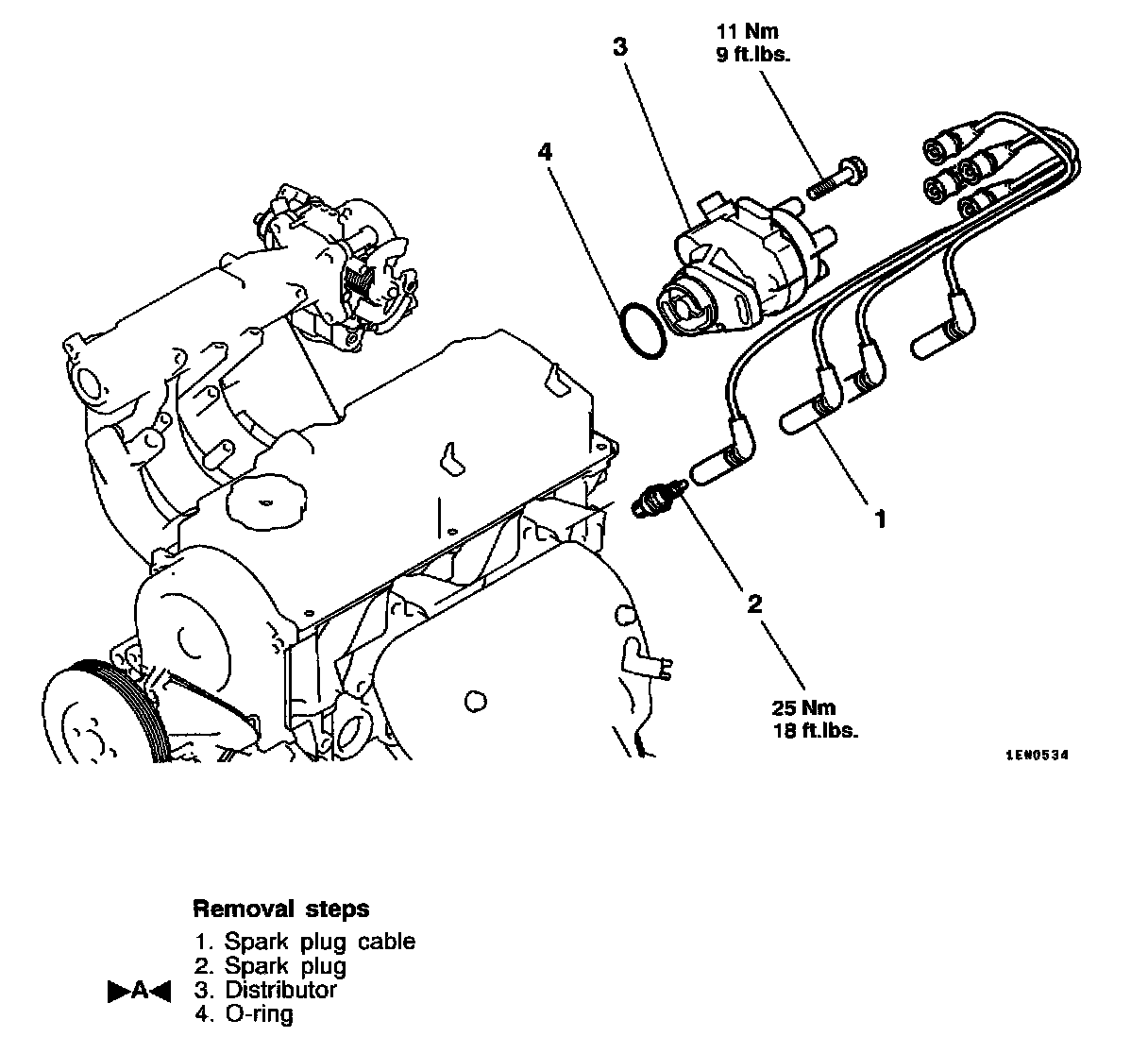

REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINT

>A< DISTRIBUTOR INSTALLATION
1. Turn the crankshaft so that the No. 1 cylinder is at top dead center.

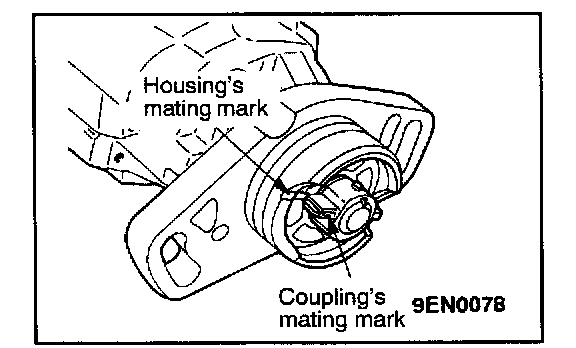

2. Installation the distributor to the engine while aligning the distributor housing and coupling mating marks.
