Home >> Mitsubishi >> 2001 >> Galant ES L4-2350cc 2.4L SOHC MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Computers and Control Systems >> Engine Control Module

Engine Control Module

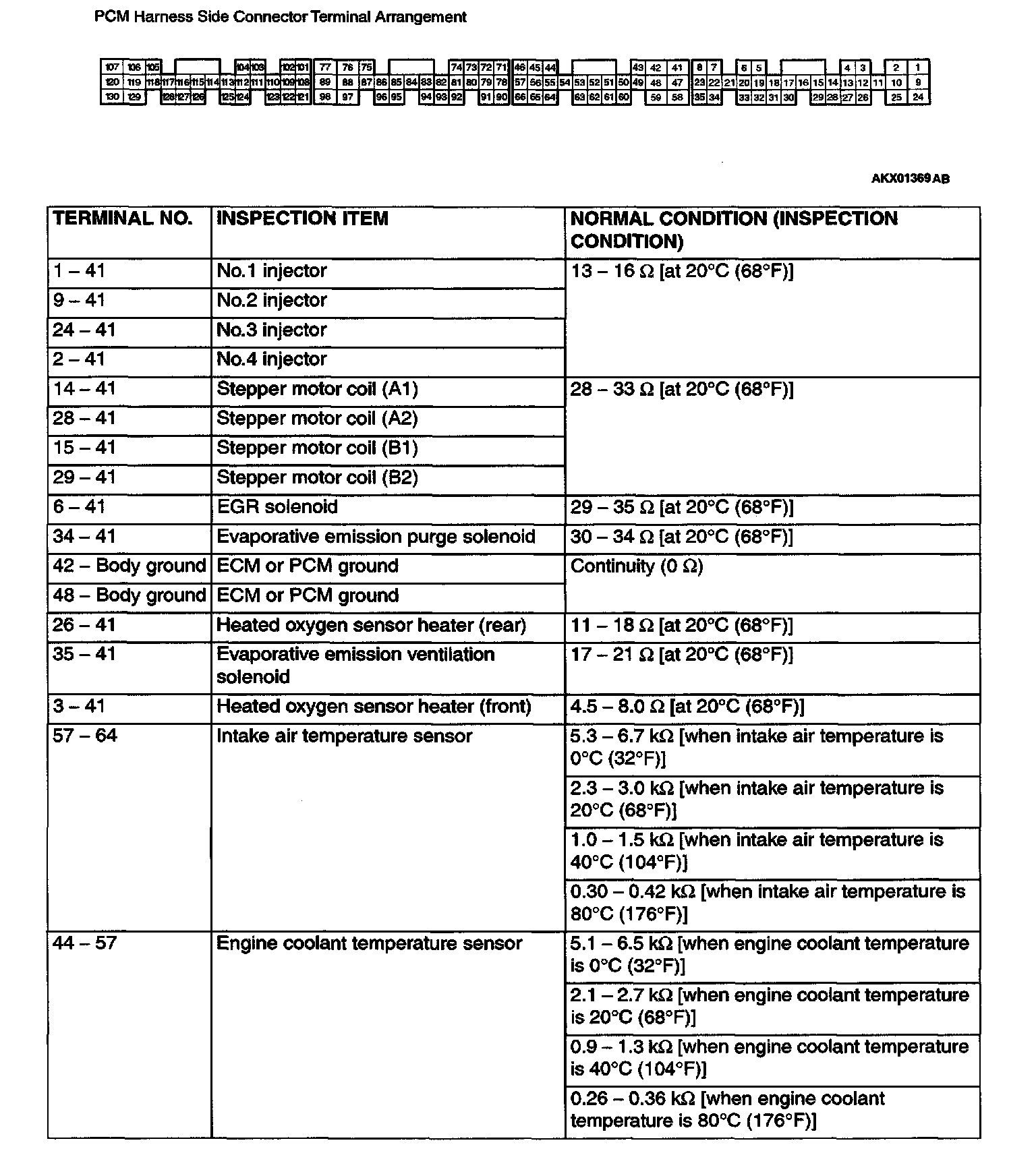

Terminal Resistance And Continuity Check:
