Powertrain Management: Locations

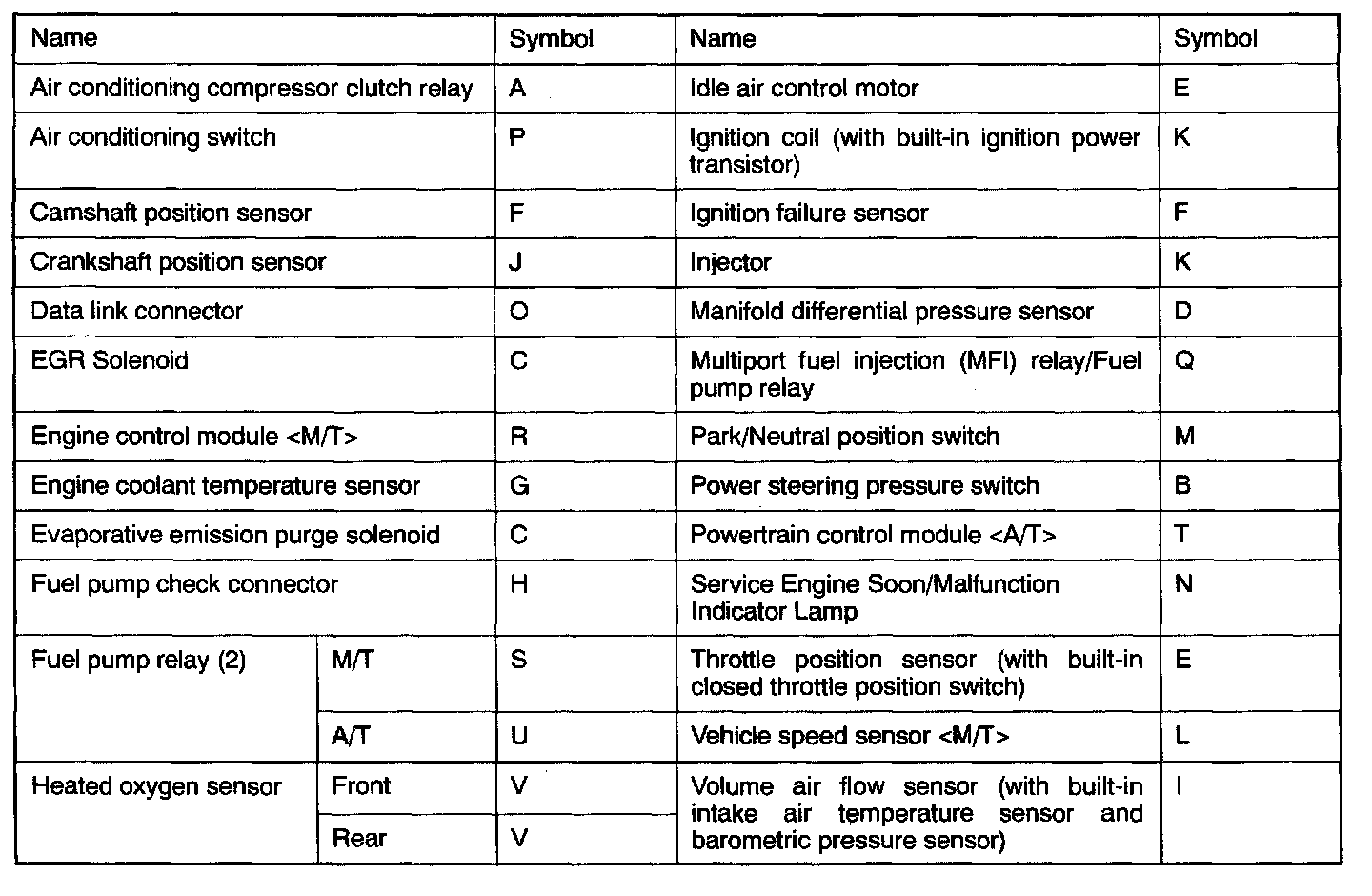

Location Index:

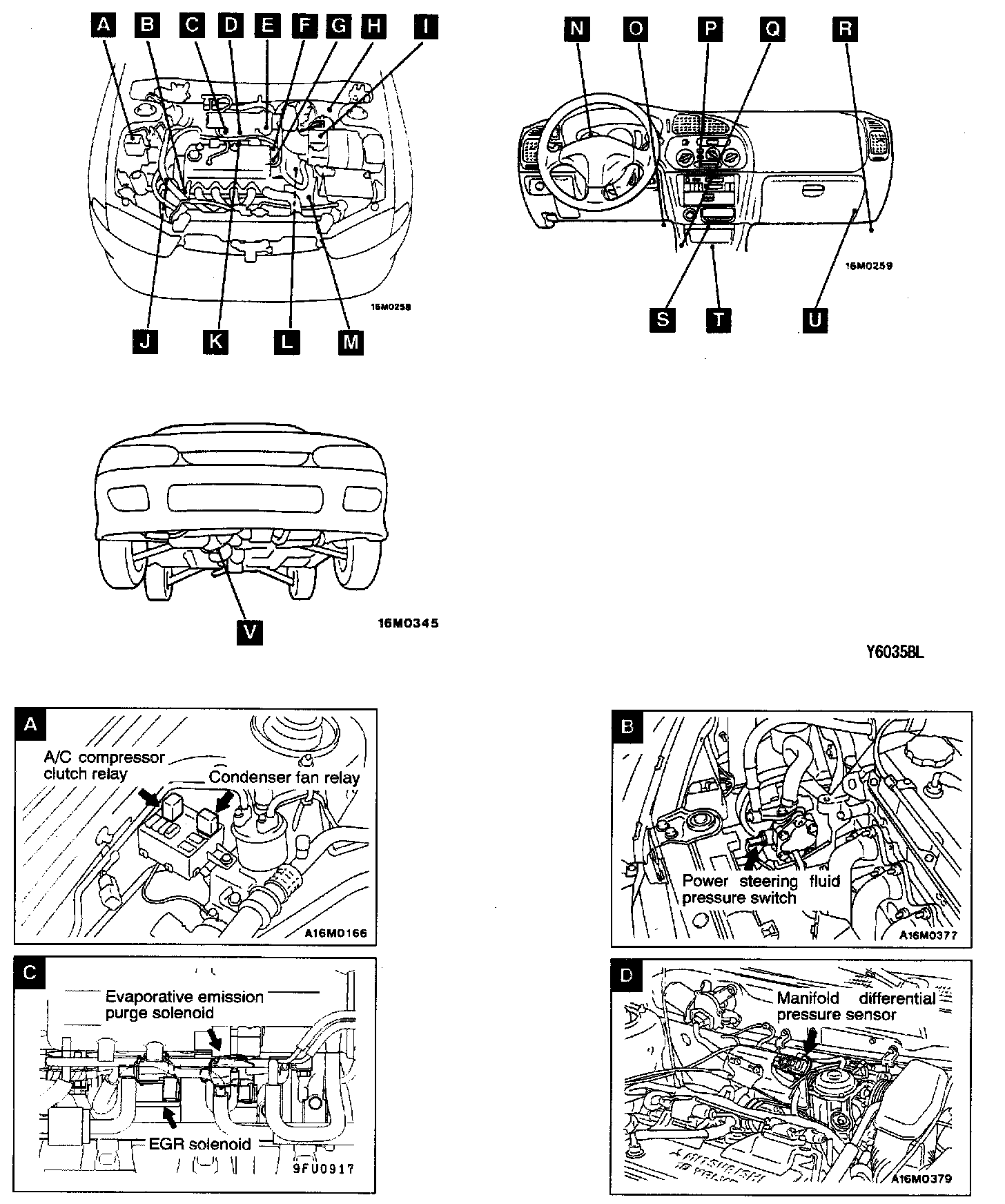

Overall View And Views A - D:

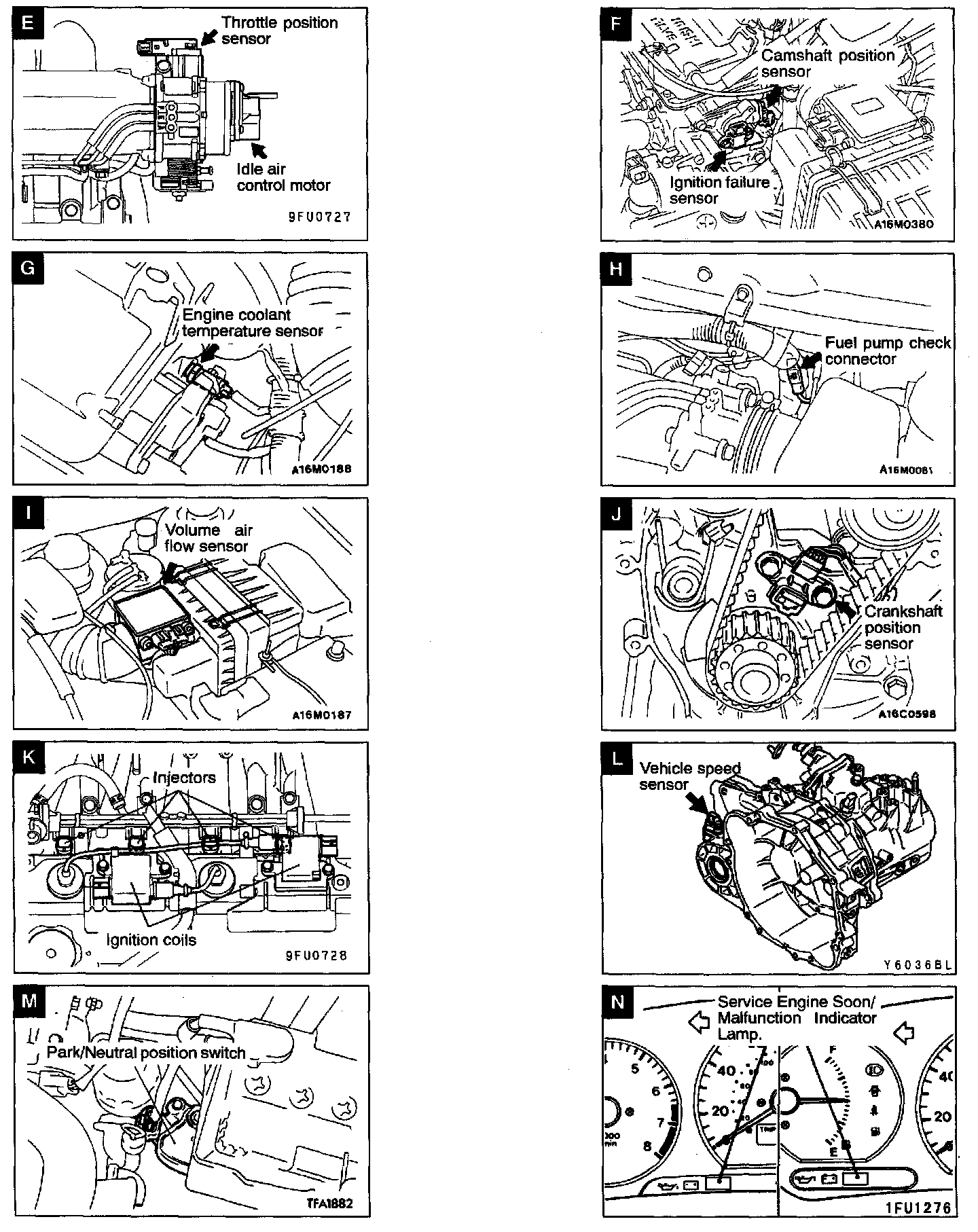

Views E - N:

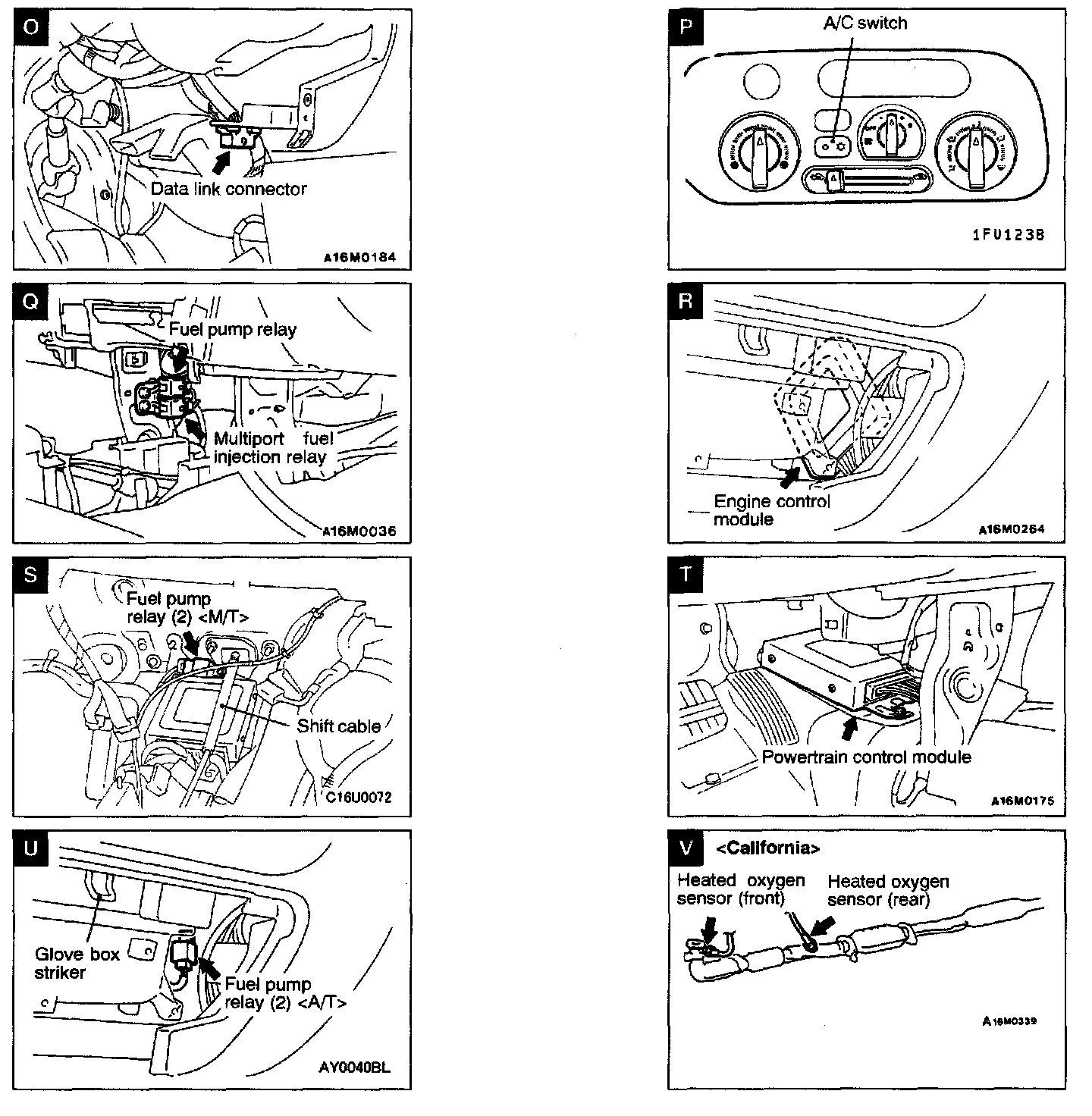

Views O - V:
