Restraints and Safety Systems: Service Precautions

Caution Label:

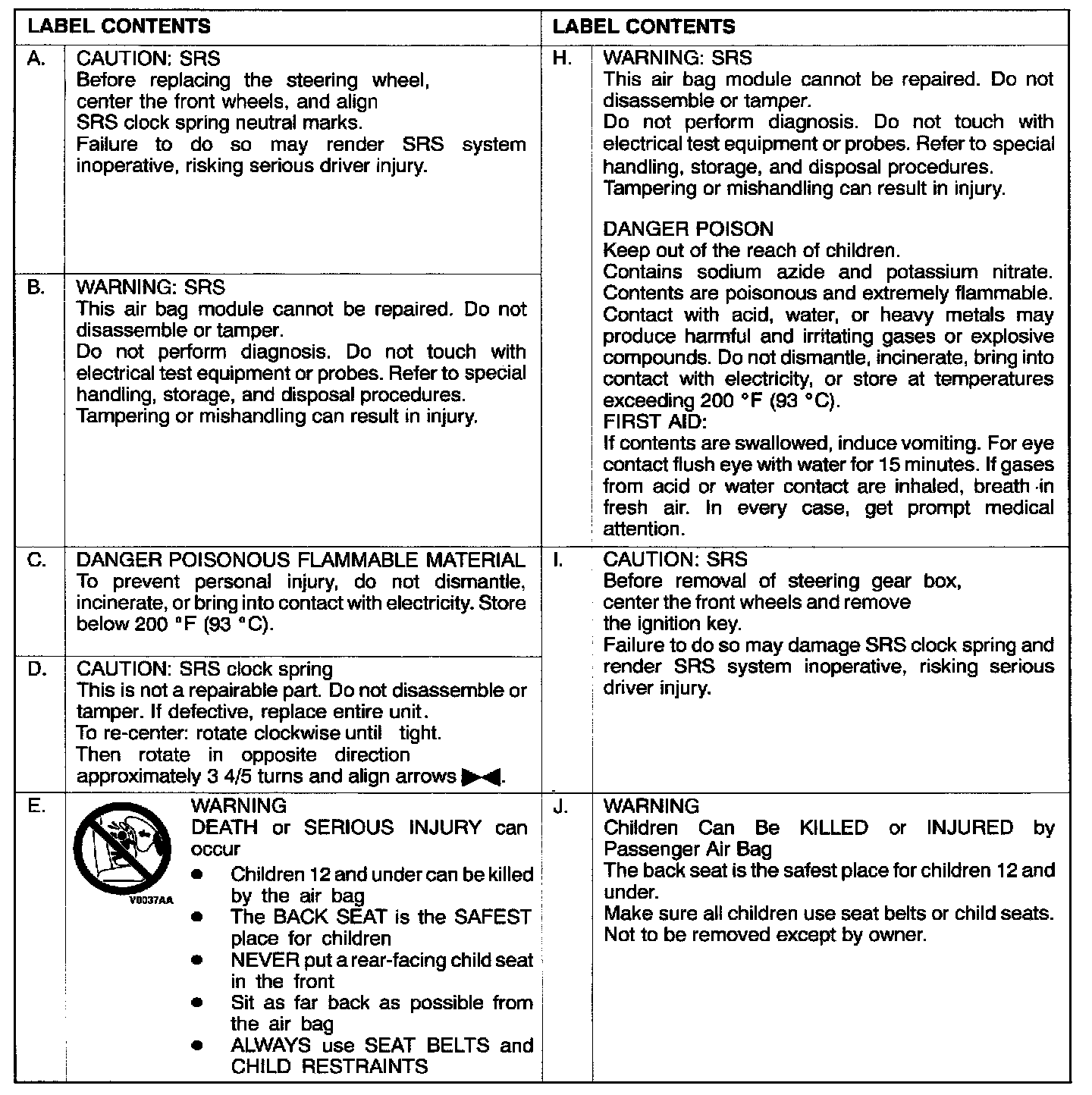

Label Contents Part 1:

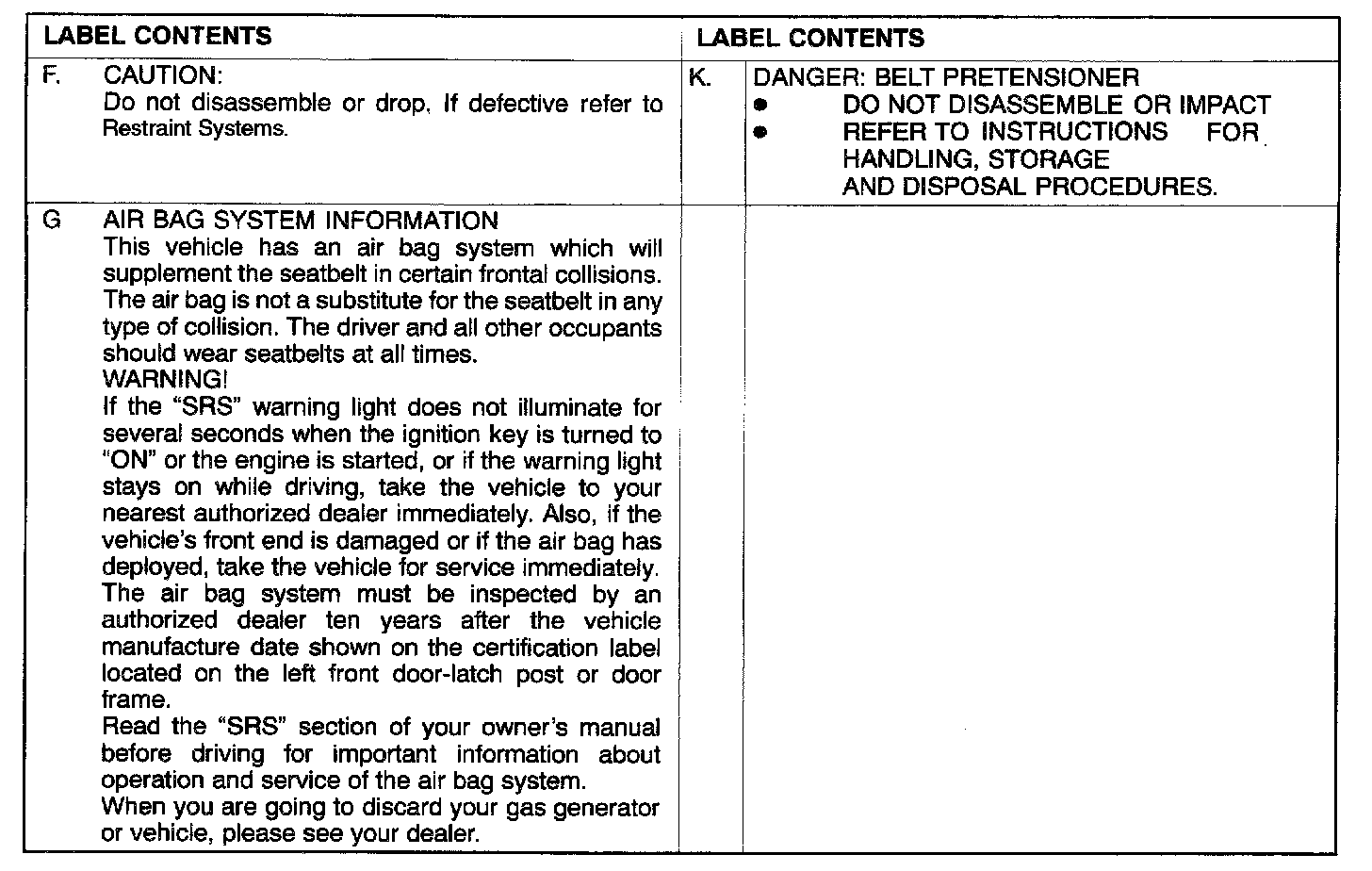

Label Contents Part 2:




WARNING/CAUTION LABELS

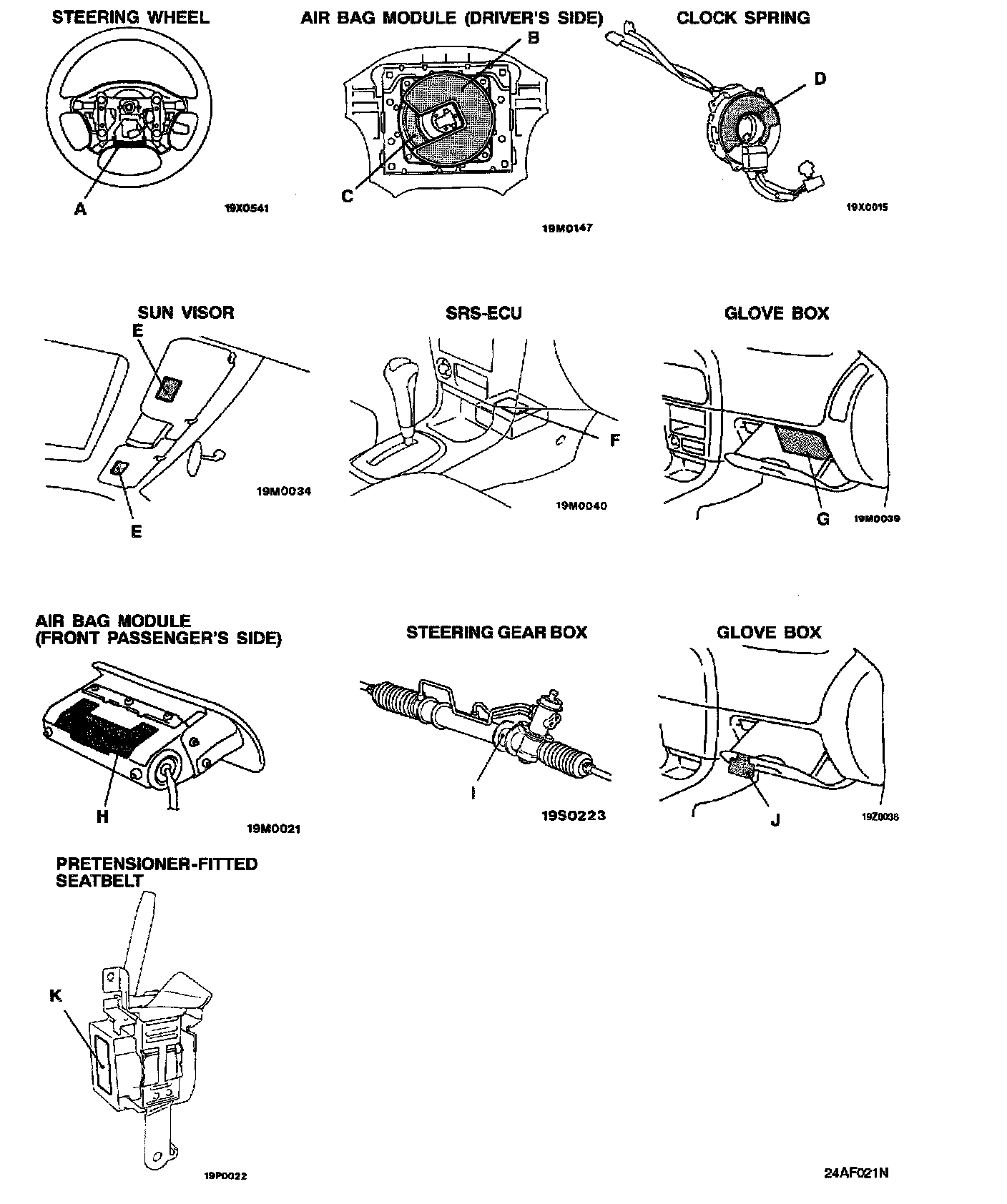

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustration.
Follow label instructions when servicing SRS. Label J is not to be removed except by the owner.
