Keyless Entry - Code Registration Method Correction

No.: TSB-02-42A-003
DATE: February, 2002
MODEL: 2001-02 Diamante

SUBJECT:
CORRECTED KEYLESS ENTRY CODE REGISTRATION METHOD - SERVICE MANUAL REVISION

PURPOSE

This bulletin contains corrections to the remote keyless entry (RKE) code registration method.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES
2001-02 Diamante

AFFECTED SERVICE MANUAL
2001 and 2002 Diamante Service Manuals, Volume 2, Page 42-67

SERVICE MANUAL REVISION

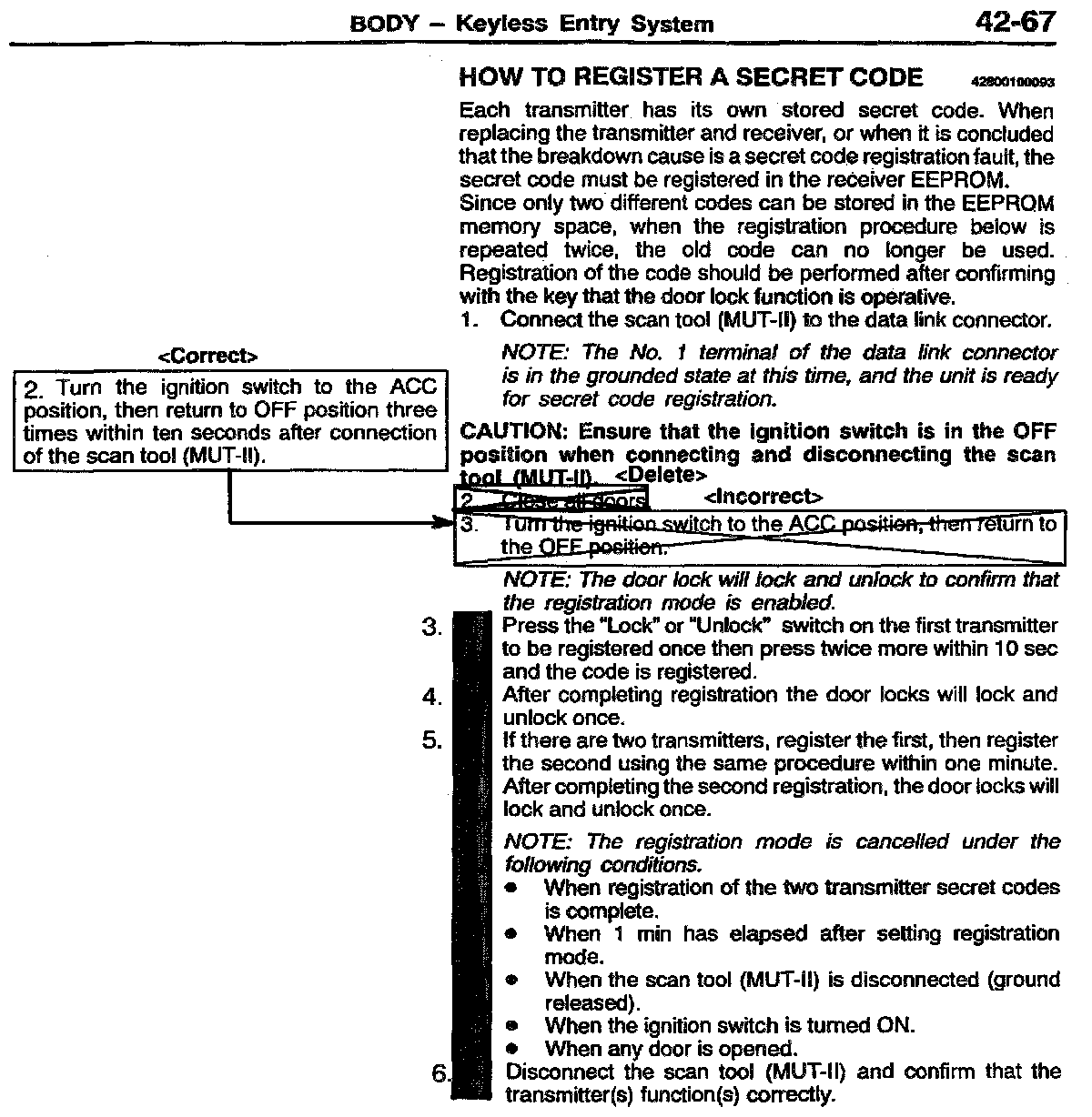

2001 and 2002 Diamante Service Manuals, Volume 2, Page 42-67 Correct the keyless entry code registration method as shown.
