Home >> Mitsubishi >> 2003 >> Eclipse L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Fluid Diagrams >> Automatic Transmission/Transaxle >> 3RD Gear

3RD Gear

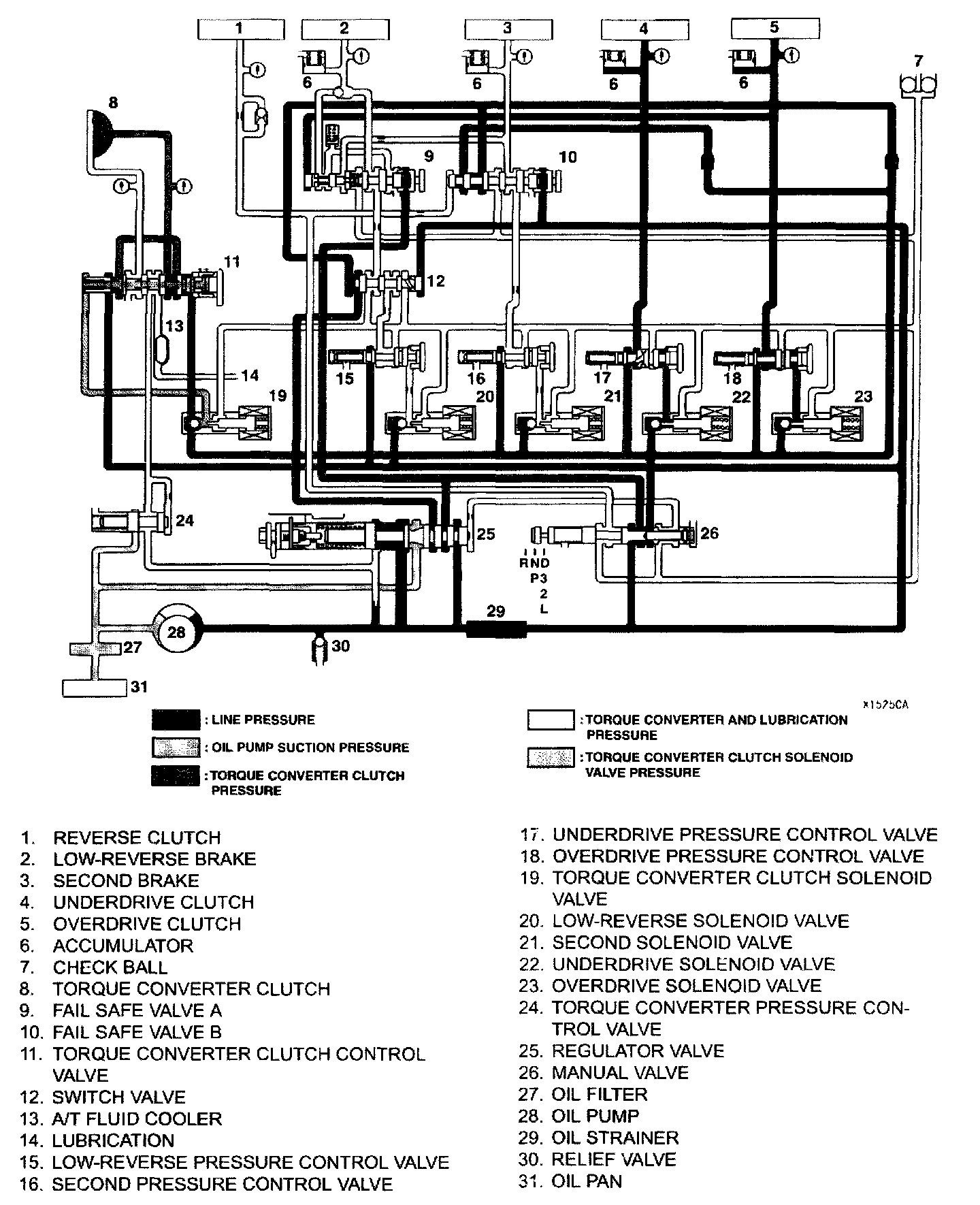

<4A/T> 3RD GEAR
