S028-S048 -- Engine and Transaxle

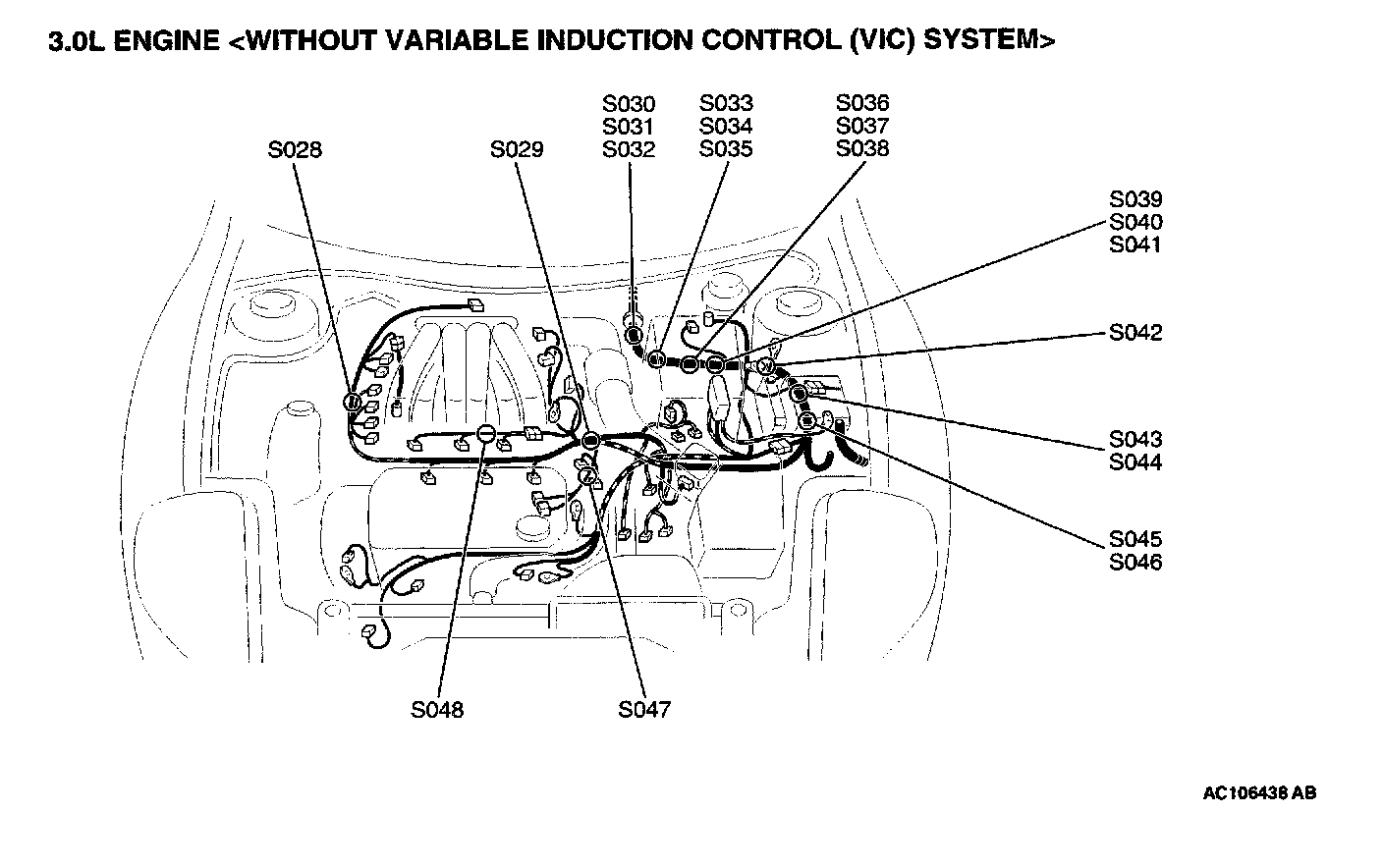

S028-S048 -- Engine And Transaxle:



S028-S048 -- Engine And Transaxle:
