Overhaul

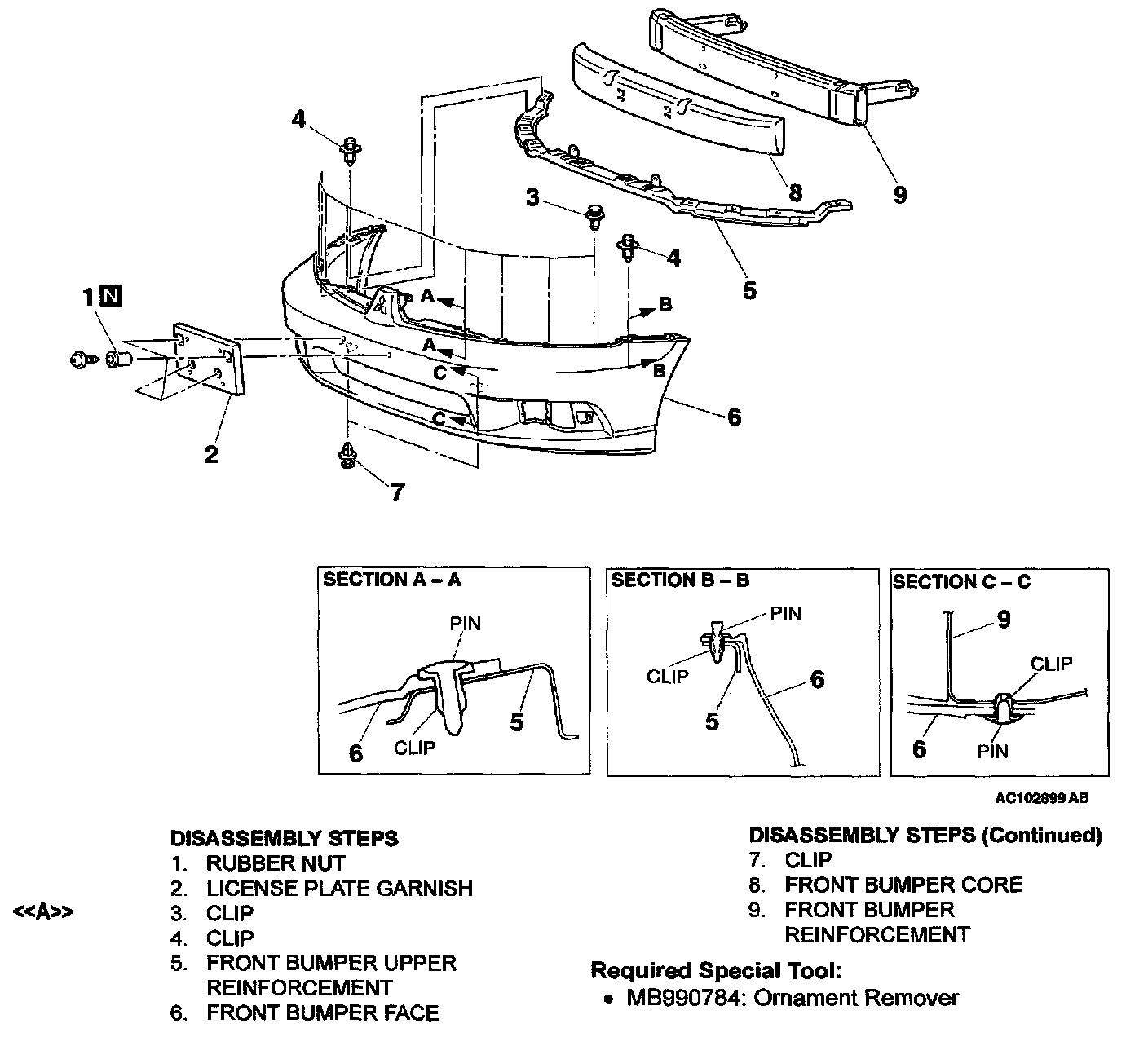

DISASSEMBLY SERVICE POINT




<> CLIP REMOVAL
1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
