Home >> Mitsubishi >> 2003 >> Galant L4-2.4L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Reverse and Overdrive Clutch

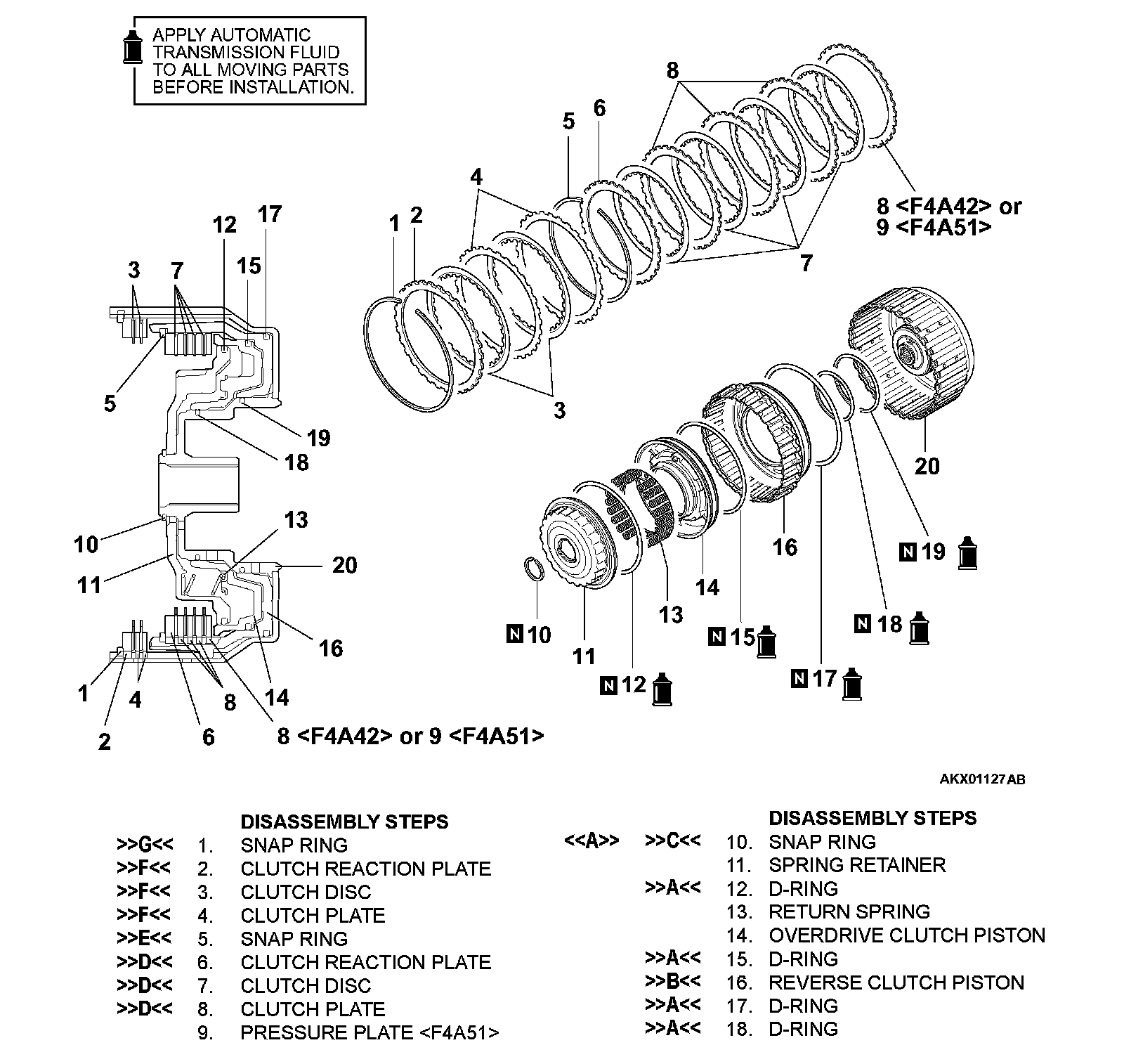

Reverse and Overdrive Clutch

Part 1 Of 2:




Part 2 Of 2:

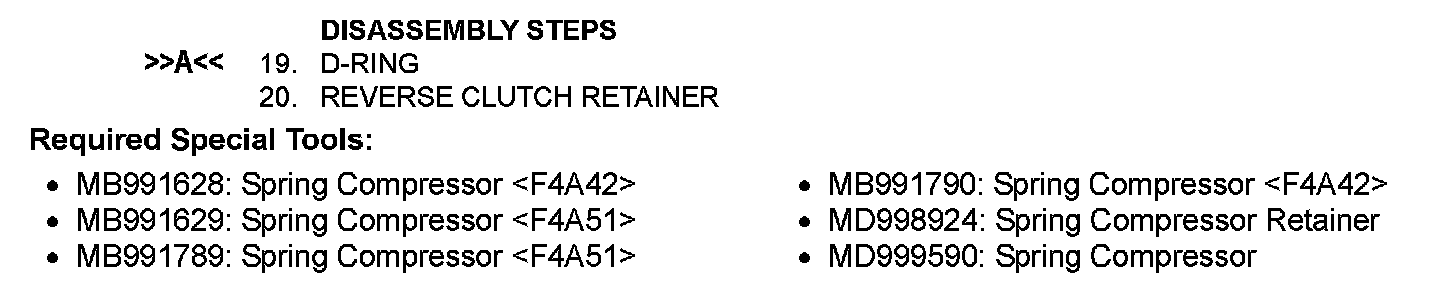

REVERSE AND OVERDRIVE CLUTCH OVERHAUL W/ RELATED COMPONENTS
